When the dishwasher door is opened, the trigger mechanism will “reset”. This ensures that the deter-
gent cover is opened first when the coil is next activated.
If moisture remains in the detergent box and if a de-
tergent tab is then put into the box, the tab will be-
gin to dissolve slowly.
Two plastic spacers in the box prevent detergent
from “sticking” onto the casing.

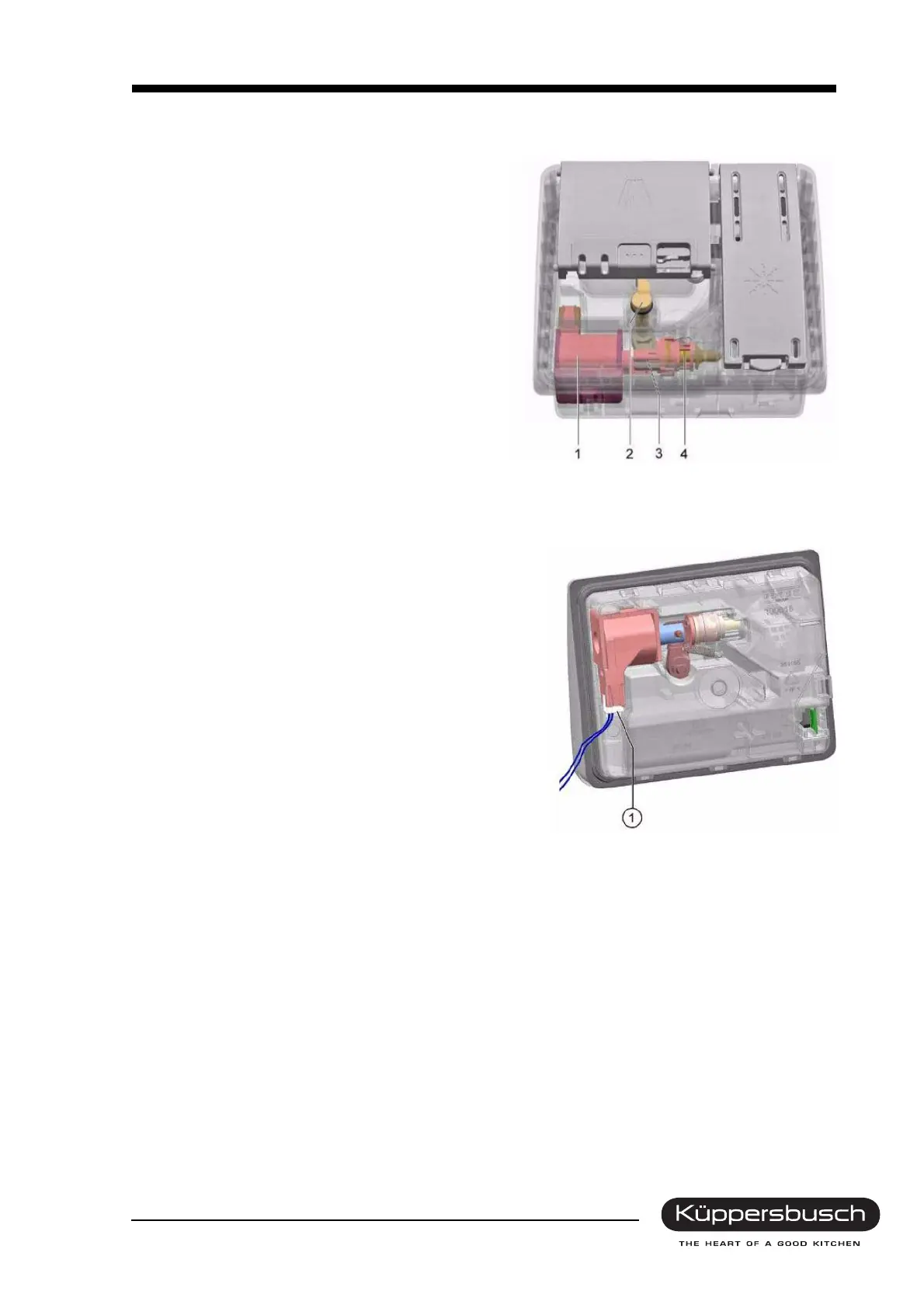

1Coil
2 Unlatching lever
3 Armature with a switching mechanism
4 Dosing pump
7.4.2 Checking the dispenser electrically
This is only possible if the outer door has been removed.
Measuring the coil
1. Disconnect the cable connection.
2. Measure the resistance on the coil.
Technical Data:
Coil pulse voltage: 195-254 V
Frequency: 50/60 Hz
Resistance: 11 k
Ω
± 1,5 k
Ω
Rinse aid fill quantity: 80 ml
Rinse aid quantity
for settings 1-6: 1 ml for each setting
