64 GV 640 Service Manual
For internal use only
7.2.1 Functioning
Leaks which occur in the region of the valve or the
supply hose are led into the base pan through the
leaking water hose.
A styrofoam float triggers a microswitch to activate
the electronic safety system. The coil of the
aquastop valve is deactivated by the electronics
unit and stops water from flowing into the dish-
washer.

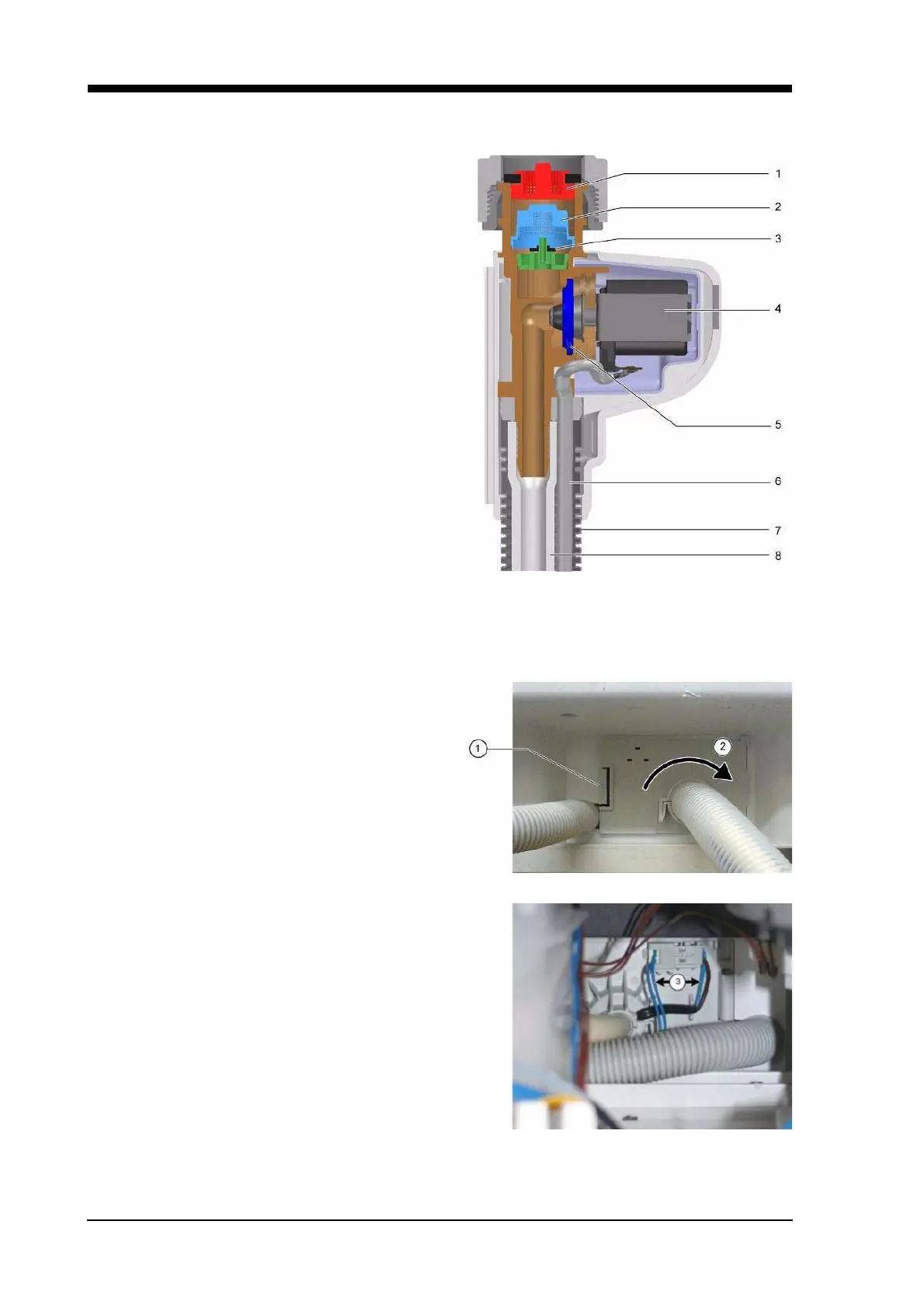

1 Coarse sieve
2 Fine sieve
3 Flow limiter
4Coil
5 Seal
6 Control pipe
7 Leaking water hose
8 Pressure hose water intake
7.2.2 Checking the aquastop valve electrically
1. Release the catch.
2. Fold the panel with the supply hose outwards.
3. Disconnect the plug connection and measure
the resistance.
Technical data
Nominal voltage 230-240 V
Frequency 50 / 60 Hz
Resistance 4.2 k
Ω ± 1 k Ω
