GV 640 Service Manual 47
For internal use only

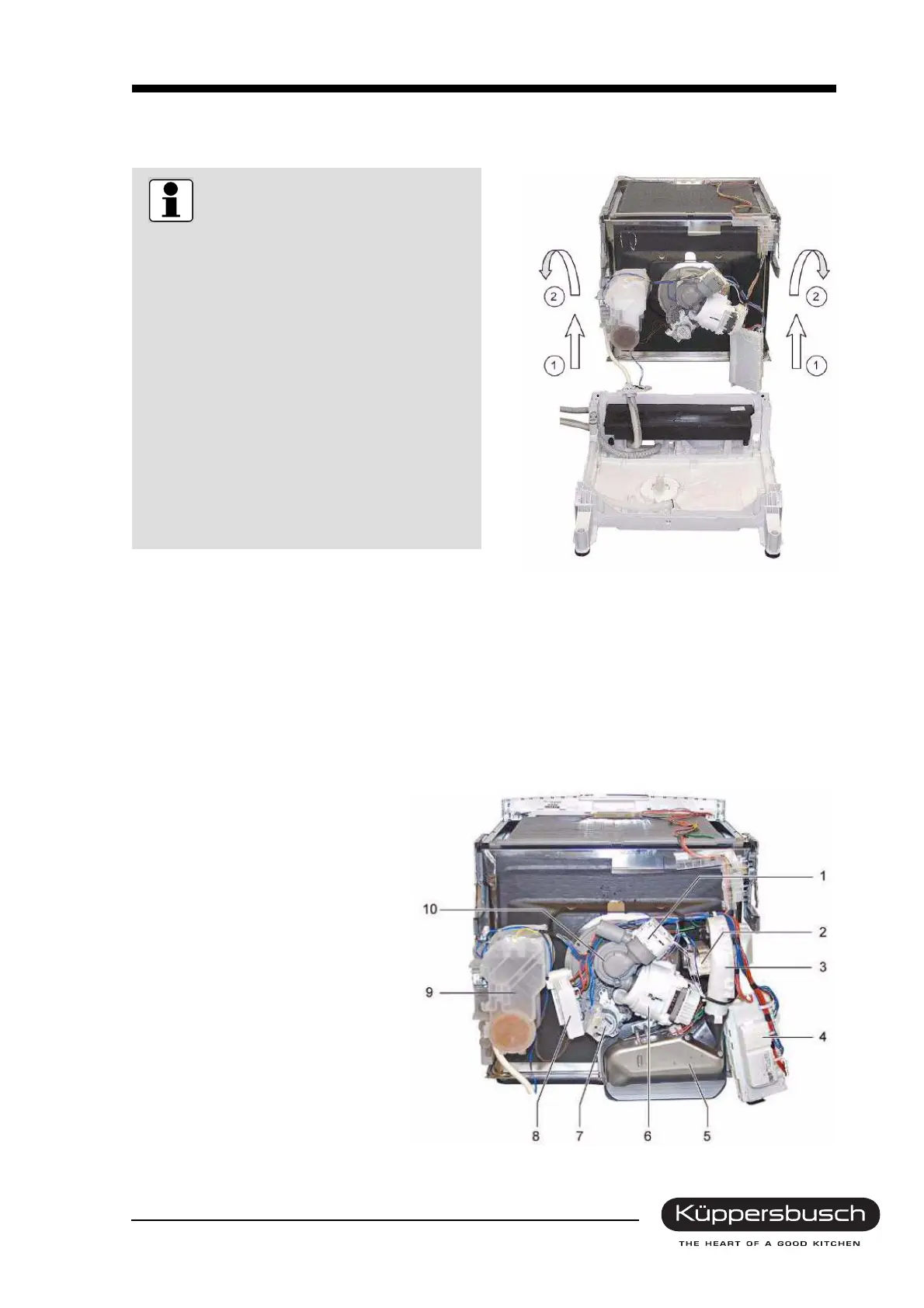

6.6 Opening up the rinsing cavity
1. Lift the rinsing cavity carefully up to the top.
2. Lay the rinsing cavity down towards the back.
When the appliance is lying on its back and the base pan removed, it must be ensured that the weight
does not fall out in the case of floor-mounted appliances.
Container components
In this condition the following components/assemblies that are fastened to the container can be re-
placed.
1. Discharge pump
2. Fan motor
3. Fan casing
4. Power module (not fastened to the
container)
5. Zeolite container
6. Heater pump
7. Water diverter with a motor and a
pulse generator
8. Zeolite heating auxiliary module
9. Water softening equipment
10. Pump cavity
Please note!
Close the salt box!
It is essential to check that the cover of
the salt box is screwed closed so that
no salt solution escapes when the con-
tainer is folded down!
Protect the supporting surface for the
rinsing cavity against scratches.
The container is firmly seated in the
guides and can only be removed with a
little force. The appliance can be laid
on its back and the base pan carefully
removed for easier handling.
For floor-mounted appliances it must
be ensured that the weight does not
drop out of the base pan.
