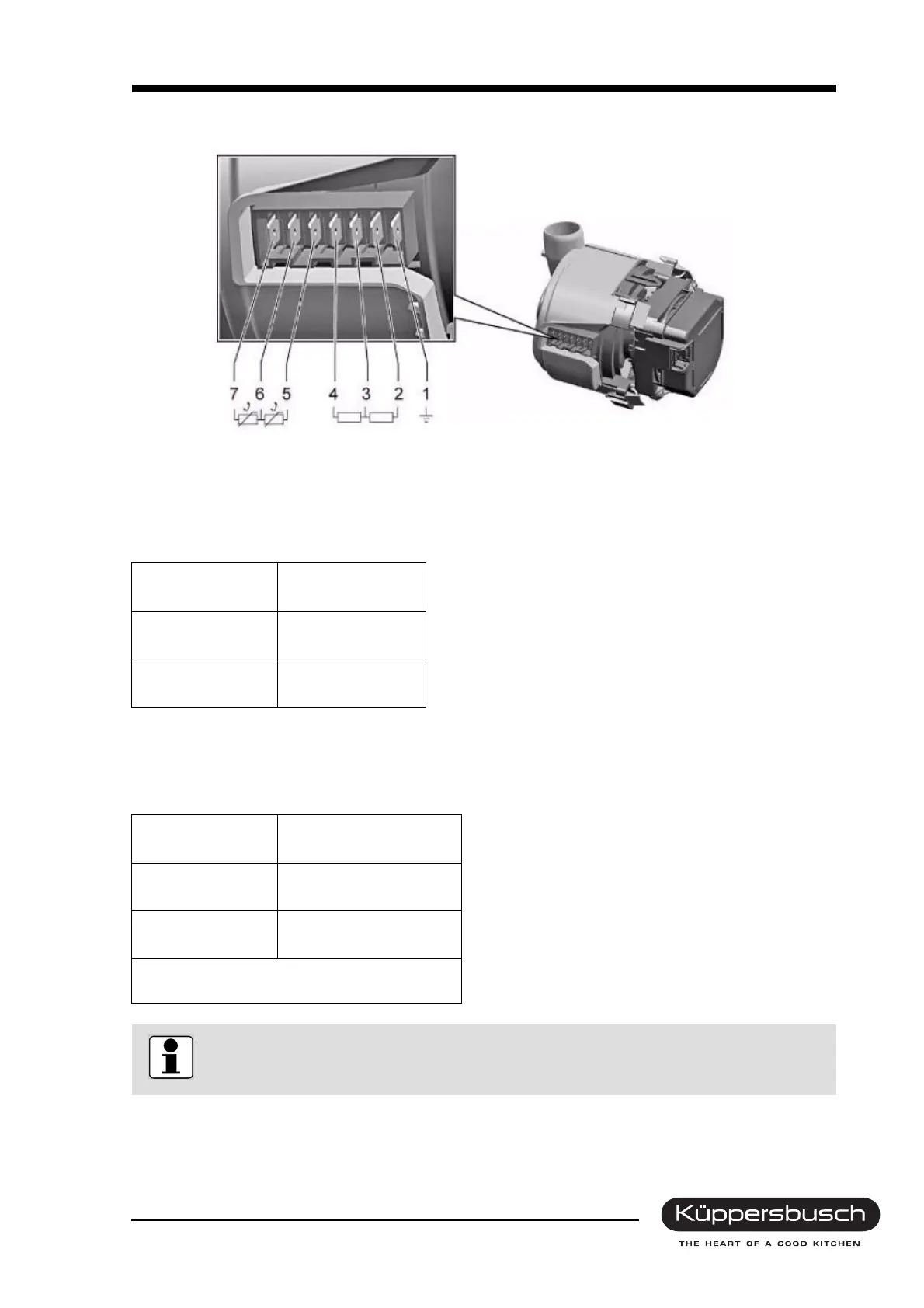

6.7.7 Checking the heater pump
Measuring the heater resistance
The heater resistance is measured on the heater contacts of the heater pump.
Readings for an intact heater:
Measuring NTC resistance
The NTC resistance is measured on the heater contacts of the heater pump.
Readings for intact NTCs and 25 °C.
Contact 2 - 3
about 10.5
Ω
Contact 3 - 4
about 10.5
Ω
Contact 2 - 4
approx. 21 ± 2
Ω
Contact 5 - 6
approx. 10 k
Ω ± 500 Ω
Contact 6 - 7
approx. 10 k
Ω ± 500 Ω
Contact 5 - 7
approx. 20
Ω
Measured at 25 °C
Resistance measurement of the NTCs
The NTC measurement must result in a symmetrical reading.
