84 GV 640 Service Manual
For internal use only

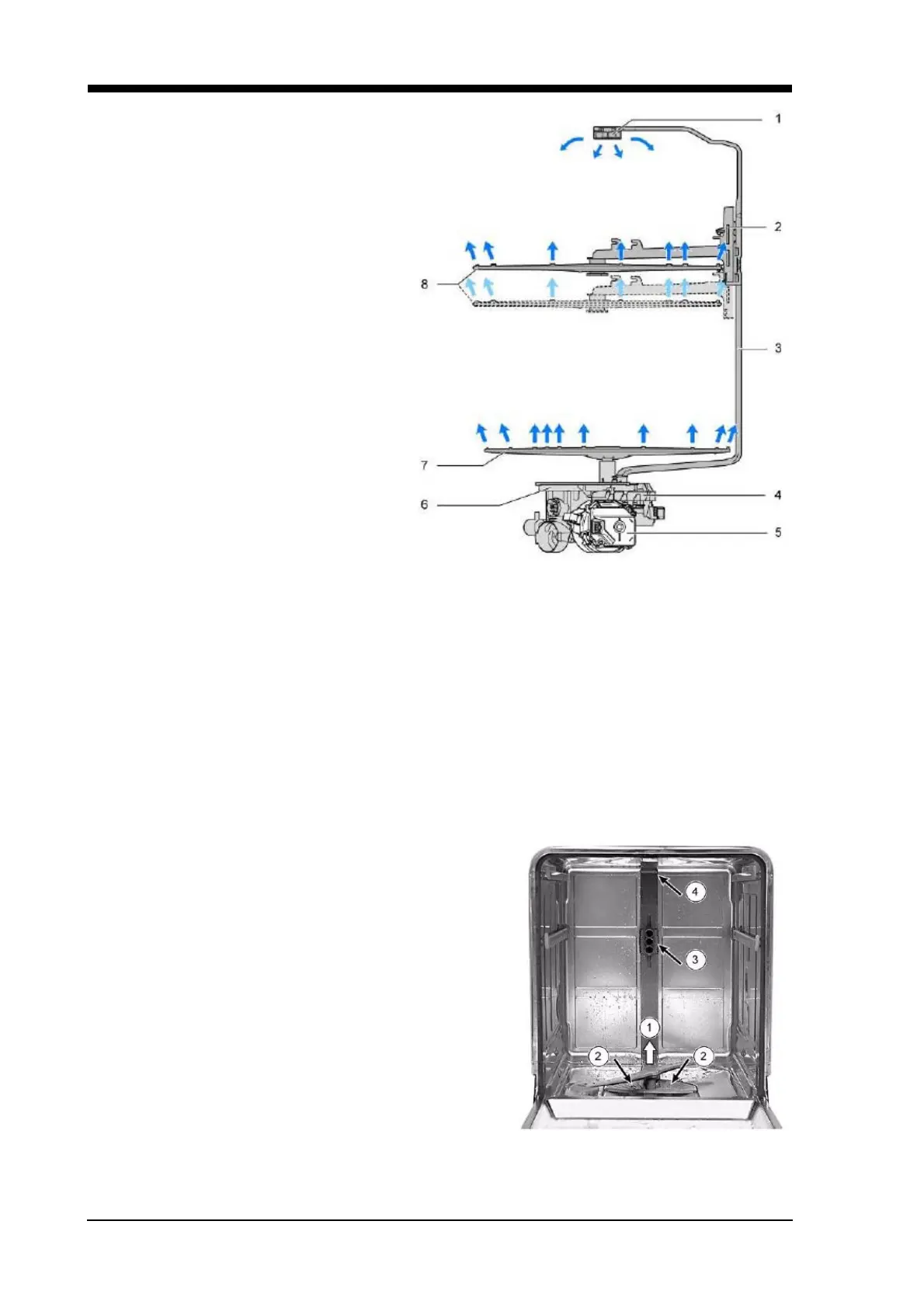

1 Ceiling spray / ceiling centrifugal arm
2 Top spray arm coupling
3 Feed pipe
4 Water diverter
5 Heater pump
6 Pump cavity
7 Bottom spray arm
8 Top spray arm
8.6 Feed pipe
The water supply to the top spray arm and the ceiling spray is brought through the inlet pipe attached to
the inside of the container rear wall. This pipe is connected to the pump cavity with a direct connection.
The water intake pipe has 2 separate water channels. This means that the top spray arm and the ceiling
spray can be separately activated.
When the top basket is pushed into the dishwasher, it engages onto the water intake pipe at the back to
make a water connection.
Replacing the feed pipe
Removing
1. With a slight jerk, pull the bottom spray arm
upwards off the feed pipe.
2. Screw off the two Torx screws on the pump
cavity.
3. Release the catches in the region of the
coupling point.
4. Carefully release the catches of the ceiling
centrifugal arm with a small longitudinal slot
screwdriver.
Installation
Installation is carried out in reverse order.
