24 GV 640 Service Manual
For internal use only

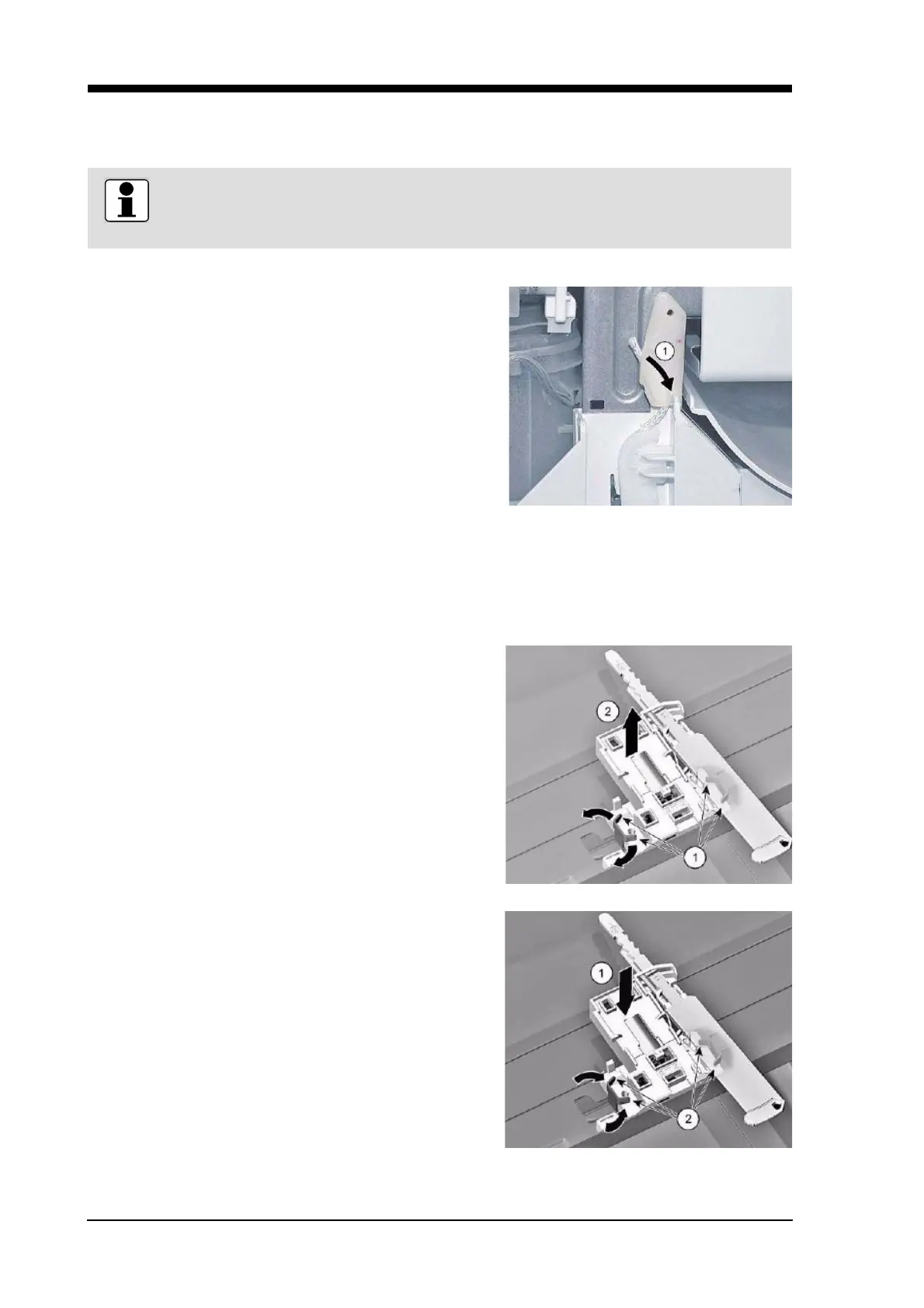

Installation
Instal the cable system as for removal.
1. Fasten the load cable holder into the slot on the
base pan.
The cable system will automatically engage into the
door lever.
5.4.3 Door lock
Replacing / resetting the door lock
In order to do this, the worktop will need to be removed or the appliance pulled out as far as the frame
of the rinsing cavity.
Removing
1. Straighten the metal clamps on the right and the left
of the door lock.
2. Remove the door lock towards the top.
Installation
1. Position the new door lock.
2. Bend the two metal clamps to the inside again to
fasten the door lock.
Resetting
The system will need to be unlocked again if the spring-
loaded latch is locked manually. To do so close the door
firmly.
You will need to overcome strong mechanical resist-
ance!
Please note concerning the load cable holder!
The load cable holder must be suspended exactly according to the illustration in order to
prevent friction with the base pan.
