6.4 Removing the power module

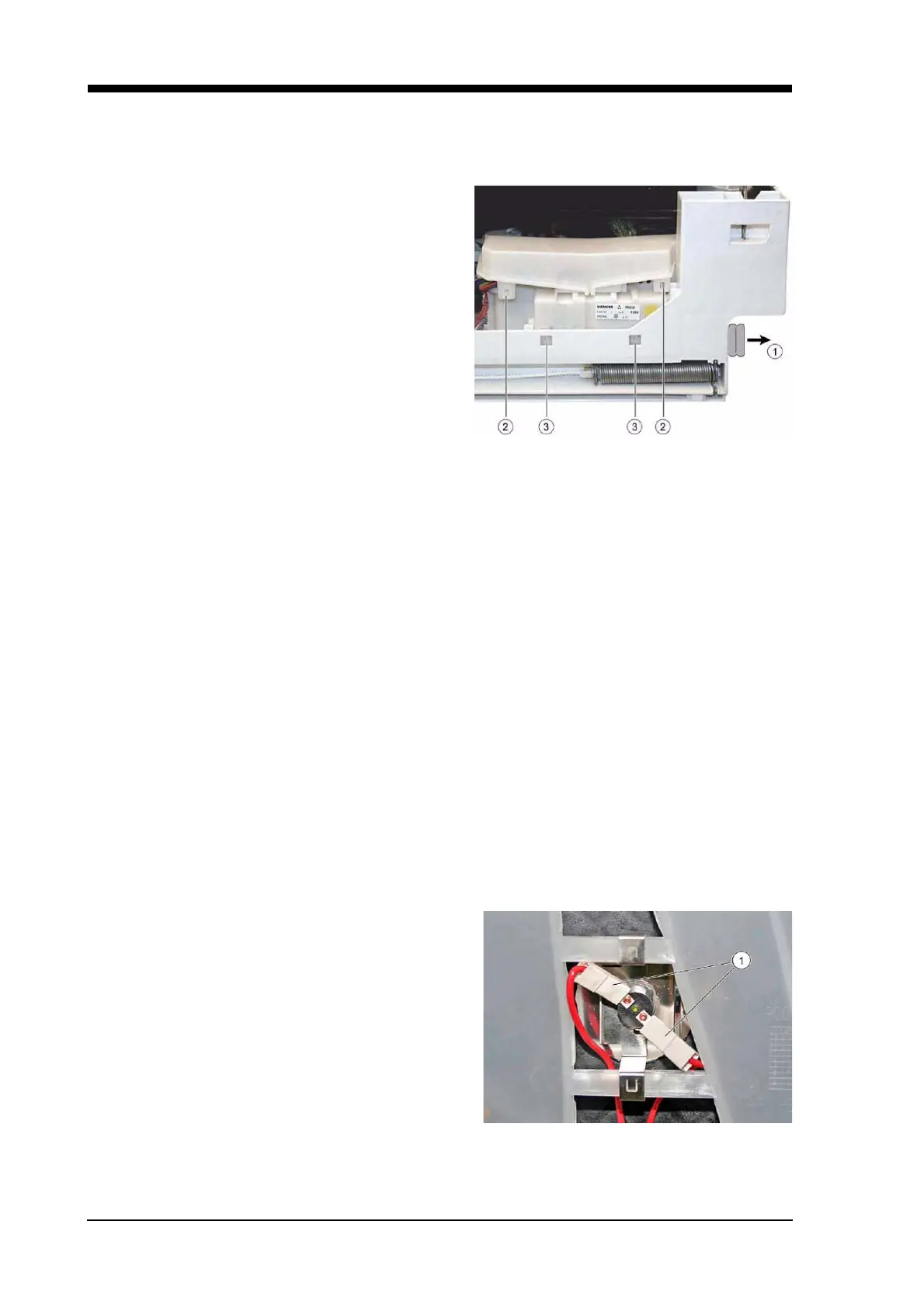

This is only possible if the right-hand side panel has been removed.
1. Disconnect the mains lead from the appli-
ance.
2. Release the catches on the splash guard
cover and disengage the cover to the back -
top.
3. Remove the catches and take out the module
towards the top.
4. Disconnect all the cable contact plugs of the
cable harness from the power module.
Assembly
Assembly is carried out in reverse order. The
power module must be heard when it engages
into the base pan.
Install the splash guard cover again.
The plugs are coded.
6.5 Opening the rinsing cavity
The rinsing cavity must be completely folded off the base pan for the following work to be carried out:
• replacing the water softening equipment
• replacing the pump cavity
• replacing the heater pump
• replacing the water diverter
provided that the worktop has been removed (optional)
the side panels have been removed
the outer door has been removed
the power module has been removed
6.5.1 Rinsing cavity Klixon
Disconnect the electrical connections on the
Klixon.
