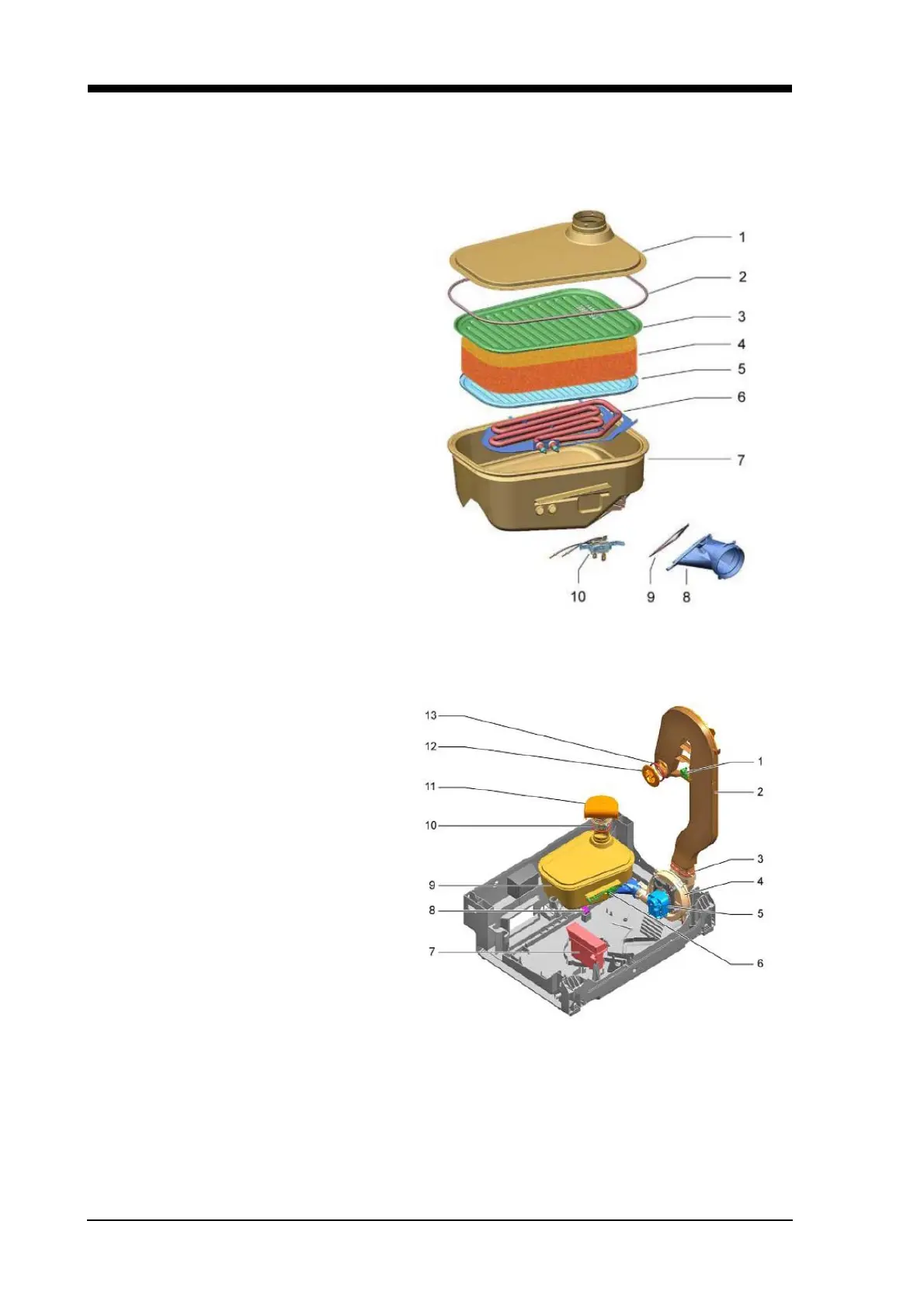

6.1 Zeolite drying system in the GV640
6.1.1 Zeolite container structure
1 Container lid (stainless steel)
2 Moulded seal
3 Cover screen
4 Zeolite granulate material
5 Bottom screen (stainless steel)
6 Tubular heating element with an air
baffle
7 Zeolite container (stainless steel)
8 Injection duct
9 Seal
10 Temperature switch and fuse
6.1.2 Full system structure
1 Thermal fuse – rinsing cavity
2 Intake duct
3 Intake duct sealing
4 Fan casing and fan
5 Fan motor
6 Thermal fuses
7 Zeolite heater additional electronic
unit
8 Zeolite container support clamp
9 Zeolite container
10 Seal
11 Blow-out cap
12 Intake duct cover
