30 GV 640 Service Manual
For internal use only

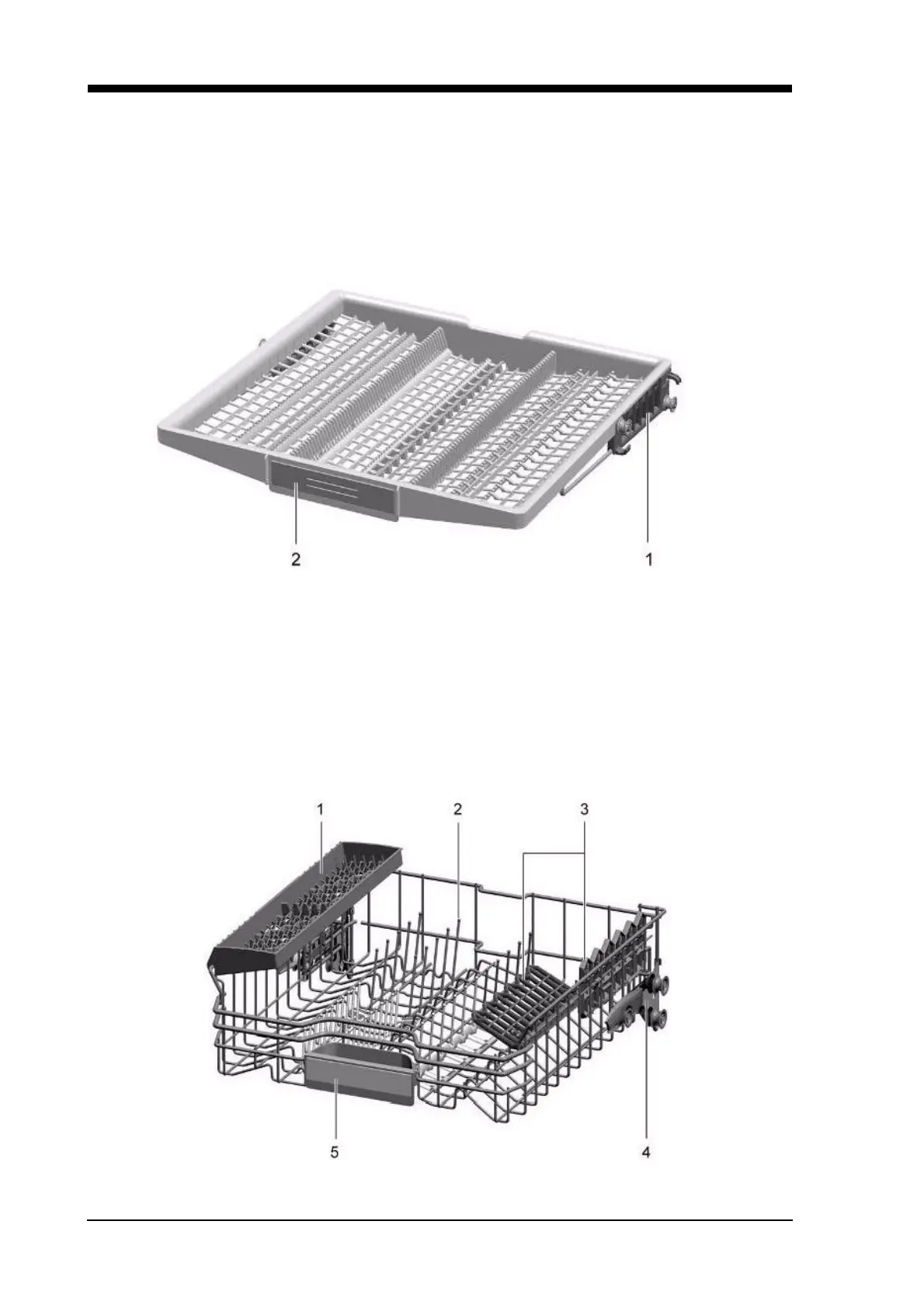

5.8.1 Cutlery drawer
The cutlery drawer is located right at the top of the rinsing cavity. It holds cutlery, other cooking utensils
and espresso cups. The dishes to be washed are mainly rinsed with the ceiling centrifugal arm. See the
spray system.
1 Glide-out platter
2 Basket handle
5.8.2 Top basket
The glide-out top basket is loaded with small plates, glasses and cups. The dishes are rinsed with a
spray arm located below the top basket. When the top basket is pushed into the dishwasher, it engages
onto the water intake pipe at the back to make a water connection (see spray system).
1 Knife holder 3 Divided, foldable rack
2 Fold-down spikes 4 Rackmatic platter
5 Basket handle
