5.5.4 Motor connection
Note!
ƒ Fusing the motor cable is not required.
ƒ The drive controller features 2 connections for motor
temperature monitoring:
– Terminals T1, T2 for connecting a PTC thermistor or thermal
contact (NC contact).
– Pins X8/5 and X8/8 of the incremental encoder input (X8) for
connecting a KTY thermal sensor.
Stop!
Do not use lugs as strain relief.
PE
T1
T2
U
VW
a
3.4Nm
30 lb-in
a
0
9300vec131

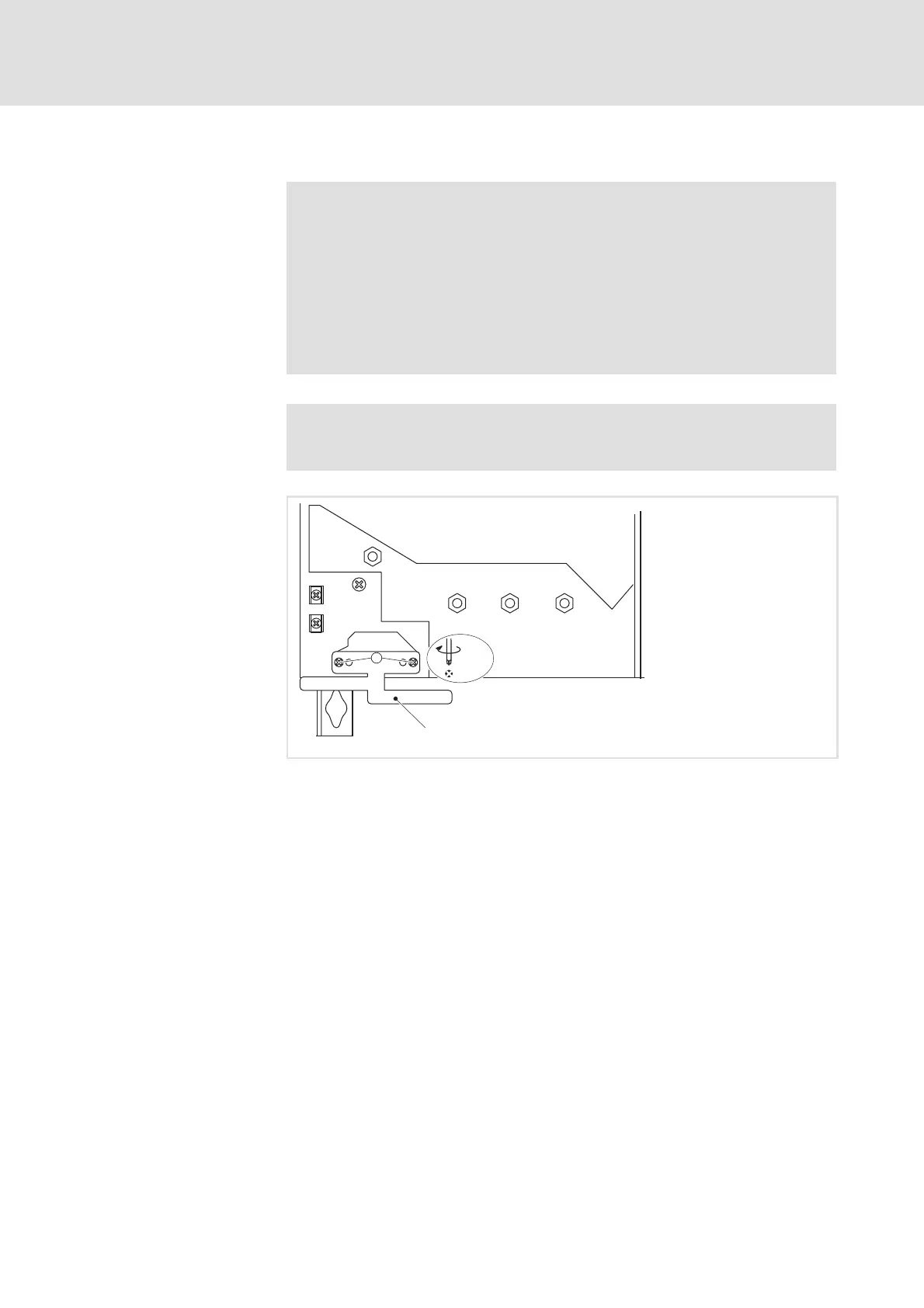

Fig. 5.5-3 Installation of shield sheet for drive controllers 15 ... 30 kW
Fasten the shield sheet with two self-tapping screws ∅ 4×14mm(a)
Shield sheet installation
