Lexmark MS725 Service Manual

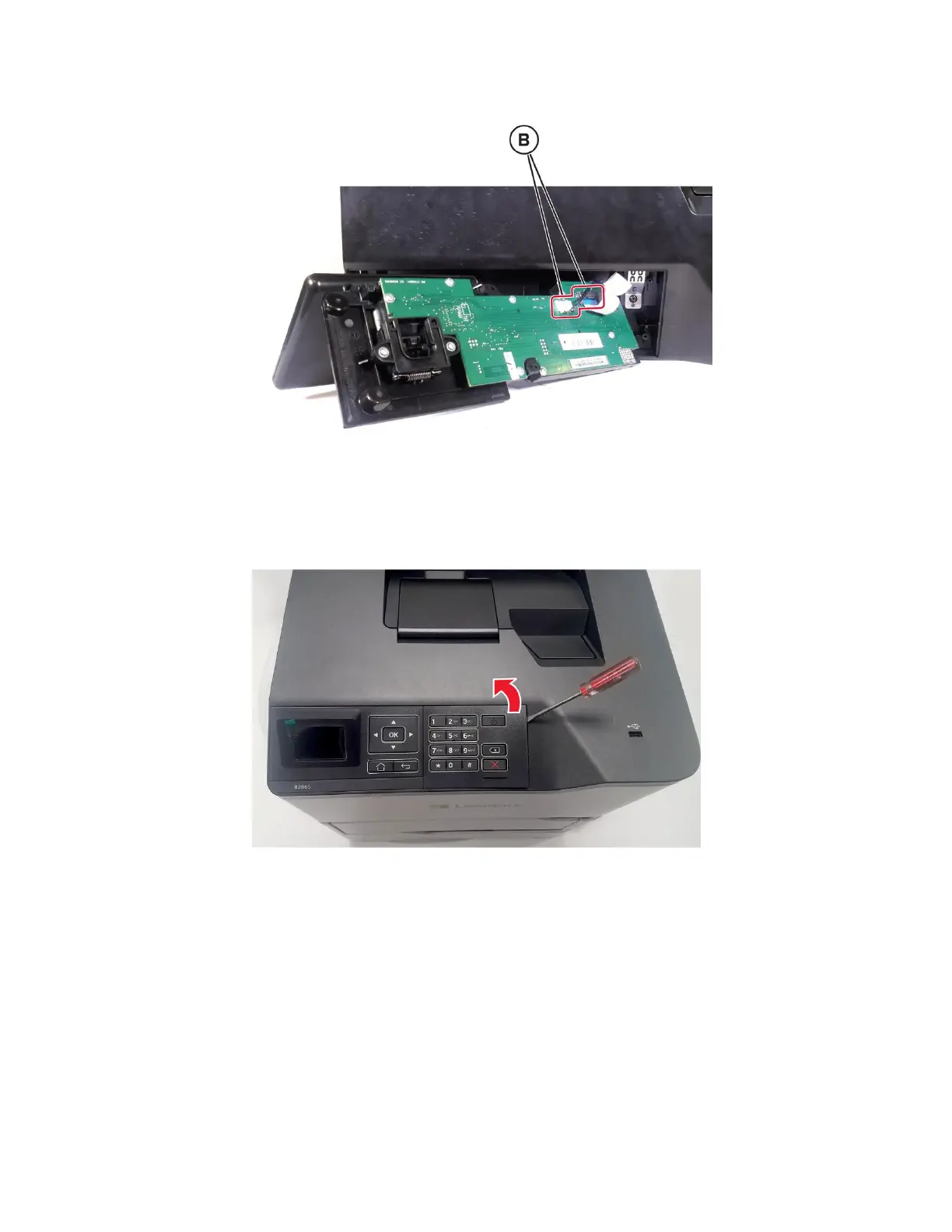

4 Disconnect the two cables (B), and then remove the control panel.
Control panel (2.4‑inch) cover removal
Pry the cover to release, and then remove it.
Control panel (2.4-inch) board and display removal
Critical information for controller board or control panel replacement
Warning—Potential Damage: Replace only one of the following components at a time:
• Control panel
• Controller board
4064
Parts removal
444
