Matrix ETERNITY ME User Manual

Matrix ETERNITY Quick Start 103

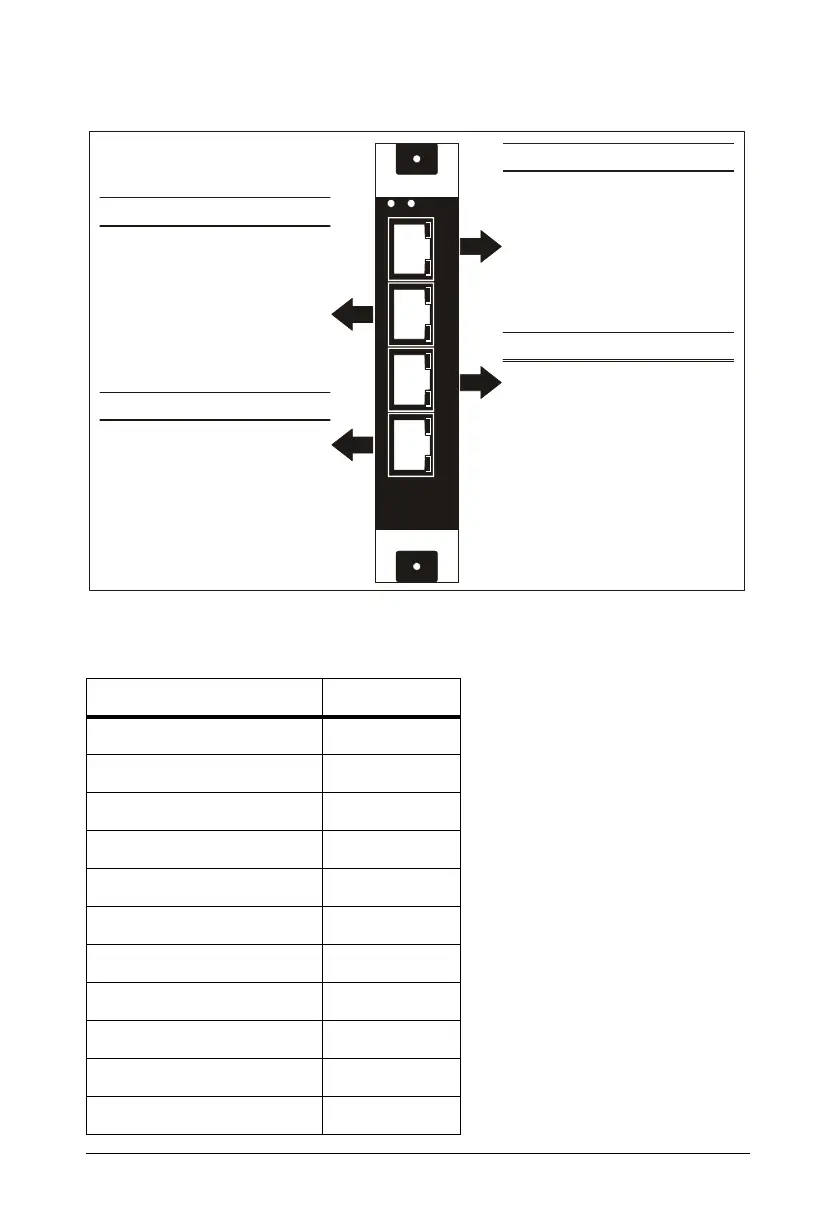

ETERNITY ME E&M4 - RJ45 Connector
ETERNITY ME E&M4 - Amphenol Connector
Port Color
E&M01-M, SB Blue-White
E&M01-E, SG Orange-White
E&M01-SP(RxA), SP(RxB) Green-White
E&M01-SP(A), SP(B) Brown-White
E&M01-02 CCS Grey-White
E&M02-M, SB Blue-Red
E&M02-E, SG Orange-Red
E&M02-SP(RxA), SP(RxB) Green-Red
E&M02-SP(A), SP(B) Brown-Red
E&M03-M, SB Grey-Red
E&M03-E, SG Blue-Black
L1 L2
1
2
3
4
RJ45-1
RJ45-3
1Open Gray 03
2 SB3 Green-White
3M1 OUT Green
4 RX3 SPCH A Orange-White
5 SPCH3 A Blue
6 SPCH3 B Blue-White
7 RX3 SPCH B Orange
8 E3 IN Brown-White
9BGND Brown
10 CCC3 Gray-White
Pin Connection Colour H/w Port
No. Offset
1Open Gray 01
2 SB1 Green-White
3M1 OUT Green
4 RX1 SPCH A Orange-White
5 SPCH1 A Blue
6 SPCH1 B Blue-White
7 RX1 SPCH B Orange
8 E1 IN Brown-White
9BGND Brown
10 CCC1 Gray-White
Pin Connection Colour H/w Port
No. Offset
RJ45-2
RJ45-4
1Open Gray 02
2 SB2 Green-White
3M2 OUT Green
4 RX2 SPCH A Orange-White
5SPCH2 A Blue
6 SPCH2 B Blue-White
7 RX2 SPCH B Orange
8 E2 IN Brown-White
9BGND Brown
10 CCC2 Gray-White
Pin Connection Colour H/w Port
No. Offset
1Open Gray 04
2 SB4 Green-White
3M4 OUT Green
4 RX4 SPCH A Orange-White
5SPCH4 A Blue
6 SPCH4 B Blue-White
7 RX4 SPCH B Orange
8 E4 IN Brown-White
9BGND Brown
10 CCC4 Gray-White
Pin Connection Colour H/w Port
No. Offset

Matrix ETERNITY ME Specifications

General

Brand	Matrix
Model	ETERNITY ME
Category	PBX
Language	English
