Matrix ETERNITY Quick Start 19
VoIP Card connected to the Public and Private Network for Matrix
Extended IP phones
• Unpack VoIP Card.
• Insert VoIP Card in any free universal slot and secure it in its slot, and secure
the card in its slot.
If connecting to the Public Internet Network,
• Plug one end of the Ethernet cable supplied with the VoIP card into the WAN
Port of the VoIP Card and the other end into the Router/Modem.
If connecting to a Private Network,
• Plug one end of the Ethernet cable supplied with the card into the WAN Port of
the card and the other end into the LAN Switch/Hub.

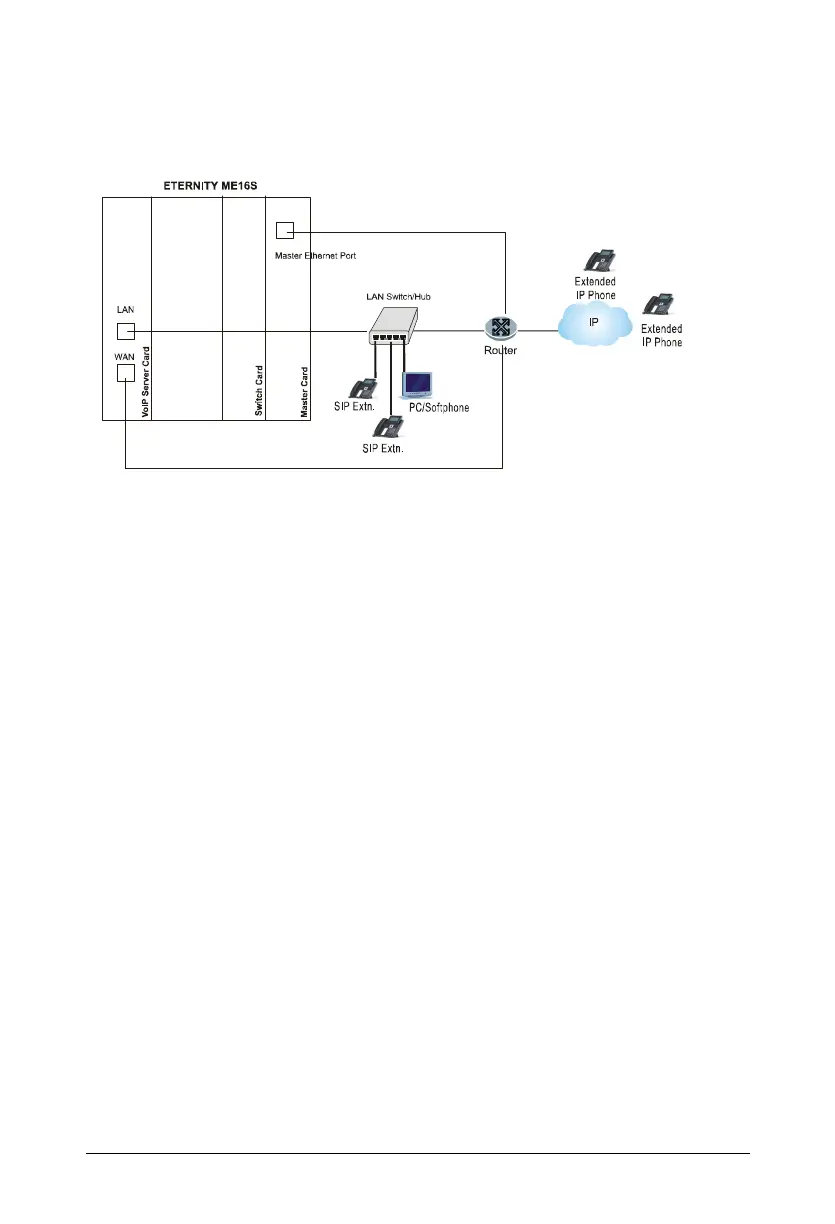

If connecting to the Public Network for registering Extended IP Phones,
• Plug one end of the Ethernet cable supplied with the VoIP card into the WAN
Port of the VoIP Card and the other end of the cable into the Router/Modem.
• Connect the LAN Port of the VoIP Card to the LAN Switch/Hub.
• Connect the Master Ethernet Port of the ETERNITY to the Router/Modem.
If you have completed installation of the system, switch on power supply and
observe the LED indication during Reset Cycle.
