Matrix ETERNITY ME User Manual

24 Matrix ETERNITY Quick Start
If the ETERNITY Master/CPU Card and VoIP Card are connected to a Private
Network (Behind the NAT),
• Connect SETU VP248, the Extended IP Phone, or any standard IP Phone to the
LAN Switch.
• You may also register any SIP device (Extended IP Phone or open SIP phone)
on the public network as SIP Extension.
• When you register the Matrix Extended IP Phone with ETERNITY, configure
Port Forwarding for Master Ethernet Port of ETERNITY and the WAN port of
the VoIP Card on the Router.
• The Master Ethernet Port is used for Auto Configuration of the Extended IP
Phones.
Connecting SETU VP248 as Extended SIP Extension
You are recommended to complete the following steps before connecting the Matrix
Extended IP Phone to ETERNITY:
• Decide the location of the Extended IP Phone, whether within the same network
or outside, according to your installation scenario.

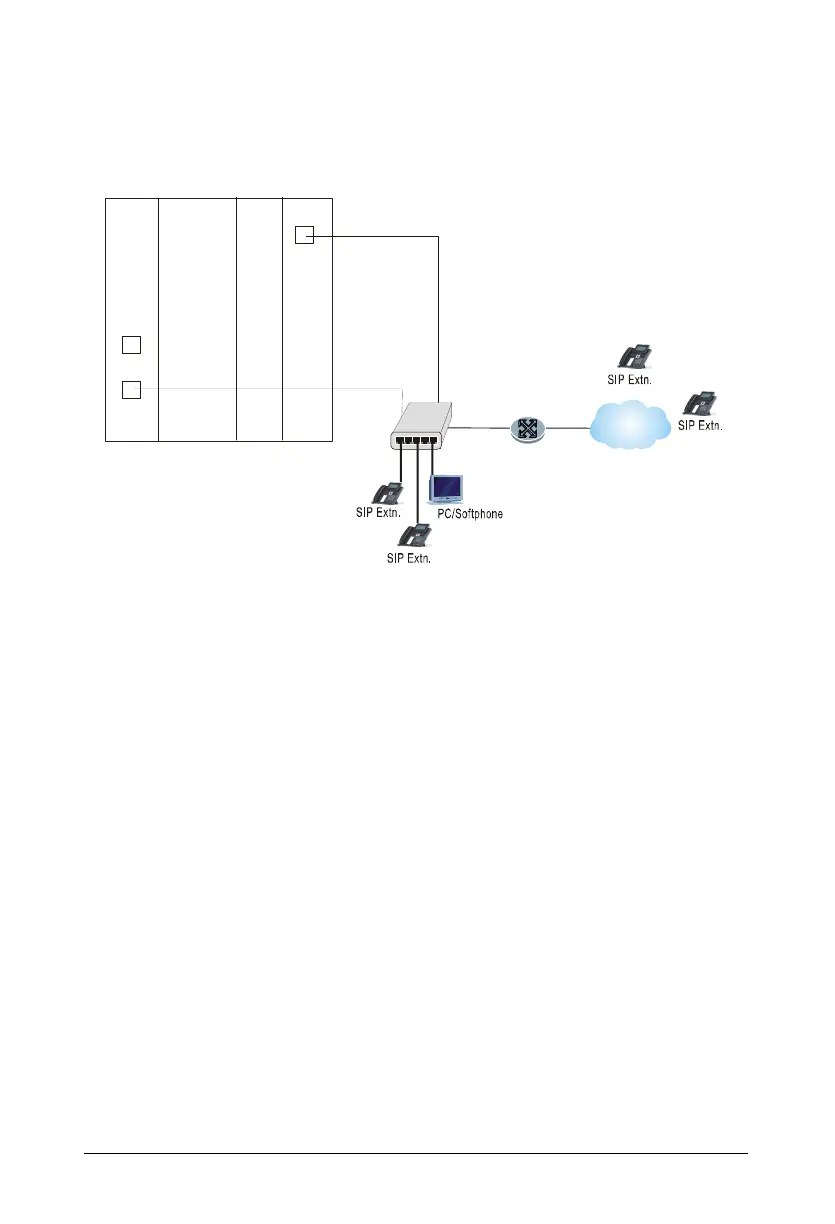

Router
IP
IP
LAN Switch/Hub
Master Ethernet Port
WAN
LAN
M
a
s
t
e
r
C
a
r
d
S
w
i
t
c
h
C
a
r
d
V
o
I
P
S
e
r
v
e
r
C
a
r
d
ETERNITY ME16S
