Matrix ETERNITY Quick Start 107

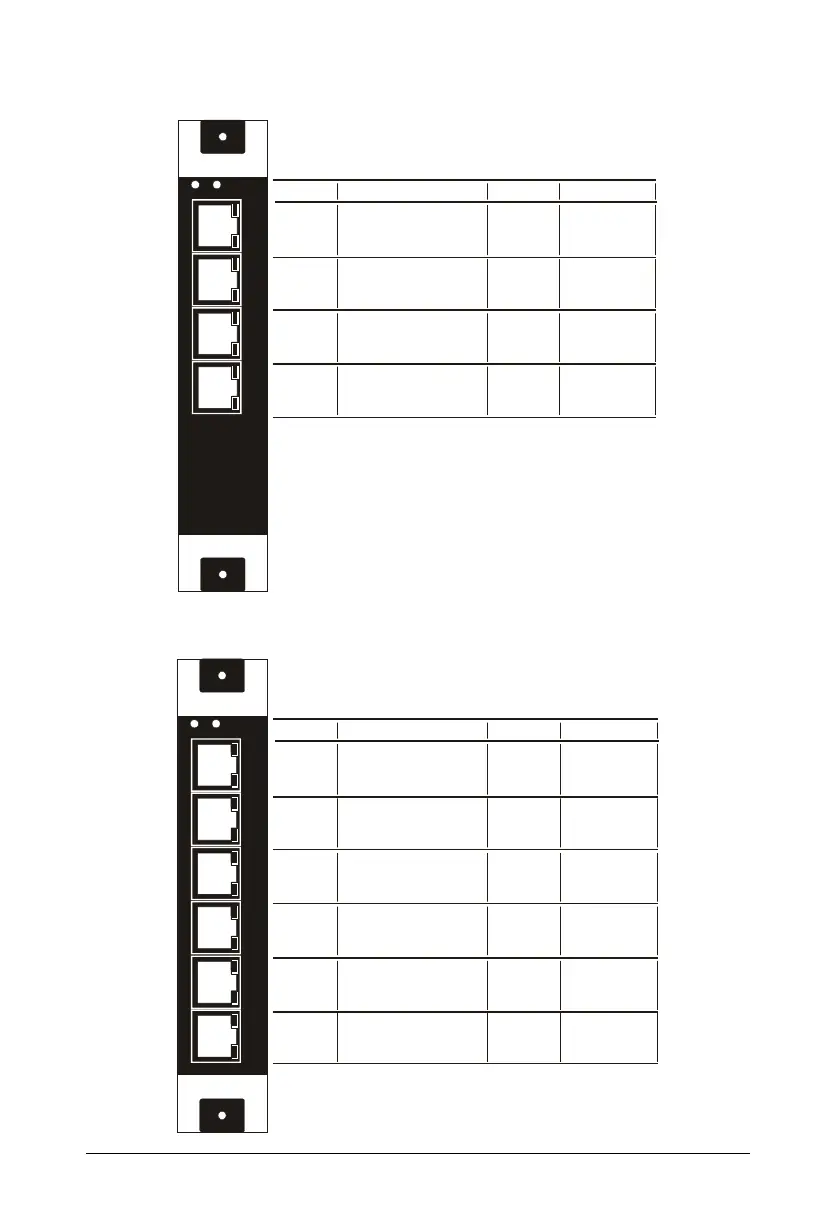

ETERNITY GE DKP16
ETERNITY GE DKP4 + SLT16
Connector Color Connection H/w Port Offset
RJ45-1 Blue - (Blue & White) DKP 01
(Blue) Orange - (Orange & White) DKP 02
Green - (Green & White) DKP 03
Brown - (Brown & White) DKP 04
RJ45-2 Blue - (Blue & White) DKP 05
(Orange) Orange - (Orange & White) DKP 06
Green - (Green & White) DKP 07
Brown - (Brown & White) DKP 08
RJ45-3 Blue - (Blue & White) DKP 09
(Green) Orange - (Orange & White) DKP 10
Green - (Green & White) DKP 11
Brown - (Brown & White) DKP 12
RJ45-4 Blue - (Blue & White) DKP 13
(Brown) Orange - (Orange & White) DKP 14
Green - (Green & White) DKP 15
Brown - (Brown & White) DKP 16
L1 L2
1
2
3
4
Connector Color Connection H/w Port Offset
RJ45-1 Blue - (Blue & White) SLT 01
(Blue) Orange - (Orange & White) SLT 02
Green - (Green & White) SLT 03
Brown - (Brown & White) SLT 04
RJ45-2 Blue - (Blue & White) SLT 05
(Orange) Orange - (Orange & White) SLT 06
Green - (Green & White) SLT 07
Brown - (Brown & White) SLT 08
RJ45-3 Blue - (Blue & White) SLT 09
(Green) Orange - (Orange & White) SLT 10
Green - (Green & White) SLT 11
Brown - (Brown & White) SLT 12
RJ45-4 Blue - (Blue & White) SLT 13
(Brown) Orange - (Orange & White) SLT 14
Green - (Green & White) SLT 15
Brown - (Brown & White) SLT 16
RJ45-5
Blue - (Blue & White) DKP 01
(Gray) Orange - (Orange & White) DKP 02
RJ45-6 Blue - (Blue & White) DKP 03
(Red) Orange - (Orange & White) DKP 04
L1 L2
1
2
3
4
5
6
