38 Matrix ETERNITY Quick Start
•Select SIP CoS and define the CoS (priority) bits in all SIP packets. Valid
range: 0-7. Default: 3
•Select RTP CoS and define the CoS (priority) bits in all RTP packets. Valid
range: 0-7. Default: 6.
•Select PC/VLAN CoS to add VLAN header to all packets entering the PC
Port and leaving the LAN port of the phone. Default: Disabled.
• To configure PC VLAN/COS, select Enable?.
•Select VLAN ID and enter the same ID as you have assigned to the
VLAN in which the computers are connected. Valid range: 0-4094.
Default: 1.
•Select CoS and define the Layer 2 CoS (priority) bits. Valid range: 0-7.
Default: 0.
PCAP
To capture packets sent and received from and by the phone for monitoring
and troubleshooting, you can enable PCAP on the phone. The phone captures
up to 2 MB of packets. For more information and for instructions on how to use
PCAP Trace on the phone, see the topic ‘Using PCAP Trace for the Matrix
Extended IP Phone’, under PCAP Trace in the System Manual.
When you change the Network Settings, the phone will restart.
Viewing Network Status
• In the Local Menu of the phone, place the cursor on Network Status and press
the Enter key.
• The Network Status submenu appears.

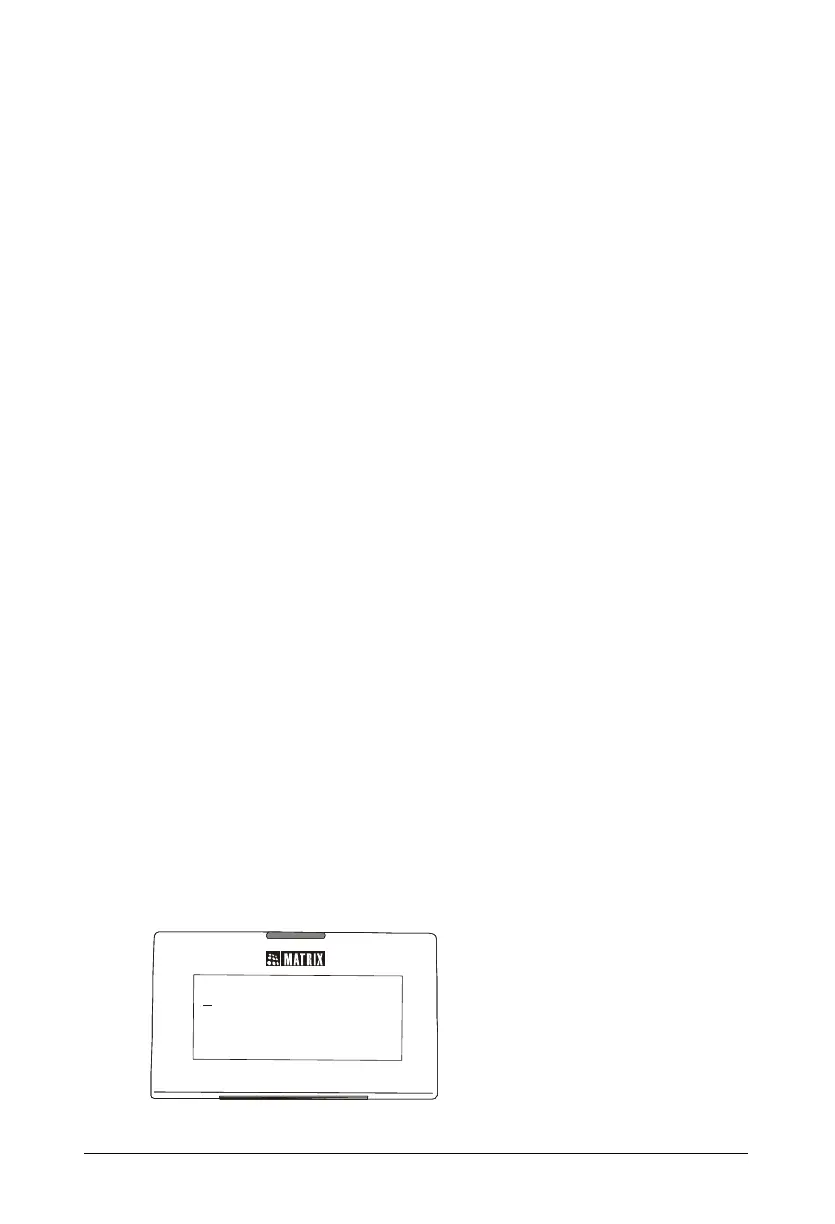

NET WORK STATUS
M A C : 0 0: 1 b: 0 9: 0 0: 9 a: a 7
I P : 1 92 . 16 8. 2 01 .2 05
MASK: 255.255.255.0
G W : 19 2. 16 8. 2 01 . 3
D N S:
