Matrix ETERNITY ME User Manual

106 Matrix ETERNITY Quick Start

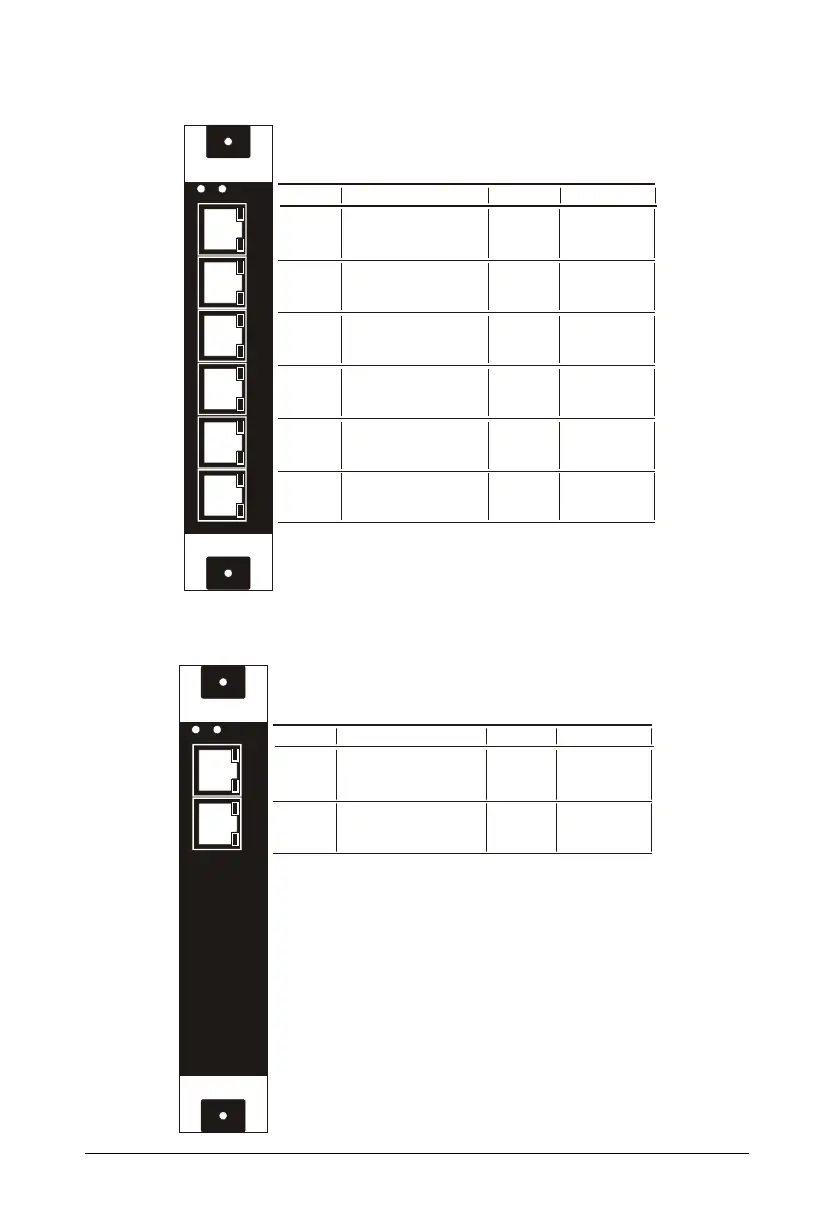

ETERNITY GE SLT20 / ETERNITY GE ILC20
ETERNITY GE DKP8
Connector Color Connection H/w Port Offset
RJ45-1 Blue - (Blue & White) SLT 01
(Blue) Orange - (Orange & White) SLT 02
Green - (Green & White) SLT 03
Brown - (Brown & White) SLT 04
RJ45-1 Blue - (Blue & White) SLT 05
(Orange) Orange - (Orange & White) SLT 06
Green - (Green & White) SLT 07
Brown - (Brown & White) SLT 08
RJ45-1 Blue - (Blue & White) SLT 09
(Green) Orange - (Orange & White) SLT 10
Green - (Green & White) SLT 11
Brown - (Brown & White) SLT 12
RJ45-1 Blue - (Blue & White) SLT 13
(Brown) Orange - (Orange & White) SLT 14
Green - (Green & White) SLT 15
Brown - (Brown & White) SLT 16
RJ45-1
Blue - (Blue & White) SLT 17
(Blue) Orange - (Orange & White) SLT 18
RJ45-1 Blue - (Blue & White) SLT 19
(Orange) Orange - (Orange & White) SLT 20
L1 L2
1
2
3
4
5
6
Connector Color Connection H/w Port Offset
RJ45-1 Blue - (Blue & White) DKP 01
(Blue) Orange - (Orange & White) DKP 02
Green - (Green & White) DKP 03
Brown - (Brown & White) DKP 04
RJ45-2 Blue - (Blue & White) DKP 05
(Orange) Orange - (Orange & White) DKP 06
Green - (Green & White) DKP 07
Brown - (Brown & White) DKP 08
L1 L2
1
2
