Matrix ETERNITY ME User Manual

Matrix ETERNITY Quick Start 109

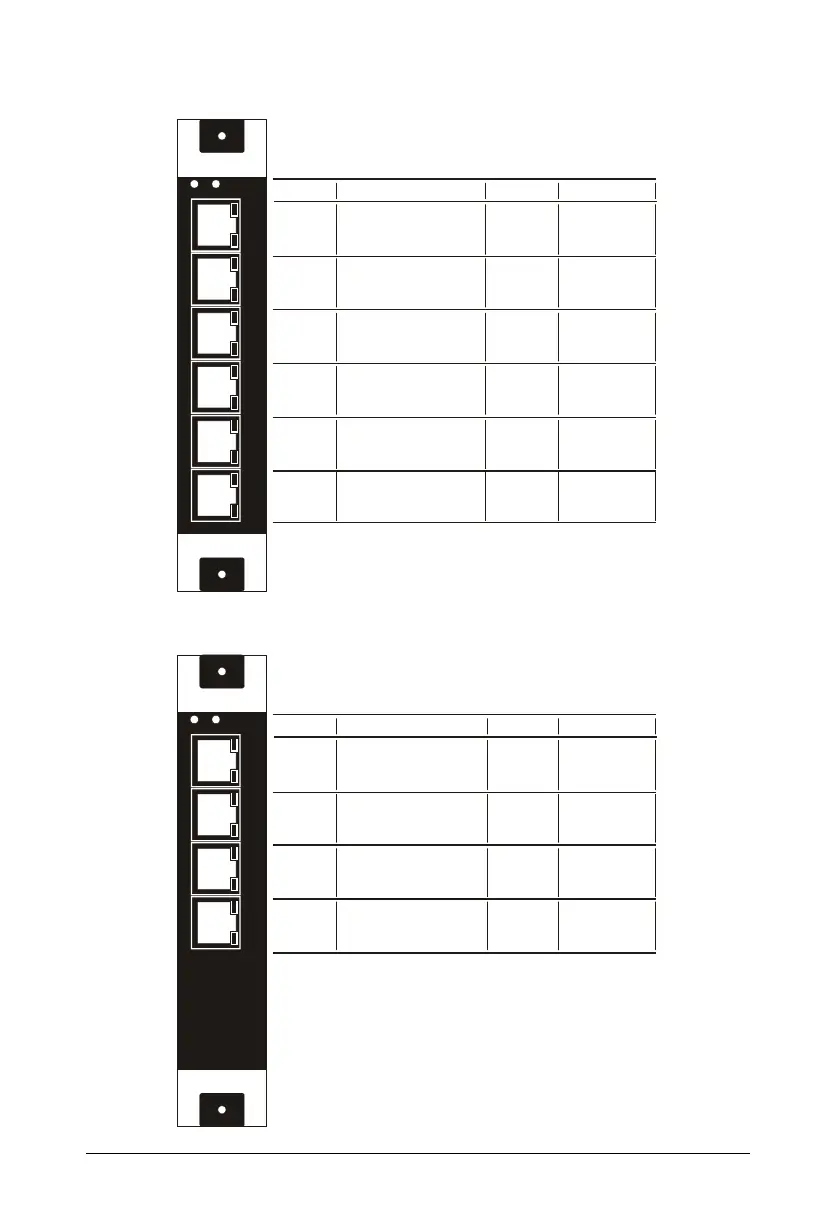

ETERNITY GE TWT2 + DKP2 + SLT16
ETERNITY GE TWT8 + SLT8
Connector Color Connection H/w Port Offset
RJ45-1 Blue - (Blue & White) SLT 01
(Blue) Orange - (Orange & White) SLT 02
Green - (Green & White) SLT 03
Brown - (Brown & White) SLT 04
RJ45-2 Blue - (Blue & White) SLT 05
(Orange) Orange - (Orange & White) SLT 06
Green - (Green & White) SLT 07
Brown - (Brown & White) SLT 08
RJ45-3 Blue - (Blue & White) SLT 09
(Green) Orange - (Orange & White) SLT 10
Green - (Green & White) SLT 11
Brown - (Brown & White) SLT 12
RJ45-4 Blue - (Blue & White) SLT 13
(Brown) Orange - (Orange & White) SLT 14
Green - (Green & White) SLT 15
Brown - (Brown & White) SLT 16
RJ45-5
Blue - (Blue & White) DKP 01
(Gray) Orange - (Orange & White) DKP 02
RJ45-6 Blue - (Blue & White) TWT 01
(Red) Orange - (Orange & White) TWT 02
L1 L2
1
2
3
4
5
6
Connector Color Connection H/w Port Offset
RJ45-1 Blue - (Blue & White) SLT 01
(Blue) Orange - (Orange & White) SLT 02
Green - (Green & White) SLT 03
Brown - (Brown & White) SLT 04
RJ45-2 Blue - (Blue & White) SLT 05
(Orange) Orange - (Orange & White) SLT 06
Green - (Green & White) SLT 07
Brown - (Brown & White) SLT 08
RJ45-3 Blue - (Blue & White) TWT 01
(Green) Orange - (Orange & White) TWT 02
Green - (Green & White) TWT 03
Brown - (Brown & White) TWT 04
RJ45-4 Blue - (Blue & White) TWT 05
(Brown) Orange - (Orange & White) TWT 06
Green - (Green & White) TWT 07
Brown - (Brown & White) TWT 08
L1 L2
1
2
3
4

Matrix ETERNITY ME Specifications

General

Brand	Matrix
Model	ETERNITY ME
Category	PBX
Language	English
