Controls in detail
Air vents
Opening and closing air vents
Center air vents
왘 Opening: Turn thumbwheels 4
and 5 upward (
컄 page 498).
왘 Closing: Turn thumbwheels 4 and 5
downward.
Side air vents
왘 Opening: Turn thumbwheels next to
side air vents 2 and 8 upward
(
컄 page 498).
왘 Closing: Turn thumbwheels down-
ward.
Rear center console air vents
왘 Increasing/decreasing air volume:
Turn thumbwheels a or d to the left
or right (
컄 page 498).
Ventilated storage compartment
(Canada only)
In vehicles without rear passenger com-
partment climate control*: the storage
compartment under the front armrest can
be ventilated when the automatic climate
control is switched on.

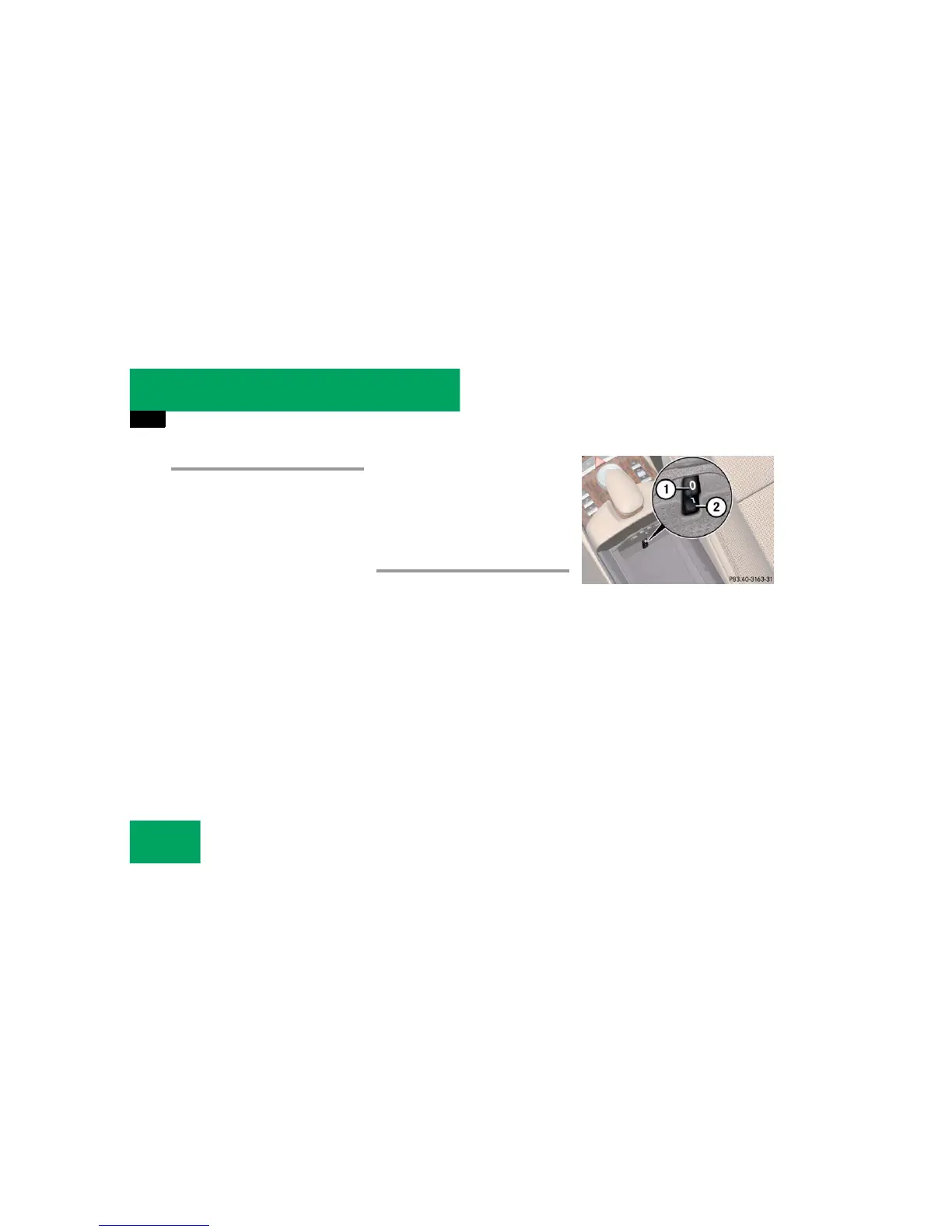

1 Switching ventilation off
2 Switching ventilation on
The air volume is dependent on the setting
of:
앫 air distribution control
앫 air volume control
앫 air vents in the dashboard
The air temperature is about the same as
that of the dashboard air vents. It cannot
be regulated separately.
i
For draft-free ventilation, move the sliders
for the center air vents 3 and 6 (
컄 page 498)
to the middle position.
i
Vehicles without rear passenger compart-
ment climate control*:
The temperature at the air vents b and c
(
컄 page 498) for rear passenger compartment
will be approximately the same as at the dash-
board center air vents.
!
Extreme temperatures can occur in the stor-
age compartment. Switch off the air vents in the
storage compartment while the heating is
switched on if you are transporting heat-sensi-
tive items in the compartment.
Keep the air vents free of obstruction.
