5.3.3 Operation Panel I/O Unit
Mount the operation panel I/O unit with the prescribed number of fixing screws.
(Note) Refer to "General Specifications: Operation Panel I/O Unit" for the installation dimension and the screw hole
position.

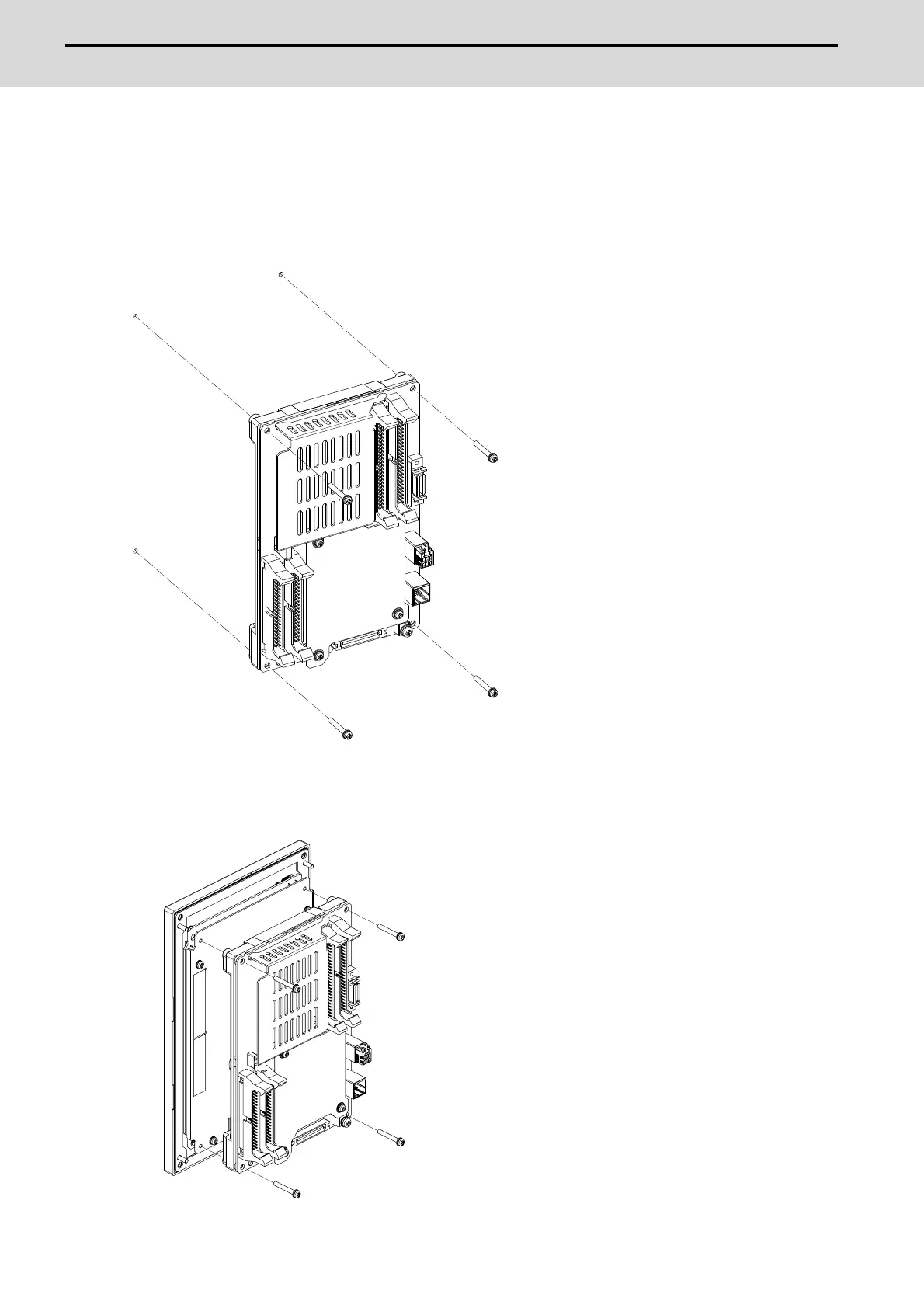

[FCU8-DX731 / FCU8-DX750 / FCU8-DX760 / FCU8-DX761 / FCU8-DX834]
Fixing screw: M3 (4 pcs)
Installation on the back side of the keyboard
Operation panel I/O unit can be installed on the back side of the keyboard.
Fixing screw: M3x25 (4 pcs)
