M800S/M80/E80 Series Connection and Setup Manual

15 Cable

354

IB-1501269-J

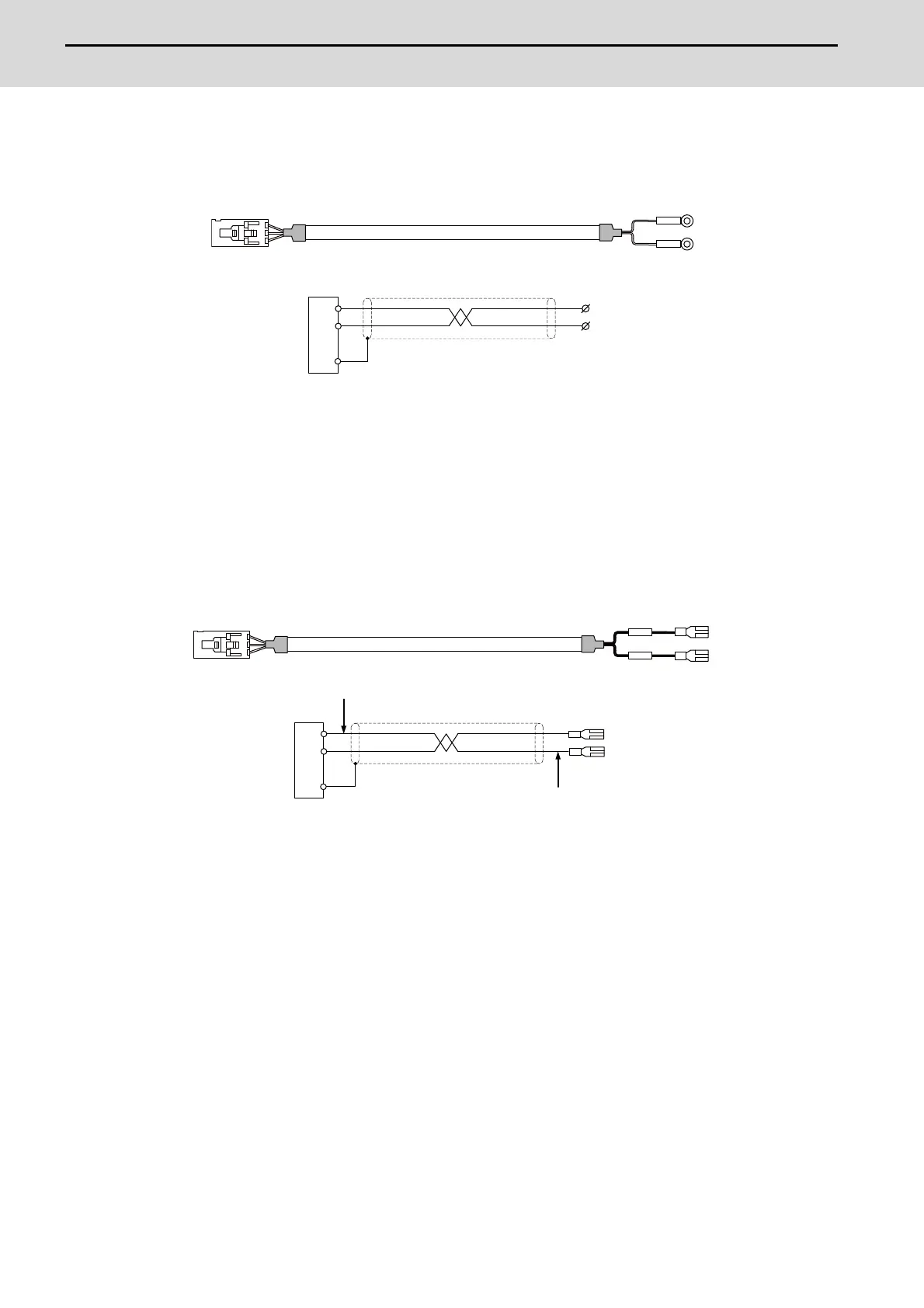

15.2.14 J120 Cable

Max. cable length: 30m

Application: Emergency stop cable

15.2.15 J121 Cable

Max. cable length: 30m

Application: Emergency stop cable for MITSUBISHI CNC machine operation panel

[EMG]

Connector : 50-57-9403

(former model number: 51030-0330)

Contact : 0016020103

(former model number: 50084-8160)

Recommended manufacturer : MOLEX

Wire material :

2464C BIOS-CL3-22 01P

Recommended manufacturer :

BANDO DENSEN

Crimp terminal : V1.25-3 × 2

Recommended manufacturer : JST

[EMG]

Connector : 50-57-9403

Contact : 0016020103

Recommended manufacturer : MOLEX

Wire material :

2464C BIOS-CL3-22 01P

Recommended manufacturer :

BANDO DENSEN

Crimp terminal : Faston terminal #110 with

insulating coating

EMG

24V

EMG

COM

EMG IN

24V

EMG

R1.25-3

EMG

24V

EMG

COM

EMG IN

24V

EMG

Faston terminal#110

Red

White
