Mitsubishi M800S series User Manual

M800S/M80/E80 Series Connection and Setup Manual
10 Connection of Remote I/O Unit
297
IB-1501269-J

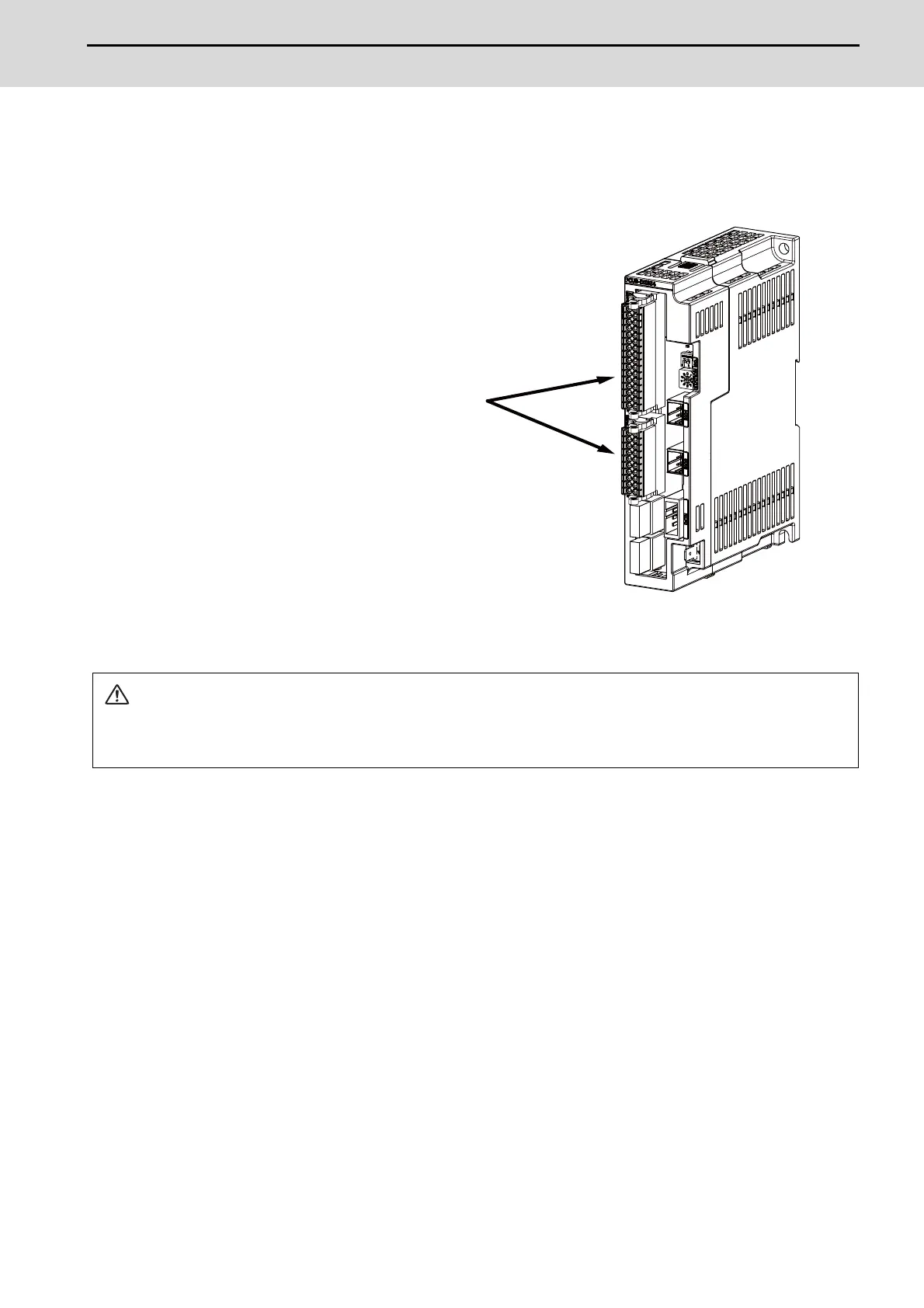

10.7 Connecting with Machine Control Signal
(FCU8-DX213 / FCU8-DX213-1 / FCU8-DX654 / FCU8-DX654-1)
[FCU8-DX213 / FCU8-DX213-1 / FCU8-DX654 / FCU8-DX654-1]
<Related items>
Connector pin assignment: "General Specifications: Remote I/O Unit" (CJ35/CJ36/SDI/SDO connector)
CAUTION
1. Connect the cable to the designated connector. Incorrect connections could damage the device.
2. Do not connect or disconnect the connection cables between each unit while the power is ON.
FCU8-DX213 / 213-1 :
CJ35
FCU8-DX654 / 654-1 :
SDI
FCU8-DX213 / 213-1 :
CJ36
FCU8-DX654 / 654-1 :
SDO
2
2
2
2
: 0.08 - 1.5 mm
: 0.08 - 1.5 mm
: 0.25 - 0.75 mm
: 0.25 - 1.0 mm
: 210-719
: WAGO
: WAGO
<Applicable cable>
Solid wire
Twisted wire
Bar terminal with insulation collar
Bar terminal without insulation collar
<Wire mounting tool type>
Screwdriver
Recommended manufacturer
<Bar terminal type>
Bar terminal
Recommended manufacturer
: 216 series
