M800S/M80/E80 Series Connection and Setup Manual
20 Sequence Program Writing
435
IB-1501269-J
20.6 Writing a Sequence Program with GX Developer
(Note) This operation is for performing writing in the temporary storage area of CNC (RAM inside CNC). The
temporary storage area (RAM inside CNC) does not hold data after the power is turned OFF. If the data need
to be held even after the power OFF, write the sequence program in ROM inside CNC following the procedure
described in "Writing a Sequence Program to ROM with GX Developer".
[Operation procedure for a project "without labels"]
The following is the operation procedure for a project in which labels are not used.
(1) Perform the following operation with GX Developer to start the operation screen.
[Online] -> [Write to PLC...]

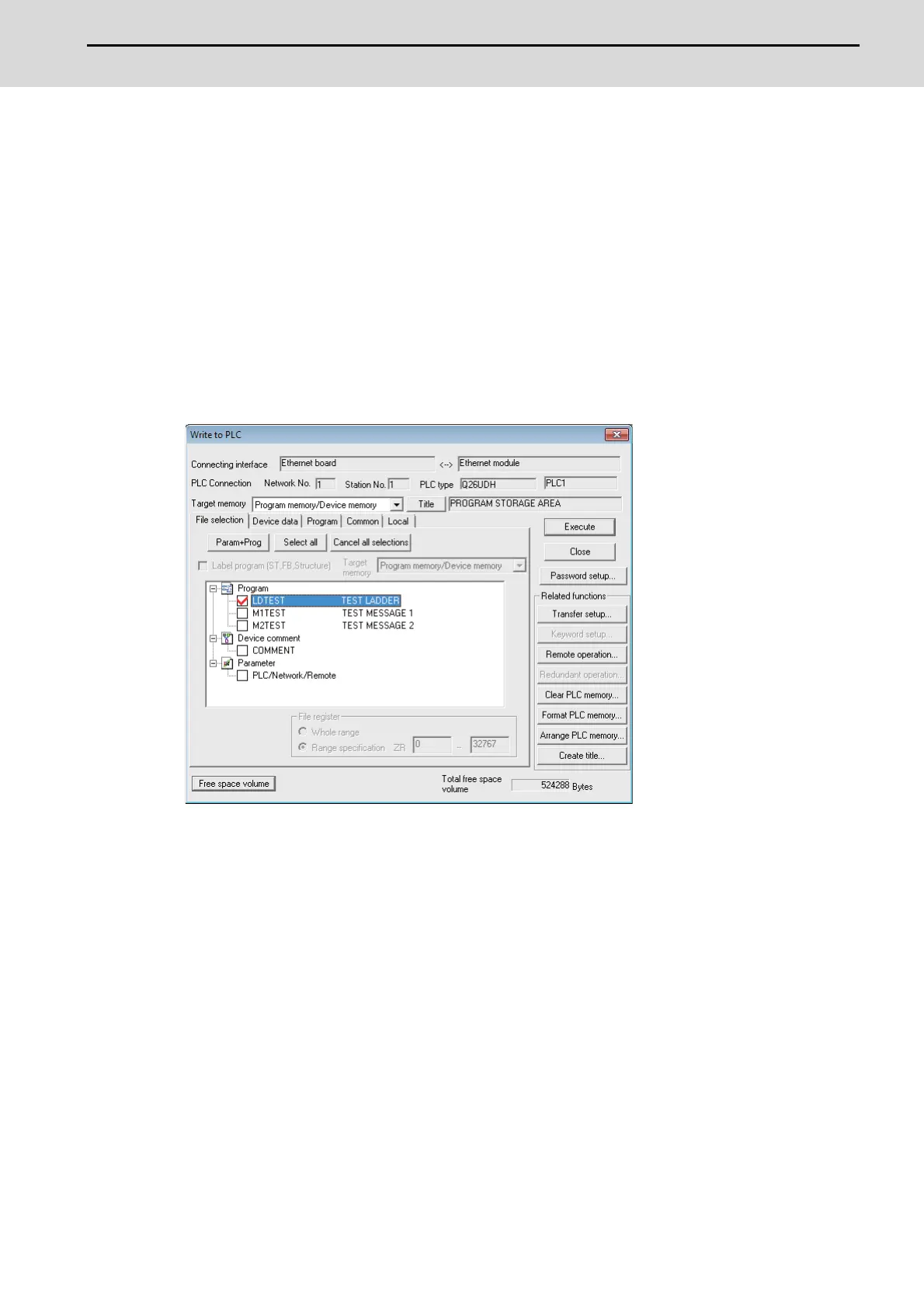

(2) Select a sequence program file for writing in the [File selection] tab of the screen below and click [Execute].
RUN/STOP for PLC can be commanded on [Remote operation...] of "Related functions".
(Note) Only "Program memory/Device memory" is valid for "Target memory".
Do not carry out the setting for other tabs than [File selection] ([Device data], [Program], [Common],
[Local]).
To Next Page
