M800S/M80/E80 Series Connection and Setup Manual
27 Confirming the Spindle Operation
520
IB-1501269-J

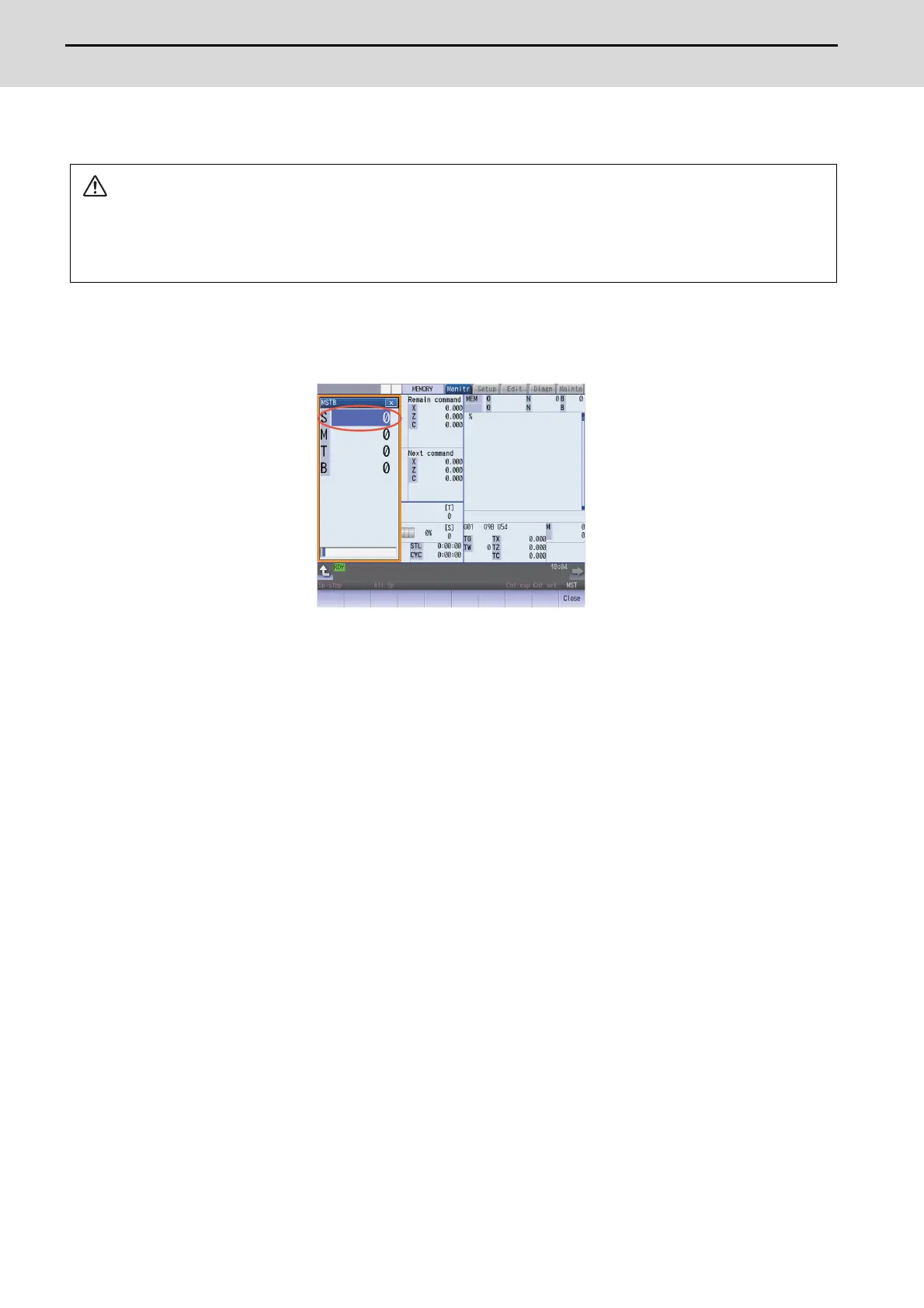

Confirm that the spindle operates properly in manual/MDI operation. Confirm the spindle rotation speed as well.
27.1 In Manual Operation (with Manual Numerical Command)
(1) Select [MST] on the Monitr screen. Enter a spindle rotation speed (ex. 100r/min) in "S" field.
(2) Enter "3" in "M" field to rotate the spindle.
(3) Check the rotation speed of the spindle motor while the spindle is rotating. Refer to the section of "Confirming the
Rotation Speed".
(4) After checking the rotation speed, set "M" to "5" or press the spindle stop button to stop the spindle rotation.
CAUTION
1. Do not adjust the spindle when possible risks associated with adjustment procedures are not thoroughly taken
into consideration.
2. Be careful when touching spindle's rotating section, or your hand may be caught in or cut.
To Next Page
