M800S/M80/E80 Series Connection and Setup Manual
20 Sequence Program Writing
443
IB-1501269-J
20.10 Writing a Sequence Program with GX Works2
(Note) This operation writes data to the temporary storage in the CNC (RAM in CNC). Data in temporary storage
(RAM in CNC) are not retained after power OFF. To retain data after power OFF, write sequence programs to
the ROM in the CNC according to "Writing a Sequence Program to ROM with GX Works2".
[Operating procedure for simple projects (without labels)]
The following is the operation procedure for a project in which labels are not used.
(1) Start the operation screen by the following operation on GX Works2.
[Online] -> [Write to PLC]

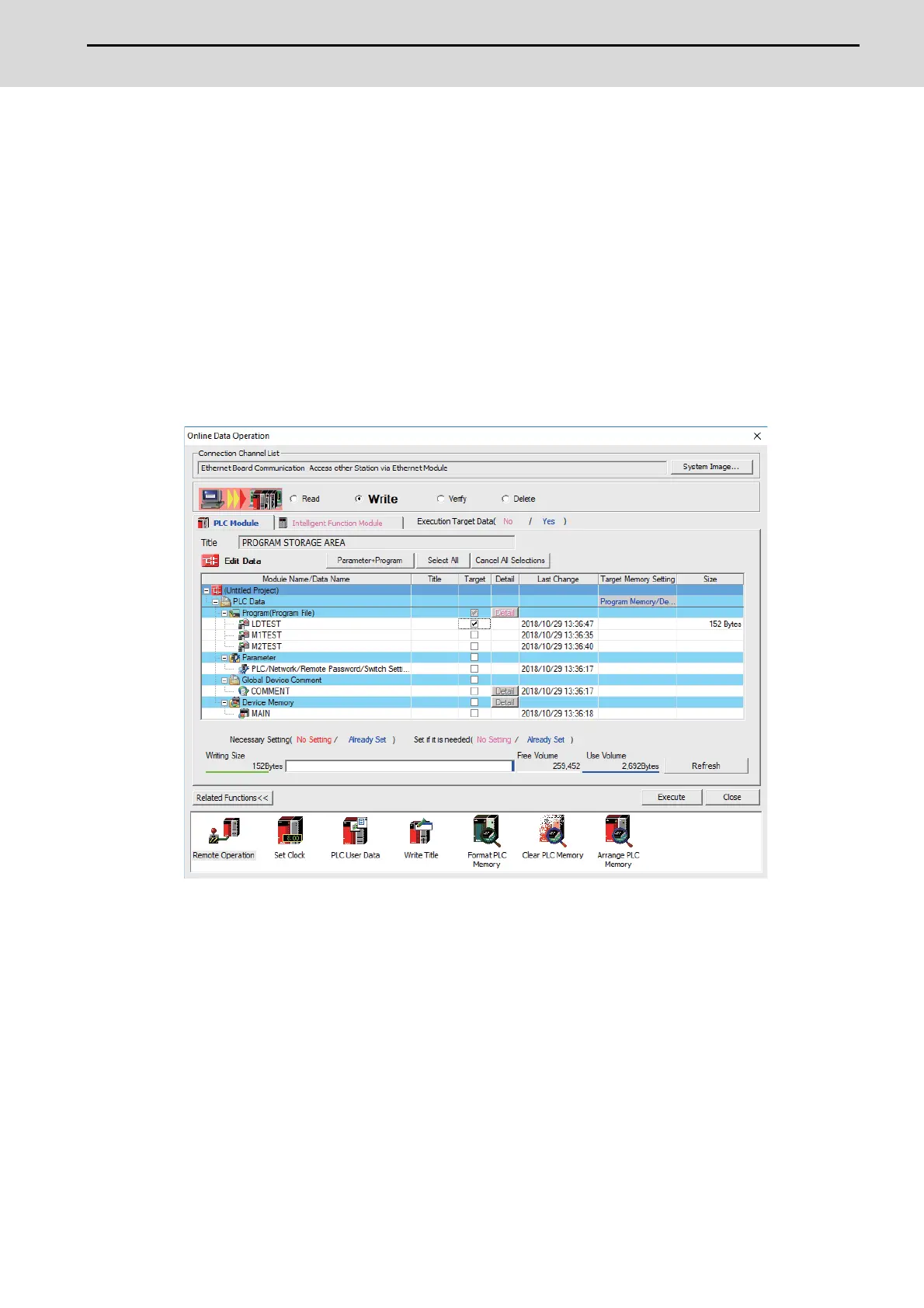

(2) Select [Program Memory/Device Memory] in [Target Memory Setting] of PLC data on the following screen.
Select write sequence program files, and click [Execute].
RUN/STOP of PLC can be instructed by selecting [Related Functions] - [Remote Operation].
(Note1) [Program Memory/Device Memory] is the only valid option for [Target Memory Setting].
To Next Page
