M800S/M80/E80 Series Connection and Setup Manual
15 Cable
357
IB-1501269-J

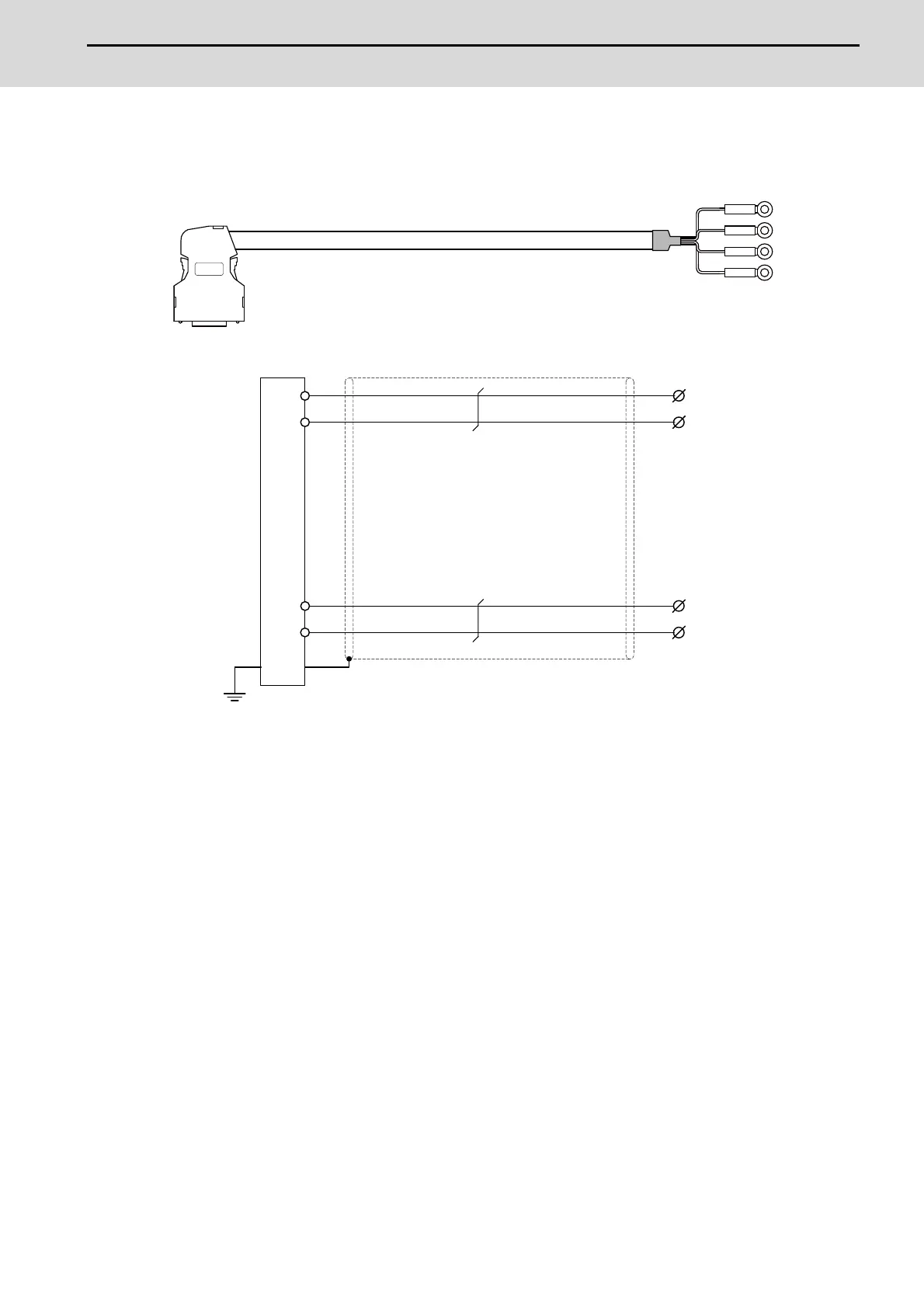

15.2.18 J224 Cable
Max. cable length: 30m
Application: Analog input/output cable (for operation panel I/O unit)
(Note 1) Fold the cable shield over the sheath, and wrap copper foil tape over it.
Connect the wound copper foil tape to GND plate of the connector.
(Note 2) When using the jackscrew M2.6-type 10320-56S0-008-F for the shell, do not fasten the screws too tightly
otherwise the connector and the PCB may be damaged.
(Manufacturer recommended tightening torque: 0.20±0.05Nꞏm)
[AIO]
Connector : 10120-3000PE
Case : 10320-56F0-008
Recommended manufacturer : 3M
Wire material :
UL2464 U-TKVVBS AWG24 × 6P
Recommended manufacturer :
Tachii Electric Wire
Crimp terminal : R1.25-3.5 x 10
Recommended manufacturer : JST
AIO
AI0
AO
AOG
AI0G
AIO
2
1
11
5
15
7
9
AI0G
AI0
AOG
AO
AI
0V
0V
0V
0V
AO
0V
