Mitsubishi M800S series User Manual

M800S/M80/E80 Series Connection and Setup Manual
15 Cable
361
IB-1501269-J
15.2.25 R2-TM Terminator Connector
Application: Terminator for OPI interface
(Note 1) The parts used shall be Mitsubishi recommended parts. Equivalent parts may be used providing they are
compatible with the specifications.
(Note 2) Cover the 110Ω terminator with a black insulation tube.
(Note 3) Stamp the connector name "R2-TM" in white on the rear of the connector.

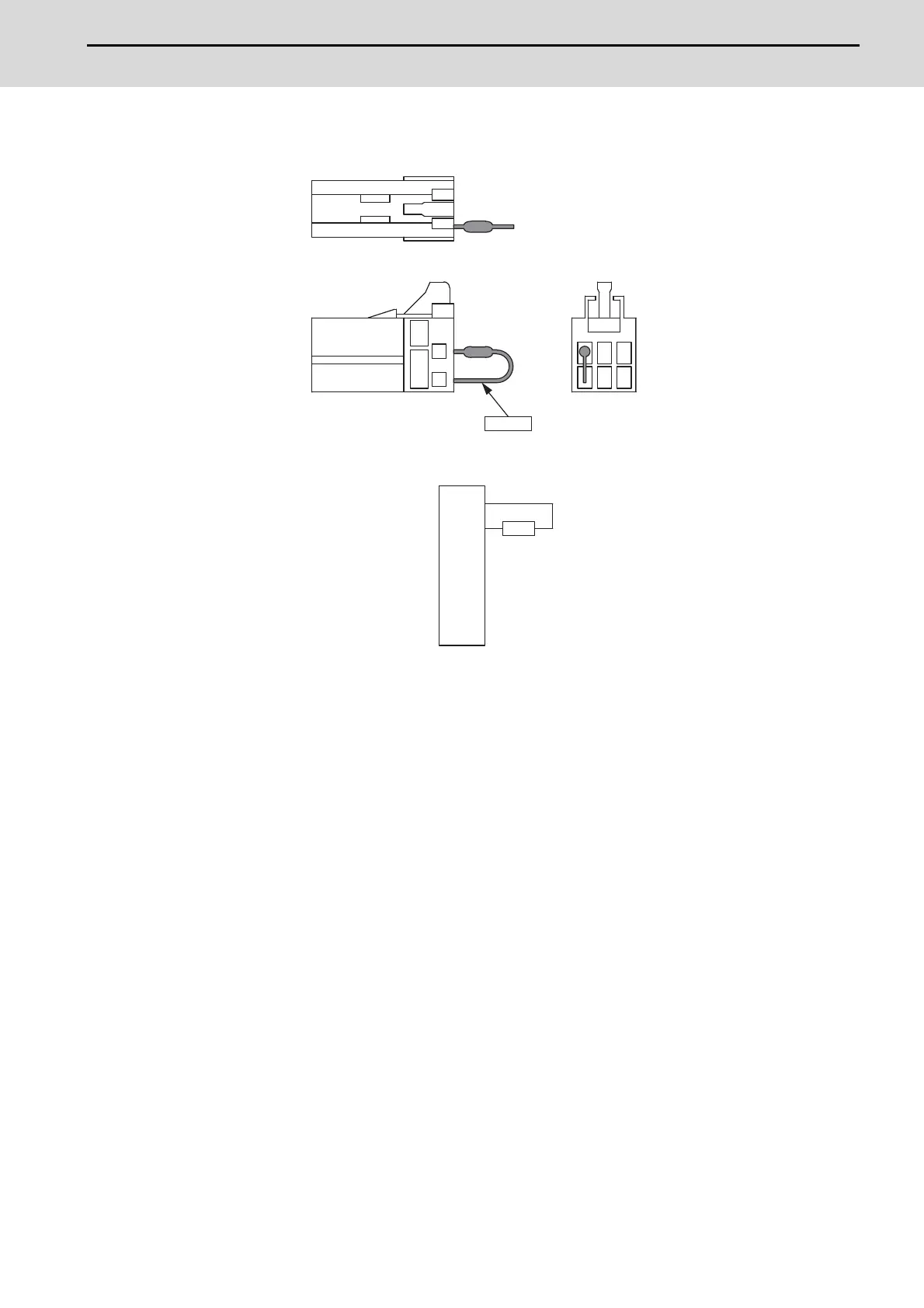

[R2-TM]
Connector: 1-1318119-3
Contact: 1318108-1
Recommended manufacturer: Tyco Electronics
Resistor: 110Ω 1/4W
123
A
B
AMP
D-2
R2-TM
1A
1B
2A
2B
3A
3B
TXRX
TXRX*
0V
FG
R2-TM
