M800S/M80/E80 Series Connection and Setup Manual
9 Connection of Operation Panel I/O Unit
283
IB-1501269-J

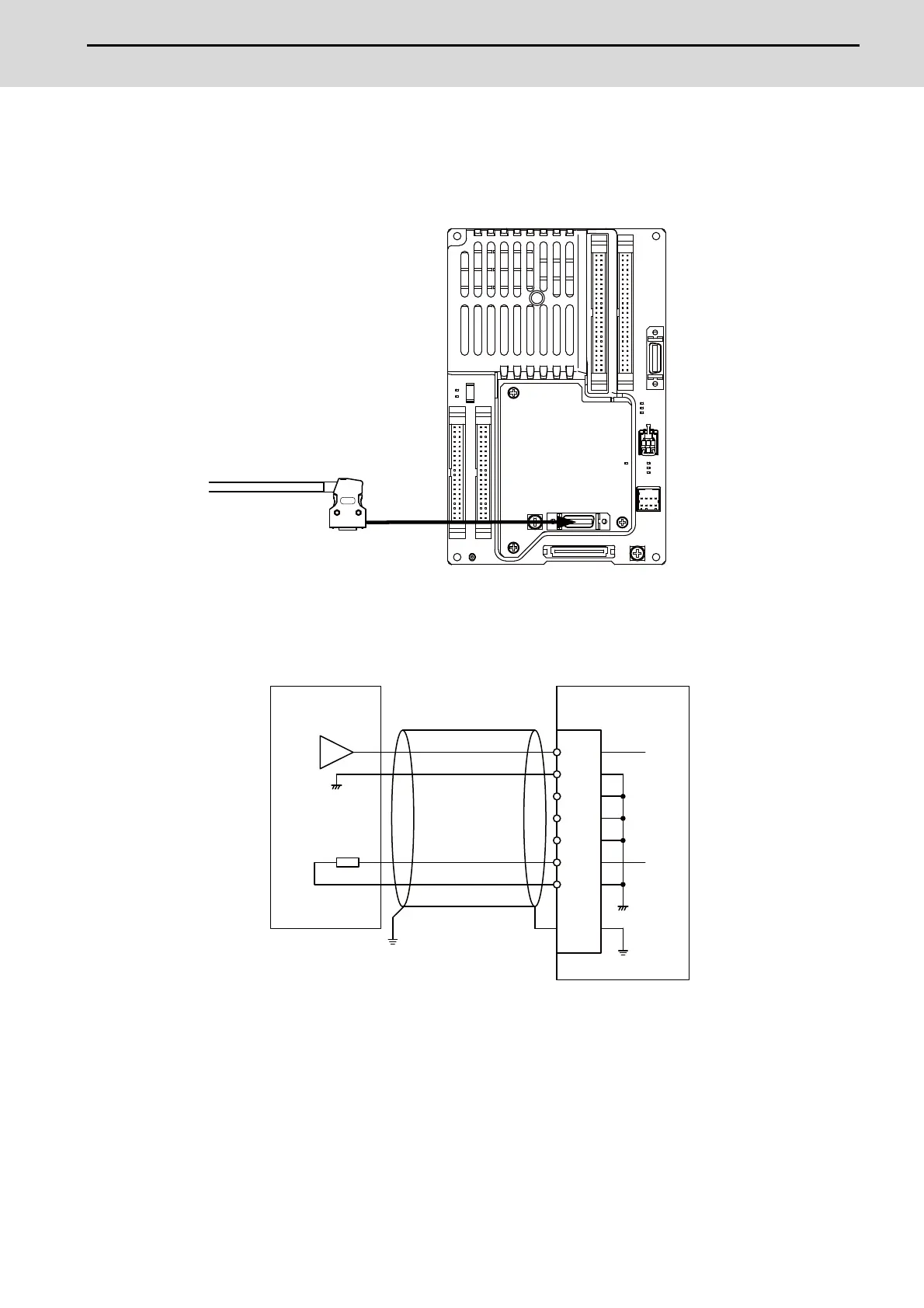

9.10 Connecting with Analog I/O Signal (FCU8-DX761)
For the analog input/output signals, connect J224 cable to the AIO connector of FCU8-DX761.
The analog input/output signals are available to connect up to one point for the input, and up to one point for the output.
<Related items>
Cable drawing "Cable: J224 Cable"
Connector pin assignment: "General Specifications: Operation Panel I/O Unit" (AIO connector)
AIO
J224
AIO
7
9
2
1
AO
0V
AI0
11
5
15
FCU8-DX761
FG
FG
Shell
Machine side
Shield
To Next Page
