M800S/M80/E80 Series Connection and Setup Manual
10 Connection of Remote I/O Unit
291
IB-1501269-J
10.5 Connecting with Operation Panel I/O Unit
Refer to the "17.6.2 Connection and Station No. Setting on Remote I/O Unit" for the station No. setting.
(Note) The maximum connectable number of remote I/O units is 32.
J210
CJ71
J010(FCU8-DX731/750/760/761)
J012(FCU8-DX834)

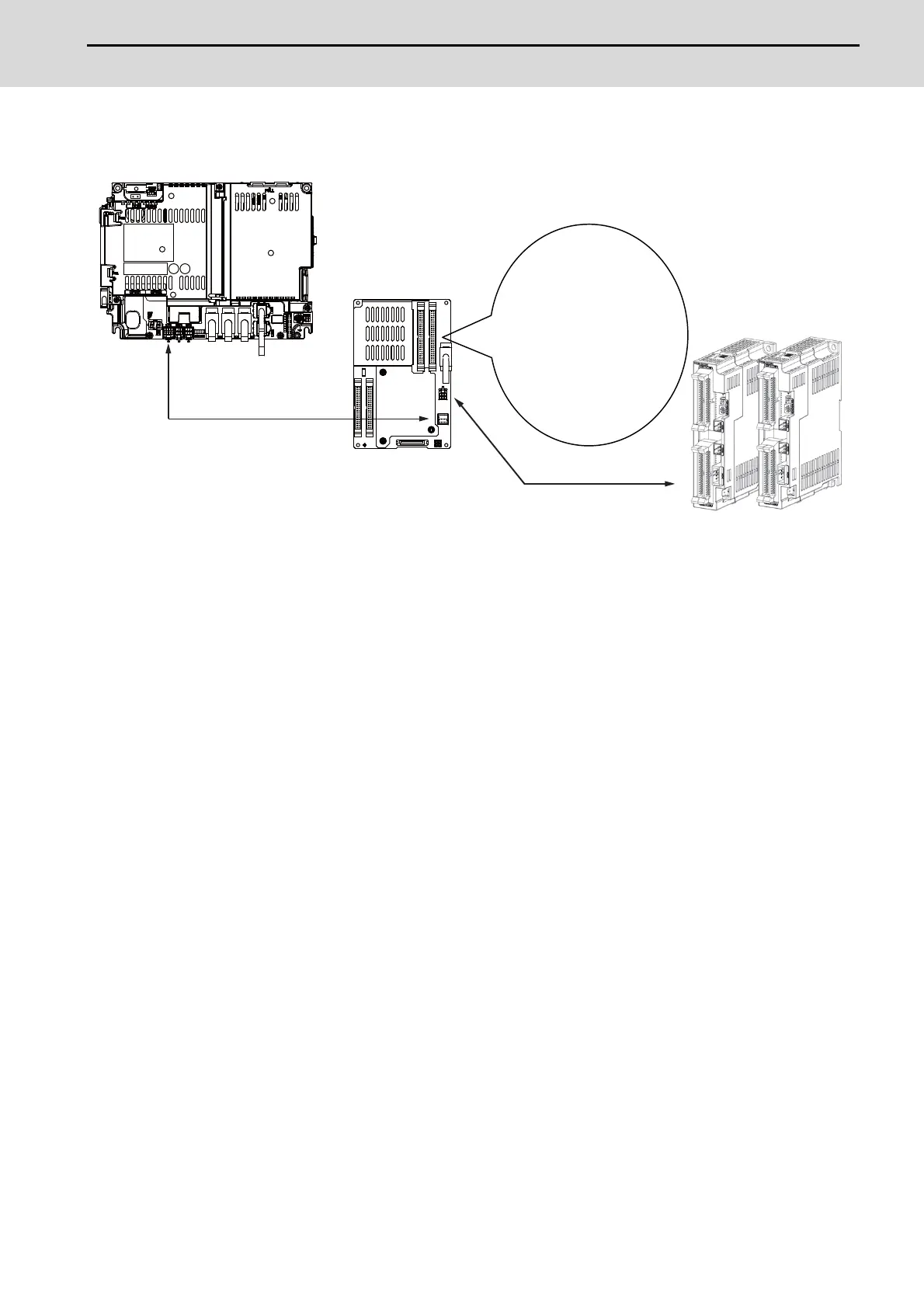

Control unit
Remote I/O unit
Operation panel I/O unit
Remote I/O3ch
Max. 49 to 53 stations
Max. input: 1568 to 1696 points
Max. output: 1568 to 1696 points
RIO occupied stations
FCU8-DX731:
1, 3, 7 to 12, 20 to 22
FCU8-DX750:
1 to 3, 7 to 12, 20 to 22
FCU8-DX760:
1 to 4, 7 to 12, 20 to 22
FCU8-DX761:
1 to 5, 7 to 12, 20 to 22
FCU8-DX834:
1 to 4, 7 to 14, 20 to 22
