M800S/M80/E80 Series Connection and Setup Manual

7 Connection of Control Unit

245

IB-1501269-J

7.8 Connecting with RS-232C Device

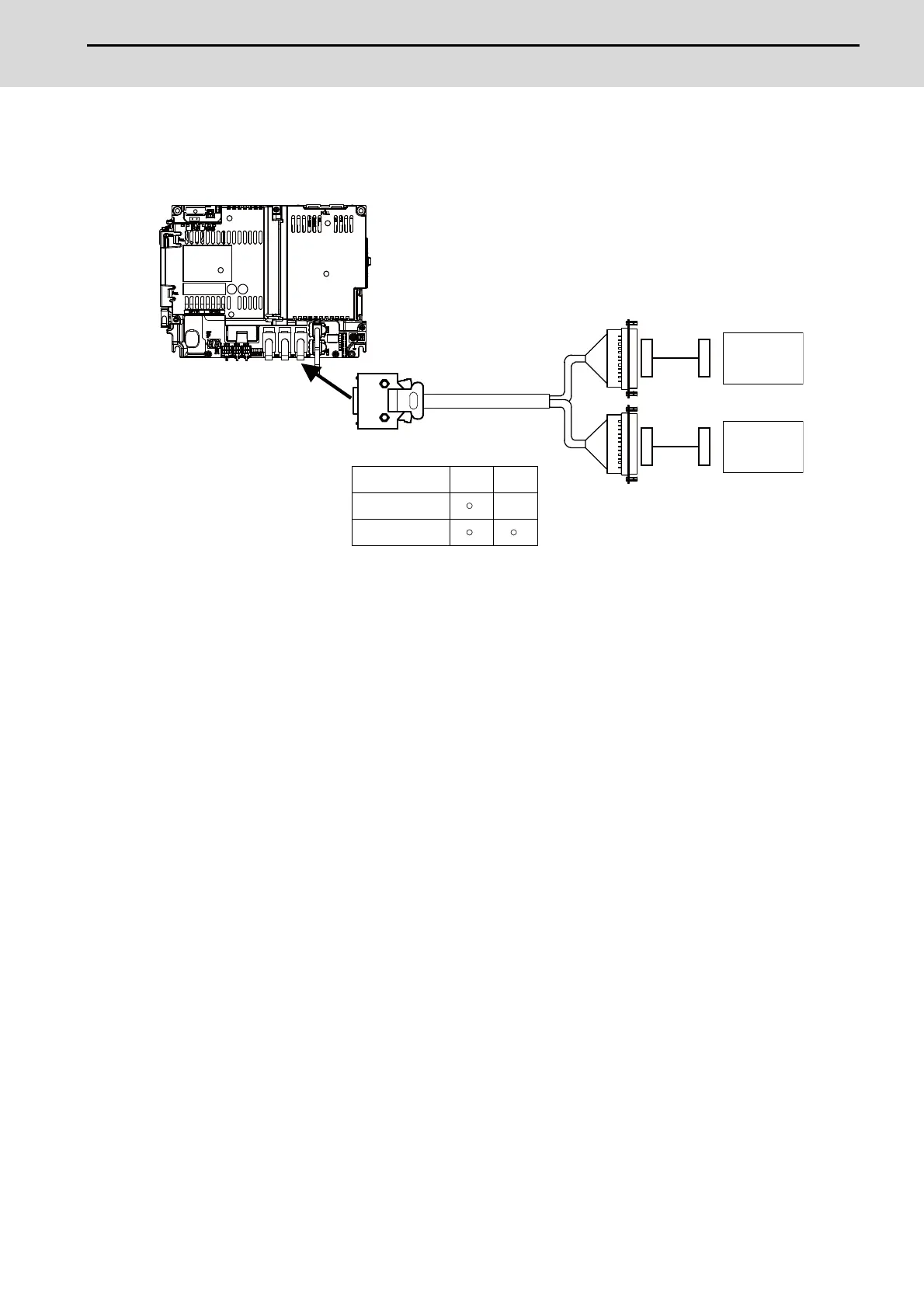

(1) Connect the RS-232C device to SIO connector of the control unit.

Cable drawing: "Cable: J030/J031 Cable"

Connector pin assignment: "General Specifications: Control Unit" (SIO connector)

1ch 2ch

J031

SIO

J031 cable

J030 cable

Cable name

RS-232C device

Control unit
