M800S/M80/E80 Series Connection and Setup Manual
13 Connection of MITSUBISHI CNC Machine Operation Panel
334
IB-1501269-J
13.7 Software Interface
Station Nos. of the machine operation panel RIOs are fixed. Device Nos. such as switch and LED on the machine
operation panel are fixed as follows:
(1) Main panel (key switch/LED)
Main panel is equipped with 55 switches and 55 LEDs.

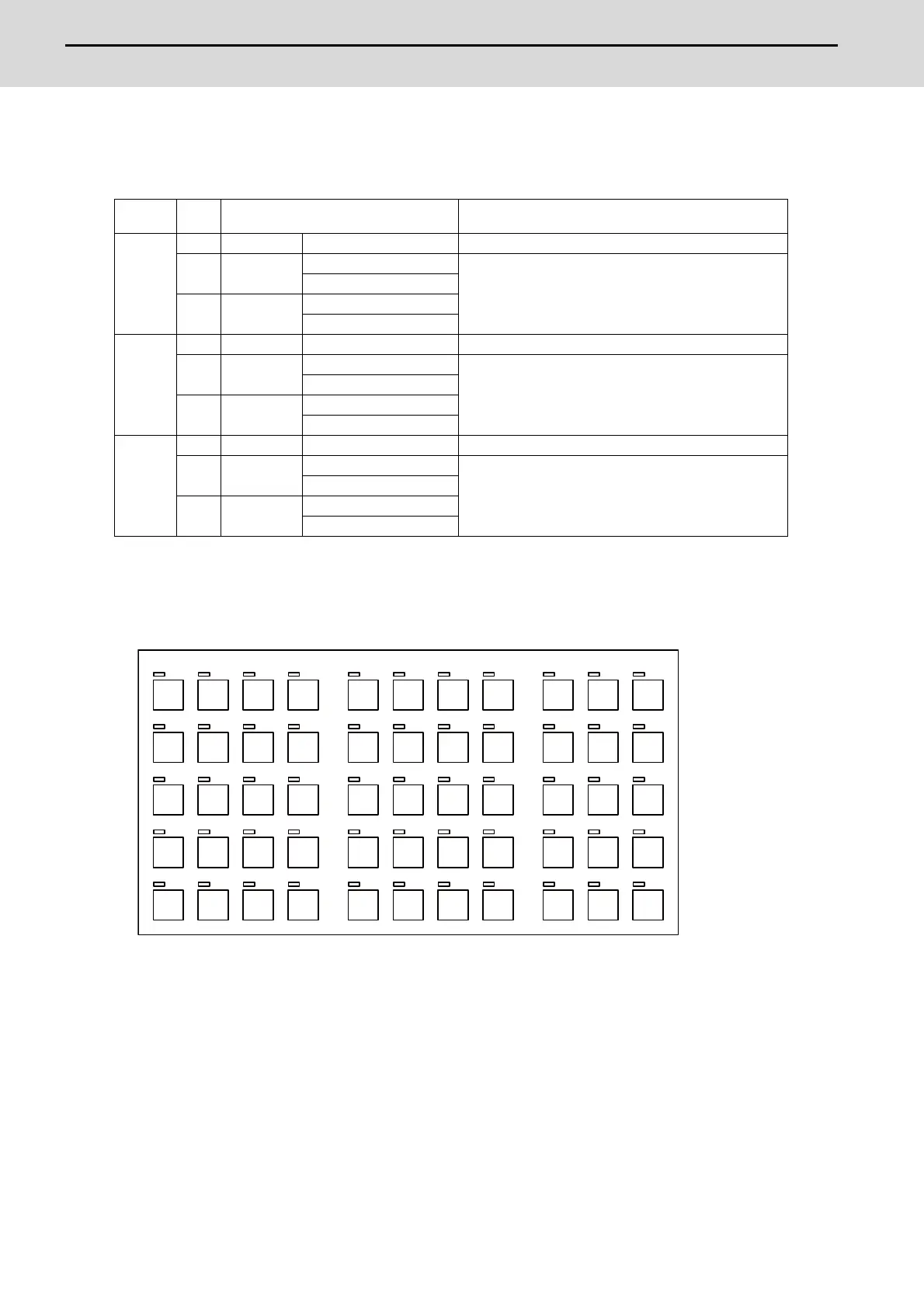

I/O devices are assigned to the switches and LEDs as illustrated below.
(The numbers given in the drawing represent the positions, not the device Nos.)
(Note 1) If the stations of machine operation panel and other remote I/O unit overlap, all the connections of the
overlapping stations are invalidated and cannot be used. Stations which do not overlap can be used.
Channel
No.
No Device Function
RIO1
#1 20th station Input: ZR5022/ZR5023 [Input] Reading switch data of the sub panel
#2 21st station
Input: ZR5024/ZR5025
[Input] Reading key data of the main panel (55 points)
[Output] LED lighting control (55 points)
Output: ZR6024/ZR6025
#3 22nd station
Input: ZR5026/ZR5027
Output: ZR6026/ZR6027
RIO2
#1 20th station Input: ZR5222/ZR5223 [Input] Reading switch data of the sub panel
#2 21st station
Input: ZR5224/ZR5225
[Input] Reading key data of the main panel (55 points)
[Output] LED lighting control (55 points)
Output: ZR6224/ZR6225
#3 22nd station
Input: ZR5226/ZR5227
Output: ZR6226/ZR6227
RIO3
#1 20th station Input: ZR5422/ZR5423 [Input] Reading switch data of the sub panel
#2 21st station
Input: ZR5424/ZR5425
[Input] Reading key data of the main panel (55 points)
[Output] LED lighting control (55 points)
Output: ZR6424/ZR6425
#3 22nd station
Input: ZR5426/ZR5427
Output: ZR6426/ZR6427
X0 0 X01 X02 X0 3
Y00 Y01 Y02 Y03
X0 4 X05 X06 X0 7
Y04 Y05 Y06 Y07
X0 8 X09 X0A X0B
Y08 Y09 Y0A Y0B
X0C X0D X0E X0F
Y0C Y0D Y0E Y0F
X1 0 X11 X12 X1 3
Y10 Y11 Y12 Y13
X14 X15 X1 6 X1 7
Y14 Y15 Y16 Y17
X18 X19 X1A X1B
Y18 Y19 Y1A Y1B
X1C X1D X1E X1F
Y1C Y1D Y1E Y1F
X20 X21 X2 2 X2 3
Y20 Y21 Y22 Y23
X24 X25 X2 6 X2 7
Y24 Y25 Y26 Y27
X28 X2 9 X2A
Y2 8 Y2 9 Y2A
X2C X2D X2E
Y2C Y2D Y2E
X30 X3 1 X32
Y3 0 Y3 1 Y32
X34 X3 5 X36
Y3 4 Y3 5 Y36
X38 X3 9 X3A
Y3 8 Y3 9 Y3A
