M800S/M80/E80 Series Connection and Setup Manual
17 Setting the Hardware
385
IB-1501269-J

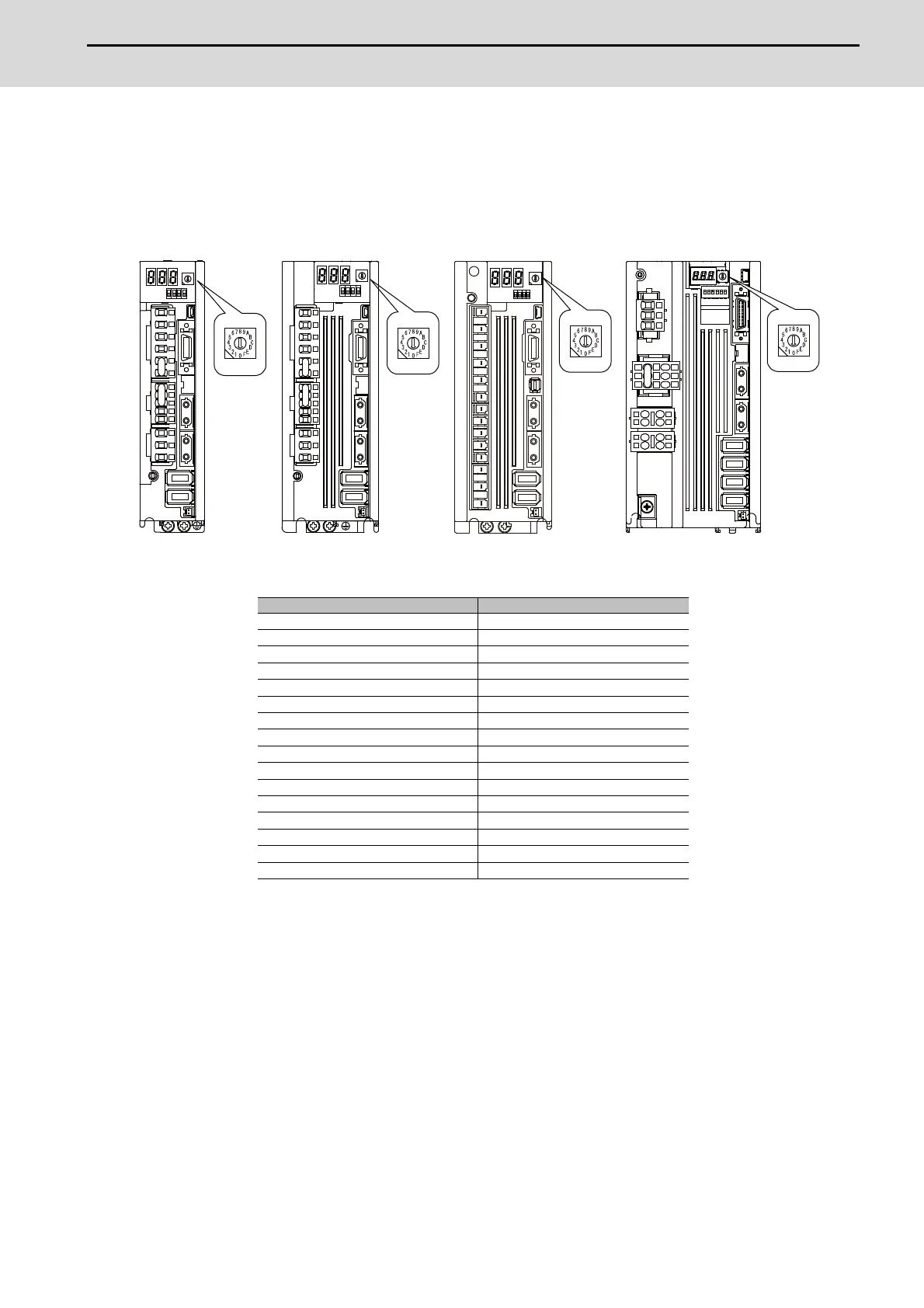

17.3 Setting Drive Unit MDS-EJ/EJH Series
17.3.1 Setting the Rotary Switch
Set the axis number with the rotary switch.
MDS-EJ/EJH-V1, MDS-EJ-SP setting
Rotary switch setting AXIS NO.
0 1st axis
1 2nd axis
2 3rd axis
3 4th axis
4 5th axis
5 6th axis
6 7th axis
7 8th axis
8 9th axis
9 10th axis
A 11th axis
B 12th axis
C 13th axis
D 14th axis
E 15th axis
F 16th axis
(MDS-EJ-V1)
(MDS-EJH-V1)
(MDS-EJ-SP)
(MDS-EJ-V2/SP2)
1-axis
servo drive unit
1-axis
s
pindle drive unit
1-axis
servo drive unit
2-axis servo/
s pindle drive unit
