DDRA[7:0] — Data Direction Register A Bits
These read/write bits control port A data direction. Reset clears
DDRA[7:0], configuring all port A pins as inputs.
1 = Corresponding port A pin configured as output
0 = Corresponding port A pin configured as input
NOTE:
Avoid glitches on port A pins by writing to the port A data register before
changing data direction register A bits from 0 to 1. Figure 17-4 shows
the port A I/O logic.

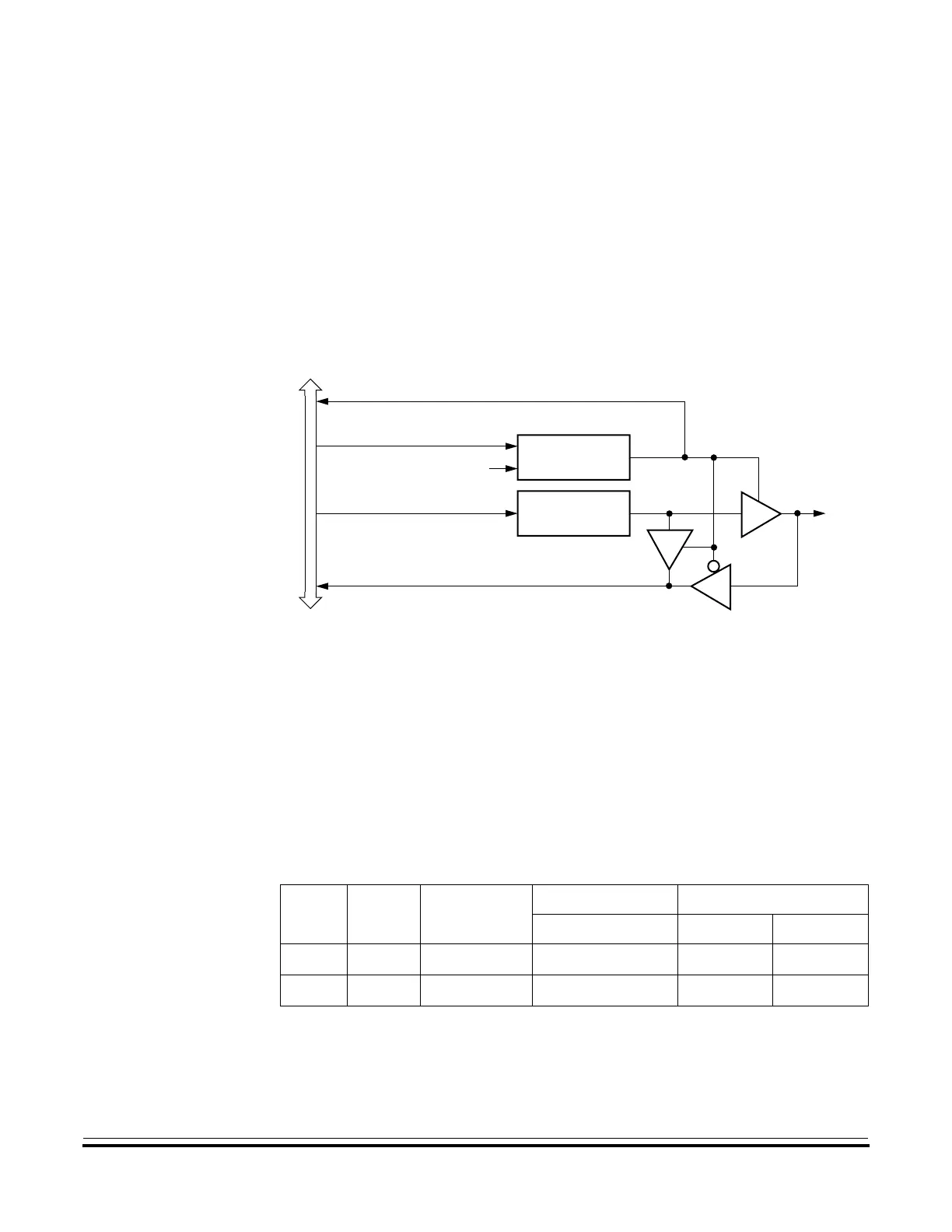

Figure 17-4. Port A I/O Circuit
When DDRAx is a logic 1, reading address $0000 reads the PTAx data
latch. When DDRAx is a logic 0, reading address $0000 reads the
voltage level on the pin. The data latch can always be written, regardless
of the state of its data direction bit.
Table 17-2 summarizes the operation of the port A pins.
Table 17-2. Port A Pin Functions
DDRA
Bit
PTA Bit I/O Pin Mode
Accesses to DDRA Accesses to PTA
Read/Write Read Write
0X
(1)
Notes:
1. X = don’t care.
Input, Hi-Z
(2)
2. Hi-Z = high impedance.
DDRA[7:0] Pin PTA[7:0]
(3)
3. Writing affects data register, but does not affect input.
1 X Output DDRA[7:0] PTA[7:0] PTA[7:0]
READ DDRA ($0004)
WRITE DDRA ($0004)
RESET
WRITE PTA ($0000)
READ PTA ($0000)
PTAx
DDRAx
PTAx
INTERNAL DATA BUS
To Next Page
