Chapter 1 Names of Parts and Their Functions
10
1.2.9 Epi-fluorescence Attachments
Epi-fluorescence attachment described in this manual
This manual describes the following combination of units as the basic configuration.
TI2-LA-BF fixed main branch (Ti2-LAPP system)
TI2-LA-FL-2 EPI-FL module (Ti2-LAPP system)
D-LEDI fluorescence LED illumination system
Laser configuration
When using other modules of the Ti2-LAPP system or when using a laser as the light source for epi
illumination, see the instruction manual for the Ti2-LAPP.

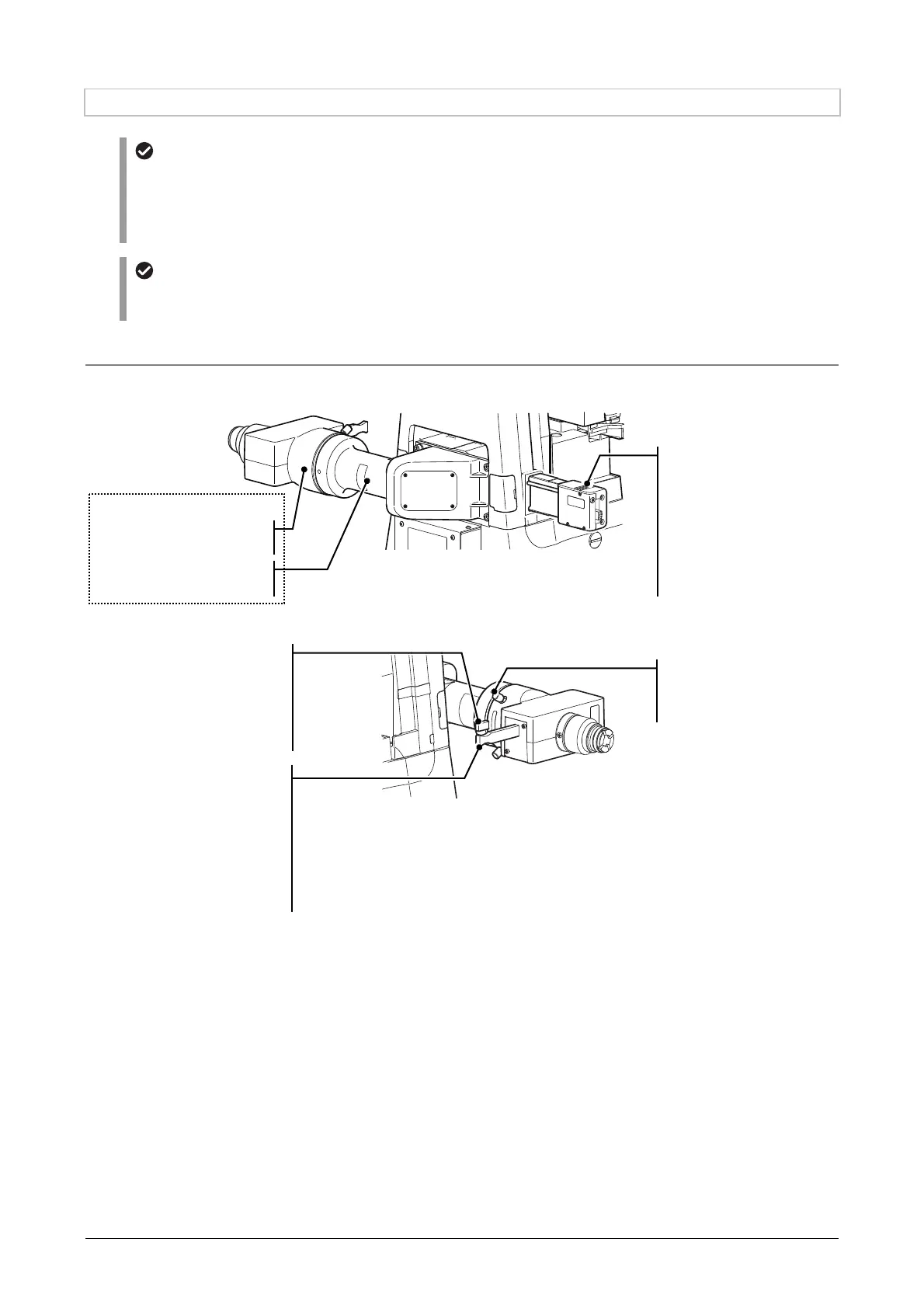

Epi-fluorescence attachment (fixed main branch + EPI-FL module)
Left rear view:
Right front view:
Fixed main branch + EPI-FL module
Epi-fluorescence attachment
Illumination module
EPI-FL module
Field diaphragm slider
Push the slider in until it clicks
into position:
The field diaphragm enters the
optical path.
Pull the slider out until it
reaches the limit position:
The field diaphragm is
removed from the optical path.
(
3.13.3)
A
perture diaphragm centering
knobs (x 2, one on top and one on
bottom)
(
3.13.1)
Aperture diaphragm open/close
lever
Turn it to the lower side: The
diaphragm opens.
Turn it to the upper side: The
diaphragm closes.
(
3.13.1)
Filter slider
Push it in until it clicks into
position:
The front filter (on the lever side)
enters the optical path.
Pull it out until it clicks into
position:
The rear filter enters the optical
path.
(
3.13.2)
Branch
Fixed main branch
