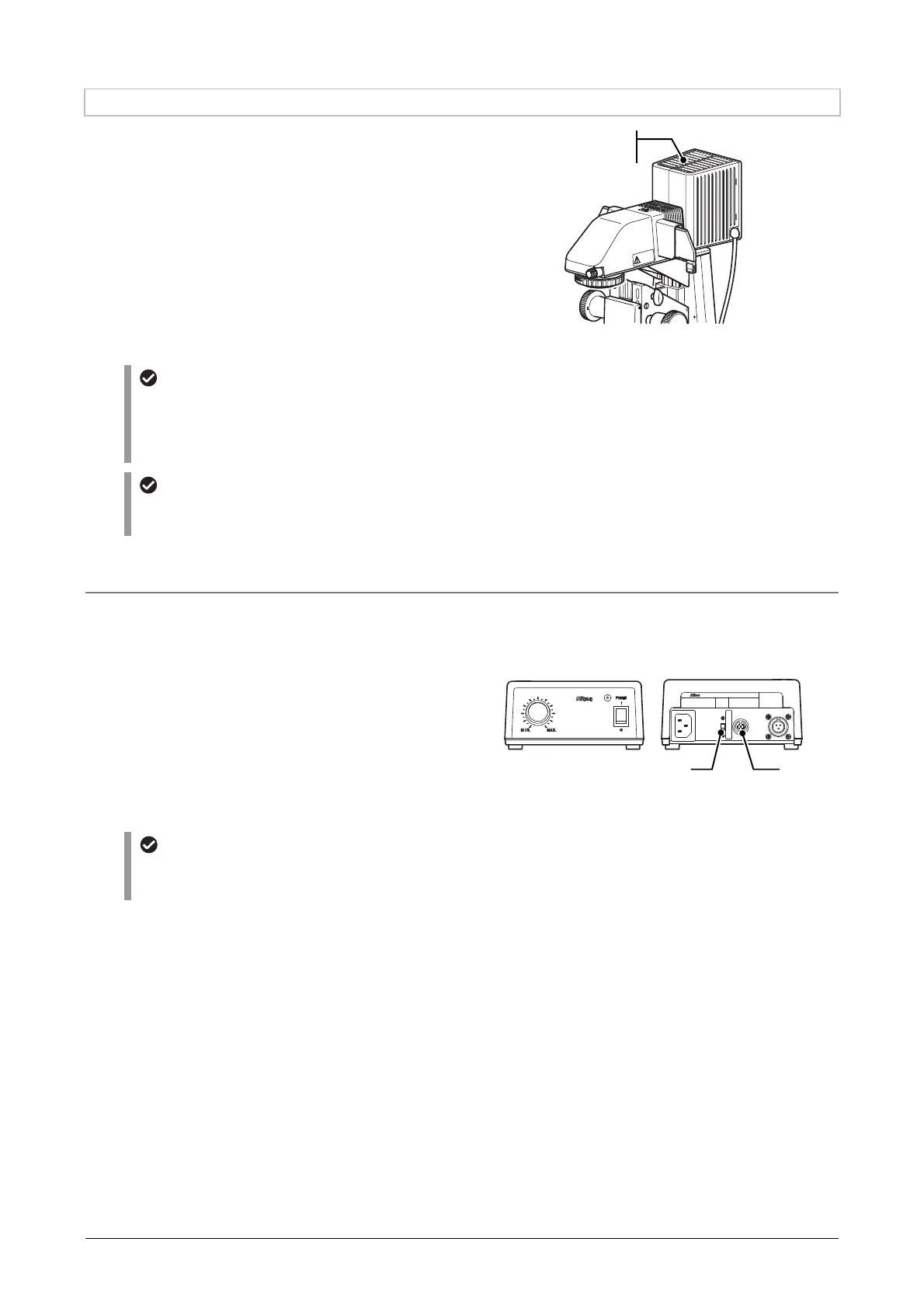

3.3.7 Using the D-LH/LC Precentered Lamphouse
In place of the standard dia LED lamphouse, a
D-LH/LC precentered lamphouse, which uses a
halogen lamp, can be attached.
Connect D-LH/LC with the TI-PS100W/A power
supply 100-240V/A before use. Connecting the
power supply to the Ti2-U main body and correctly
specifying settings enables the lamphouse and the
power supply to be operated from the Ti2-U main
body.
Use D-LH/LC according to the following notes.
S.
F.
D-LH/LC Precentered Lamphouse
Combined use of the shutter
The precentered lamphouse uses a halogen lamp, in which the tinge of the illumination changes until it is
warmed up and at full brightness.
Refrain from turning on and off frequently. Instead, use the dia-illumination shutter to block the
illumination.
Attachment of a lamphouse and connection of a power supply
For details on the attachment of a lamphouse and connection of a power supply, see “Chapter 7
Assembly of the Devices.”
Checking the settings of the power supply
When turning on or off or adjusting brightness of the lamp from the main body, check the following settings:
1. Check the connection between the power
supply and the Ti2-U main body.
2. Set the EXTERNAL switch on the rear
surface of the power supply to ON.
3. Flip the POWER switch on the front surface
of the power supply to the “I” side.
When power is applied, the POWER indicator is
lit. To turn off the power, flip the POWER switch
to the “O” side.
ON
OFF
E
X
T
E
R
N
A
L
MADE IN JAPAN
MODEL TI-PS100W/A
Connecting power supplies/setting locations
Controlling the lamphouse from the power supply
To adjust the brightness without using the brightness adjuster on the Ti2-U, turn off the EXTERNAL switch
to enable the brightness adjuster on the power supply.
D-LH/LC precentered
lamphouse
EXTERNAL switch
Connecto
