Troubleshooting

6-19

Part 1128350_02

E 2020 Nordson Corporation

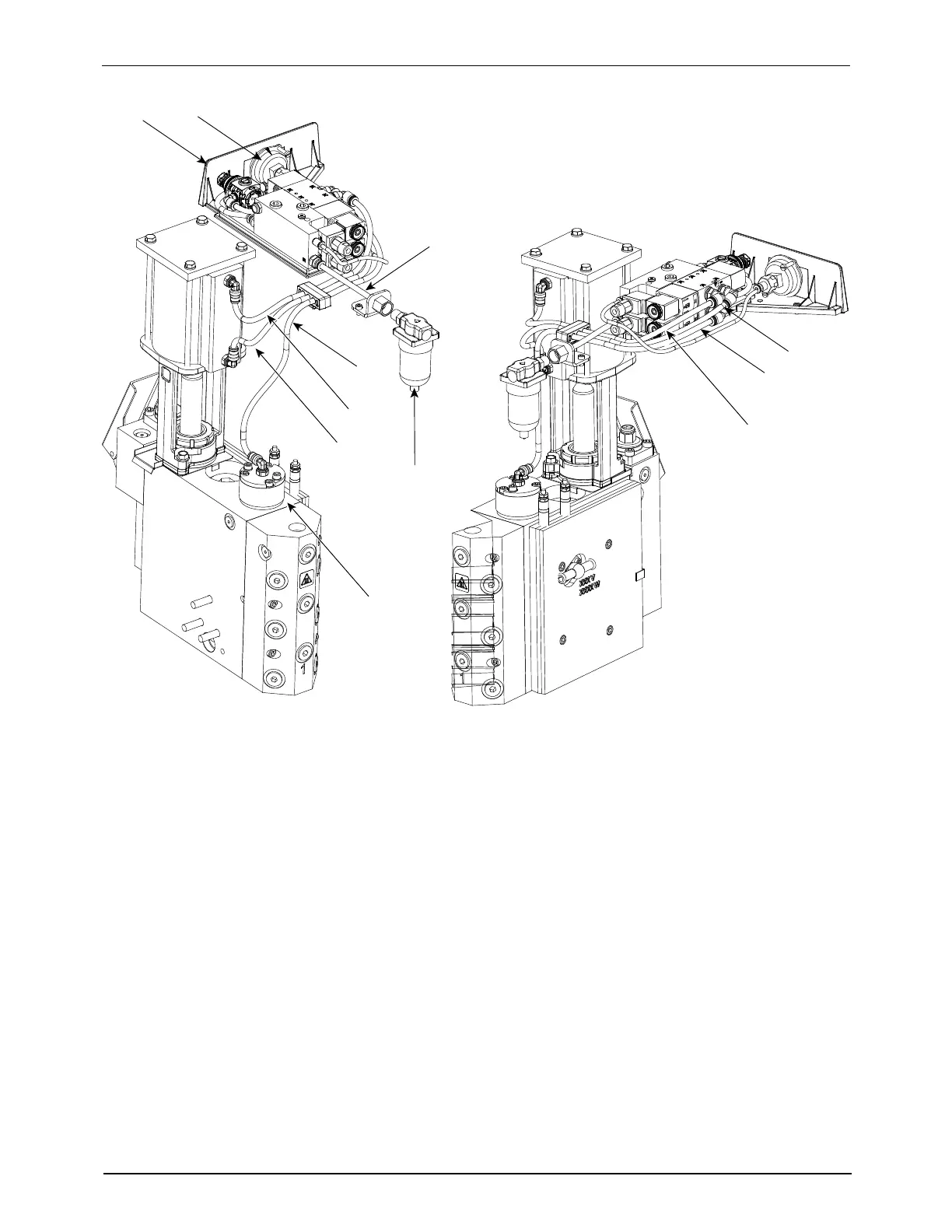

Figure 6-3 Melter pneumatic flow components

1. P1 Pressure regulator and solenoid

assembly

2. Analog pressure gauge

3. Pneumatic filter

4. Tubing – Filter to Regulator

5. Tubing – Regulator to PDV

6. Tubing – Regulator to Pump

Top

7. Tubing – Regulator to Pump

Bottom

8. Pressure Dump Valve (PDV)

NOTE: Only P1 Configuration is shown for single acting pump.
