11.22 in.
(285 mm)
Optional Accessories
E-4
Part 1128350_02
E 2020 Nordson Corporation
Light Tower
The light tower is installed on the LVC board in the E-Box e lectrical
enclosure.

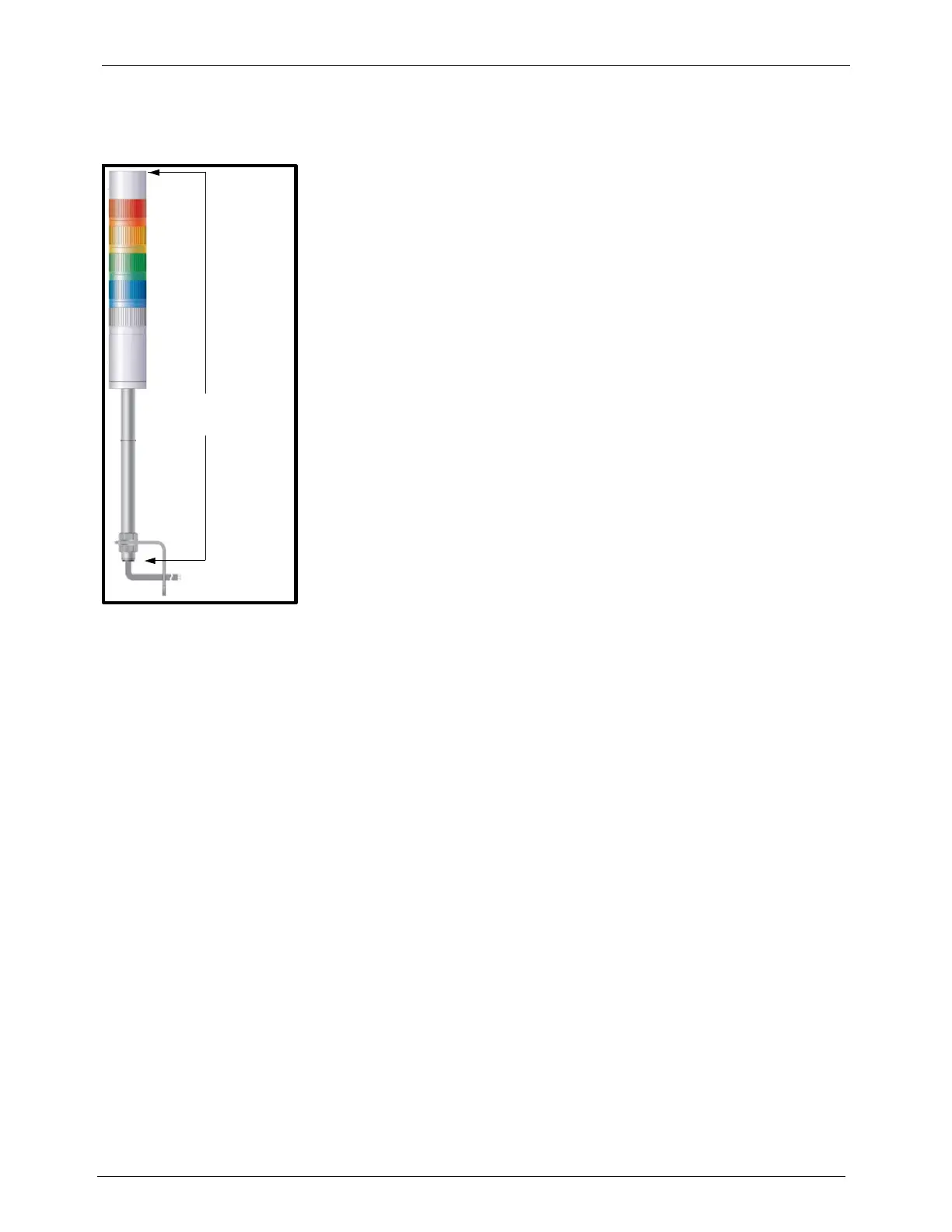

The light tower colors indicate the system operating conditions. See the
figure on the left for the light tower dimensions.
NOTE: The light tower board must be first installed on the LVC board. If
there are other boards installed on the LVC board, temporarily uninstall them.
Then mount the light tower board and remount the other boards.
CAUTION!
If there are multiple boards, make sure to install one board at a
time. After installing the first board, power up the melter for 5 minutes before
installing the next board. Failure to follow this procedure may result in loss of
nameplate data (see Melter Identification in Description [Section 2]) and
disabled licenses.
NOTE: If there is a remote touchscreen user interface, connect it directly
onto TB1 on the light tower board.
Refer to the PB Flex Light Tower PCA Kit instruction sheet included in the
service kit for installation details.
