Parts

8-19

Part 1128350_02

E 2020 Nordson Corporation

Additional Tank Components

Item Part

Description Quantity Kit P/N

— — TANK —

------ S TANK, MACHINED 1

------ S SEALANT,RTV,RED,10.3 OZ. TUBE 1

1127373 S WASHER,.218"IDX.438"ODX.125"THK,SILICONE 2

1127245 S INSULATOR,CERAMIC,.218 IDX.430 ODX.375LG 2

1127306 S WASHER,FLT,.203X.406X.040,ZN 4

984120 S NUT,HEX,MACH,#10-32,STL,ZN,14448-FA 4

64X

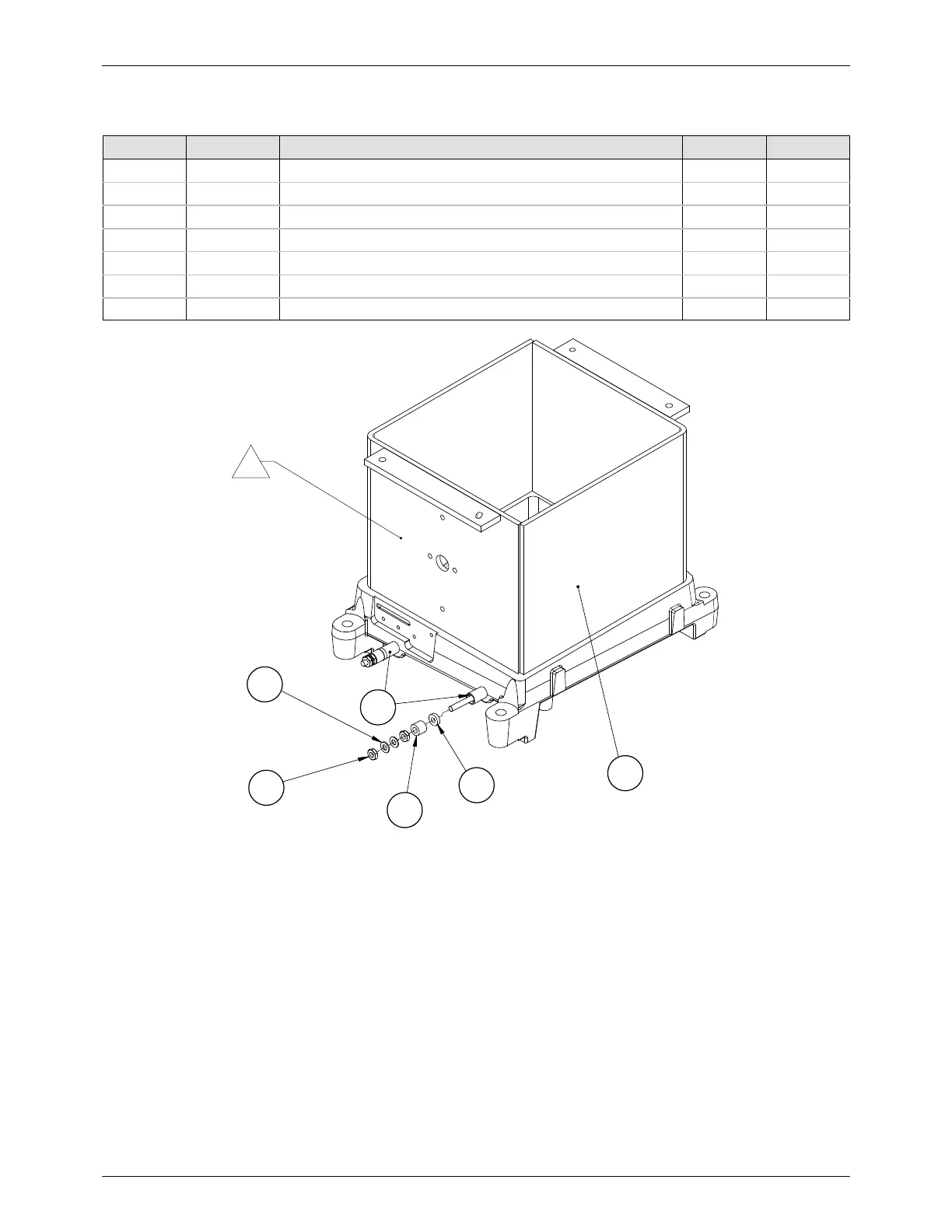

Figure 8-11 Coated tank parts
