Connecting Incoming Power
WARNING! Risk of electrical shock or short circuit. Use the cable clamp that
is provided or use electrical conduit to protect the power cable from the sharp
edge of the conduit knockout.
1. Use one of the following methods to connect the incoming power:
a. If the incoming power to the melter is coming from below the chassis,
remove the 35 mm conduit knockout from the sub-base plate. See
item a in Figure 3-10.
b. If incoming power is from the E-Box side, remove existing AC power
plate and then install plate adapter (included in the ship-with kit). See
item b in Figure 3-10.
a
b

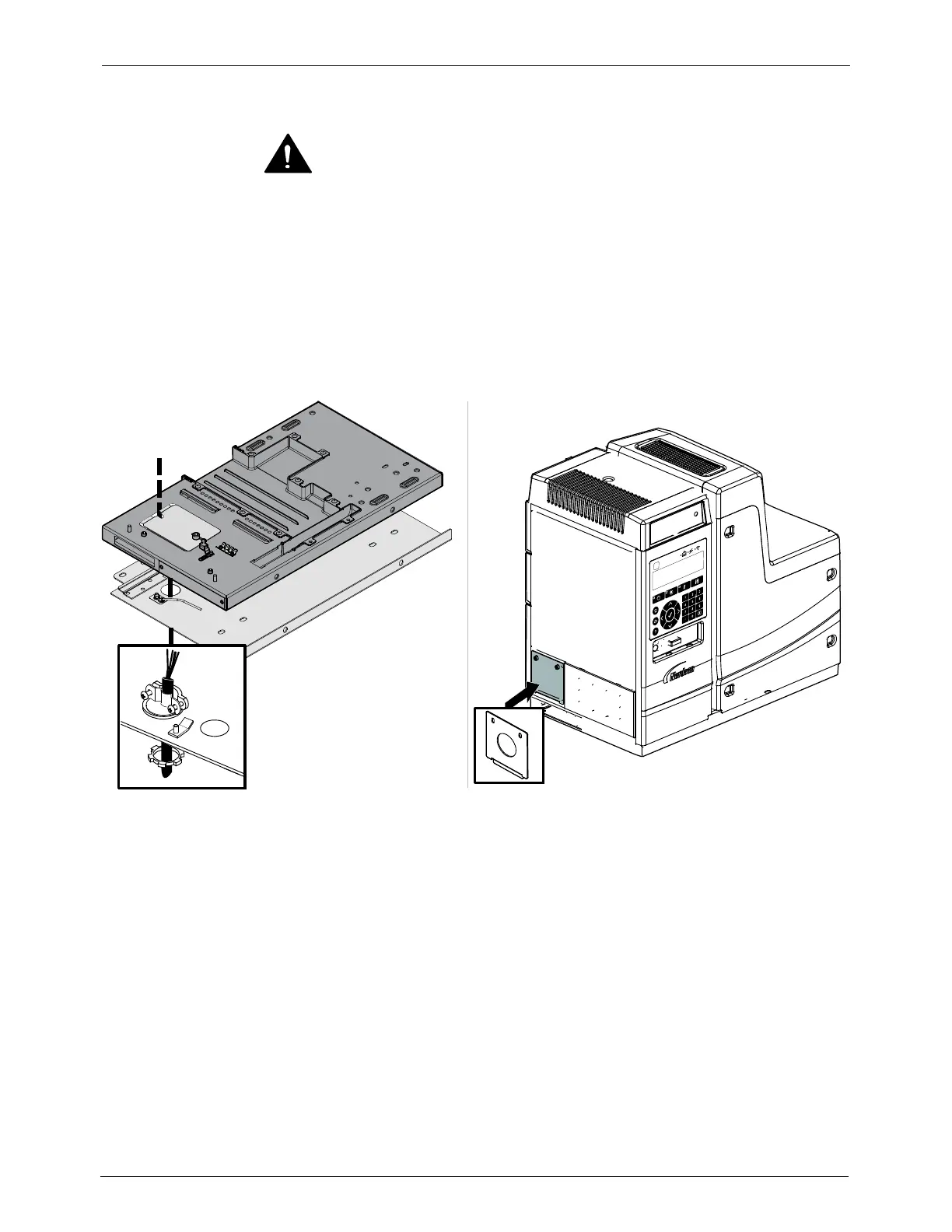

Figure 3-10 Routing incoming power
2. Install the cable clamp from the ship-with kit in the sub-base or adapter
plate.
3. Route the power cable through the cable clamp. Tighten the cable clamp.
