SP Pump Diagnostics and Repair

B-31

Part 1128350_02

E 2020 Nordson Corporation

2623

2624

SECTION A-A

DETAIL B

SCALE 2 : 1

NOTES

1TIGHTENTO25-31IN-LBS

TIGHTEN TO 72 - 87 IN-LBS

TIGHTEN TO 25 - 30 FT - LBS

TIGHTEN TO 14 - 17 FT -LBS

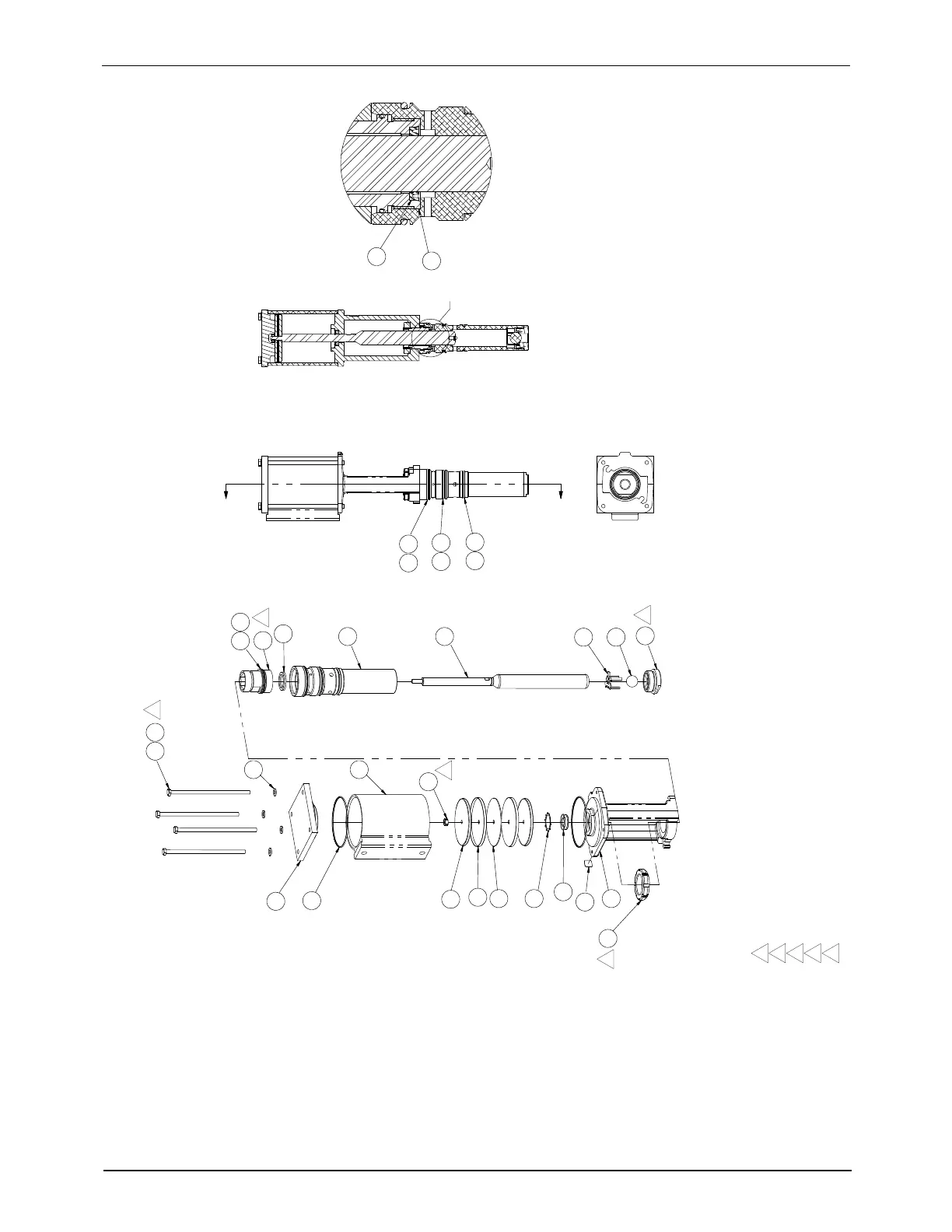

Figure B-10 High output single acting pump assembly parts drawing
