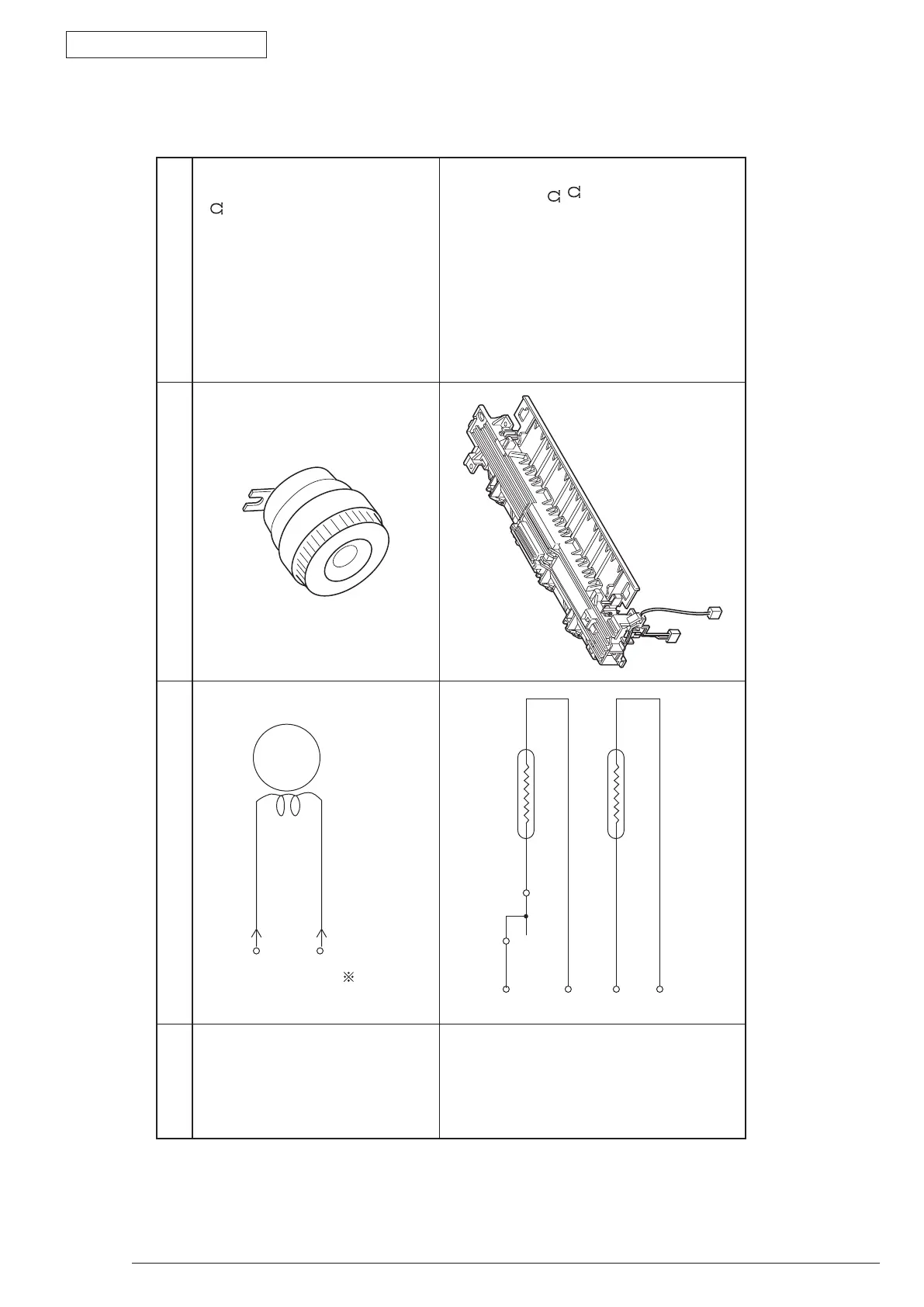

7.3 Resistance value
Unit Circuit Diagram Part Diagram Resistance Value
Clutch
(Hopping)
(Regist)
(MP Tray)
Cable Cable
Cable Color : Black (Hopping) : Blue (Regist) : Yellow (MP Tray)
C
1 2
Between 1 to 2 pin 192
Fuser Unit
Assy
1 2 3 4
Thermostat
Heater
Thermistor
1Between 1 to 2 pin: 1.6 Between 3 to 4 pin: 360K At the ambient temperature (25ºC)
