Oki B430 User Manual

Appendix C Maintenance Manual for Second Tray unit
43984801TH Rev.1
150 /
Oki Data CONFIDENTIAL
3.3.1 Roller-Pick-Up, Roller-Feed-Now
(1)Remove Cassette-Assy.

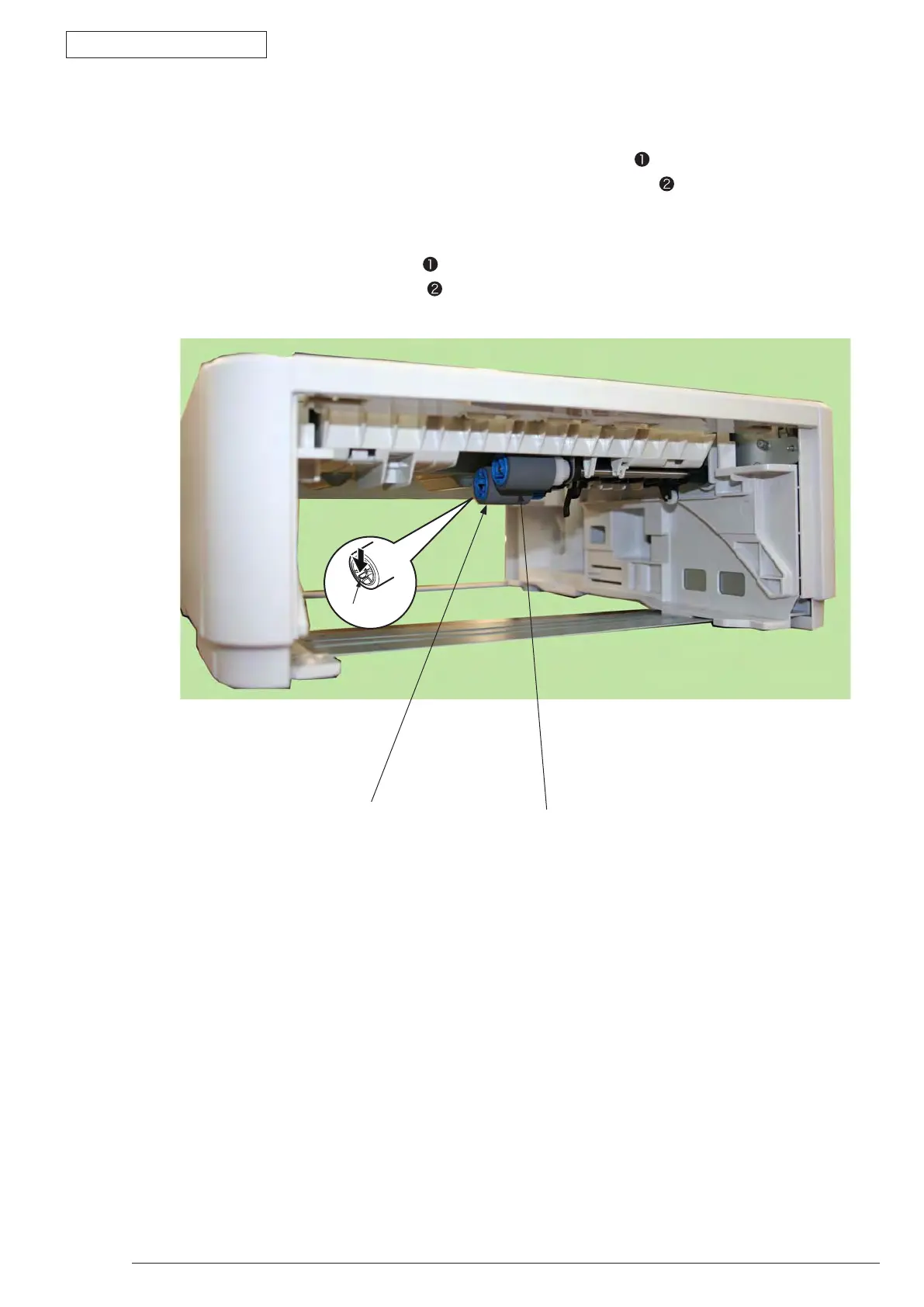

(2)Push the claw in the direction of the arrow to remove Roller-Pick-Up
.
(3)Push the claw in the direction of the arrow to remove Roller-Feed-NOW
.
(4)As for reinstalling, take the opposite sequence to removal sequence.
(Precautions on reinstalling)
1
. W
hen reinstalling Roller-Pick-Up , push it until it clicks.
2. When installing Roller-Feed-Now
, push it until it clicks.
Claw
Roller-Pick-Up
Roller-Feed-NOW
