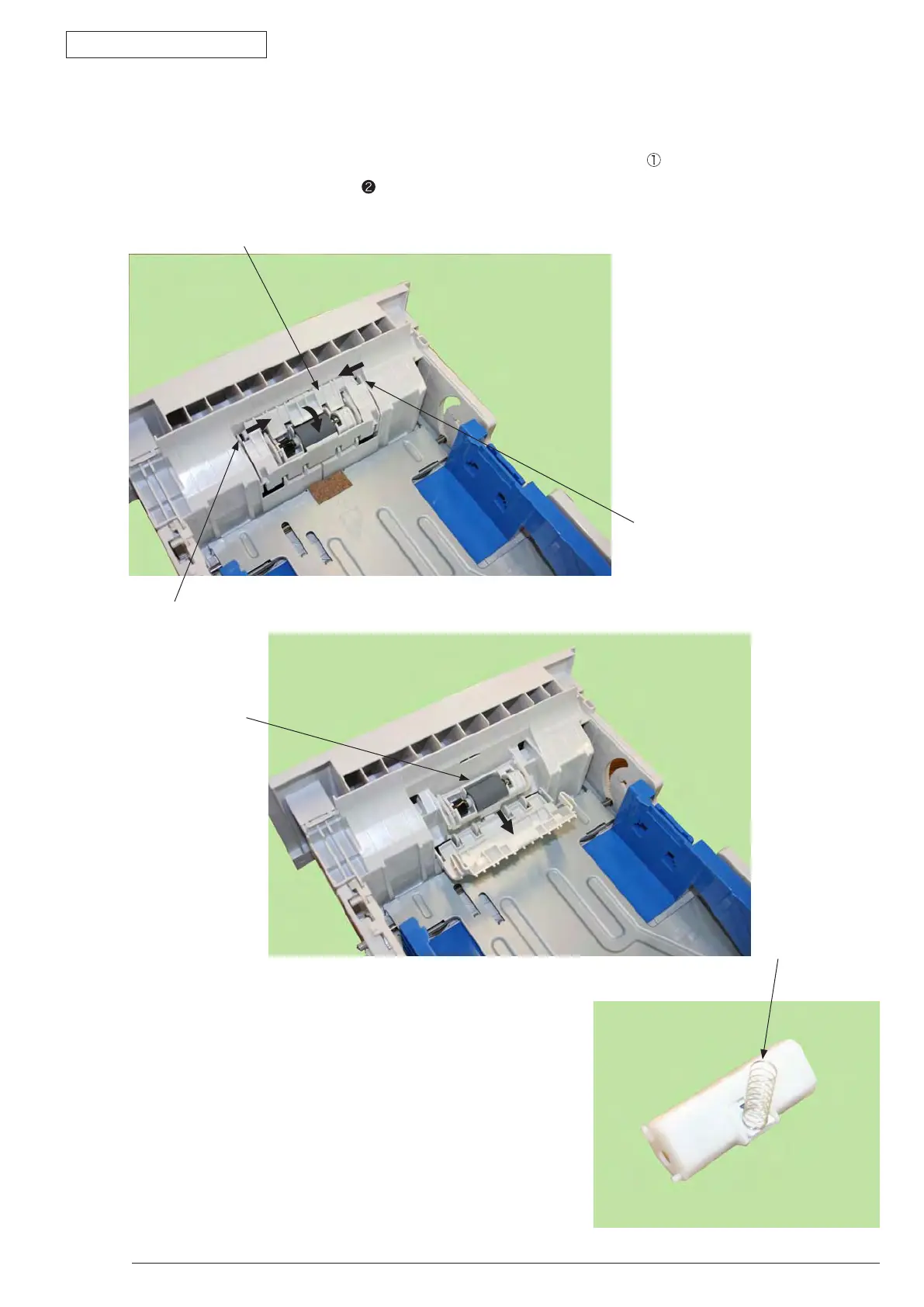

3.3.7 Frame-Assy-Retard, Spring-Retard
(1) Detach Cassette-Assy.
(2) Push two claws in the direction of the arrow to remove Retard-Cover
.
(3) Push Frame-Assy Retard
in the direction of the arrow. (Spring-Retard
❸
is also removed together.)
(4) As for reinstalling, take the opposite sequence to removal sequence.
Claw
①
Claw
❷
❸
