3. Parts replacement

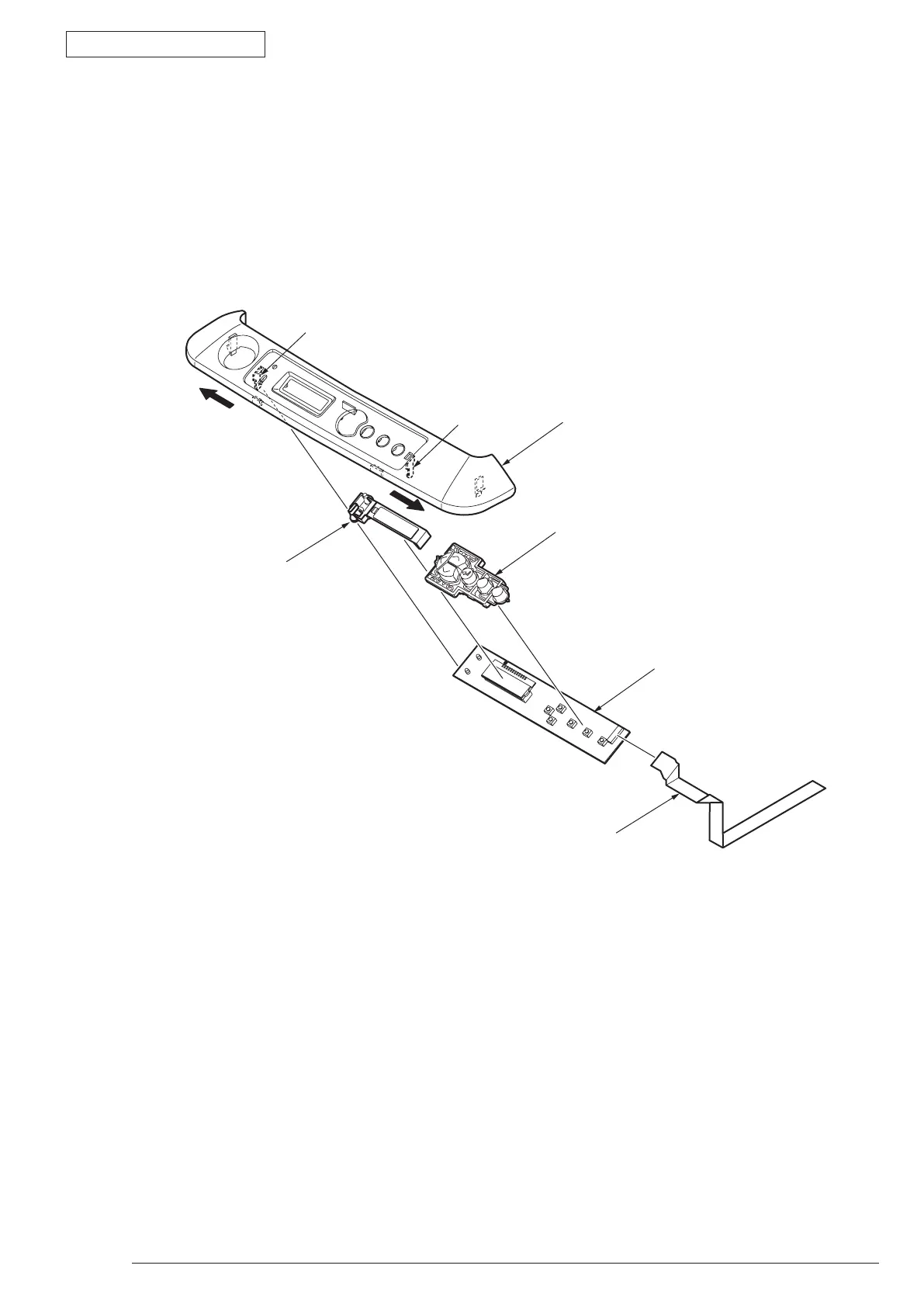

3.3.8 Ope-Board
(1) Remove OPE Cover-Assy. (Refer to 3.3.7)
(2) Remove Ope-Board
①
from Cover-OPE by pulling the claw as the arrow direction.
(3) U
nplug FFC cable
②
from Ope-Board
①
.
(4) R
emove Button-KEY
③
and Lens-LCD
④
from Ope-Board
①
.
(5) I
nstalling is performed by the reverse procedure with removing.
Claw
Claw
Cover-OPE
④
③
①
②
