3. Parts replacement

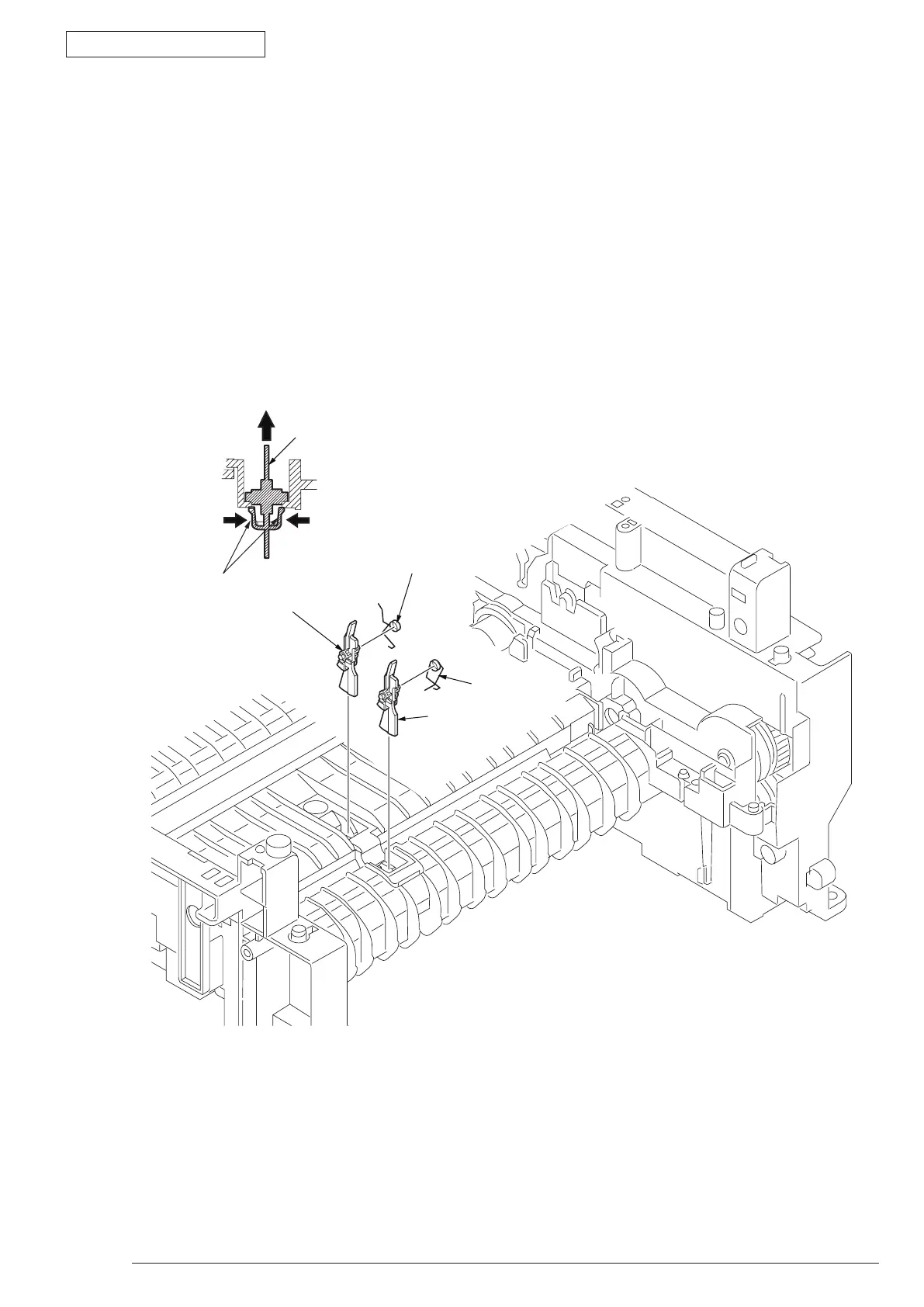

3.3.21 Lever-In-Sensor
(1) Open Rear-Cover-Assy.
(2) Open Stacker-Cover-Assy.
(3) Remove Frame-Assy-Lower. (Refer to 3.3.16)
(4) Remove the 2 Lever-In-Sensor (Entrance and Paper). Press the Clamp of
❶
, press Lever-In-Sensor
①
as up direction and then remove them. While remove Lever-In-Sensor
❶
, beware of not to loss or break
Spring-Sensor-In
❷ ,
Spring-Write-Sensor
❸ .
(5) I
nstalling is performed by the inverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
❶
❶
❸
❷
❶
(Paper)
(Entrance)
Clamp
