43984801TH Rev.1
59 /
Oki Data CONFIDENTIAL
3. Parts replacement

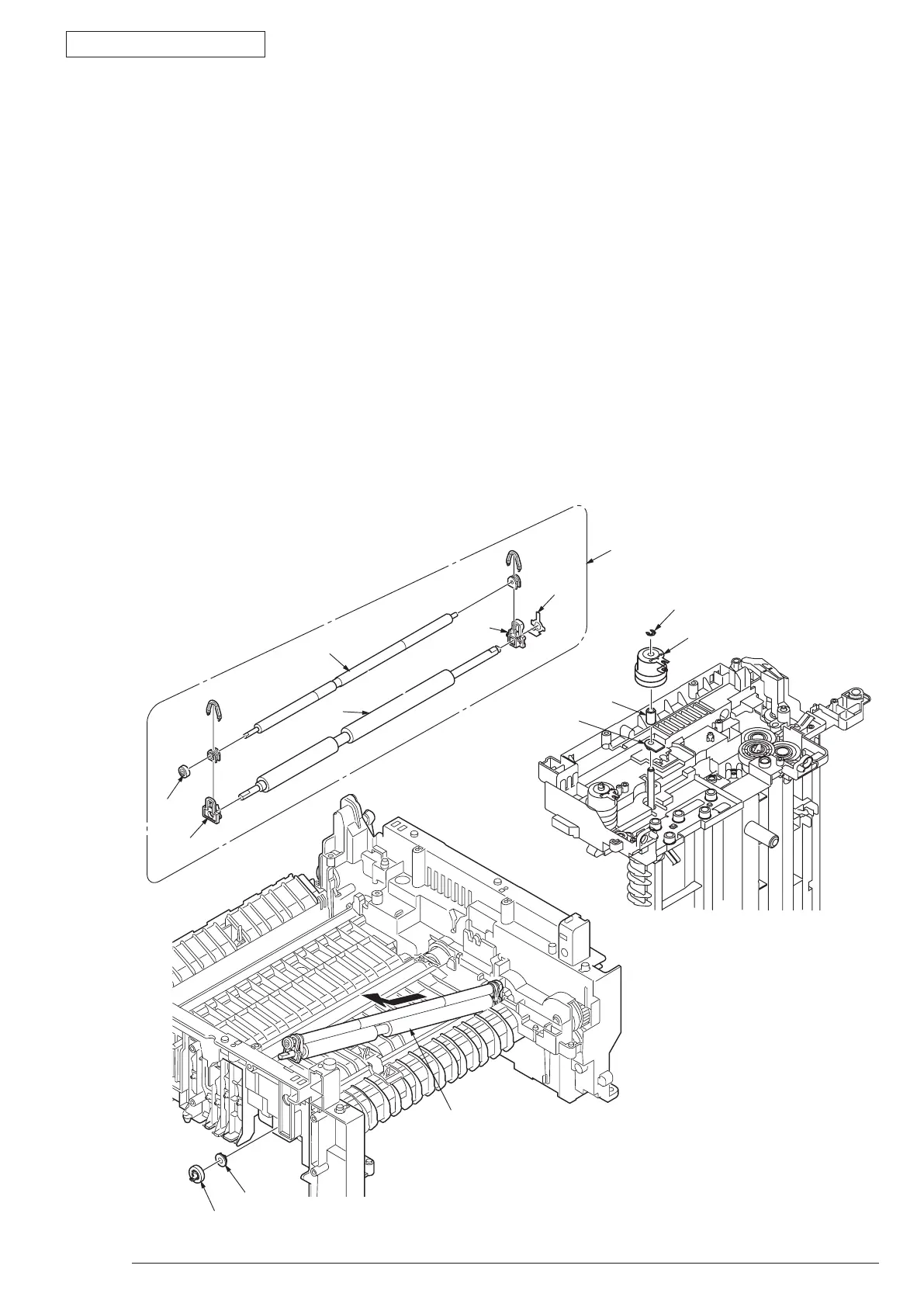

3.3.20 Roller-Resist
(1) Open Rear-Cover-Assy.
(2) Open Stacker-Cover-Assy.
(3) Remove Frame-Assy-Lower. (Refer to 3.3.16)
(4) Remove Plate-Bracket-Motor. (Refer to 3.3.18)
(5) Remove the E ring
①
. Remove the Gear-Assy-Clutch
❷
, Spacer-Clutch
③
and Bearing-R
❹
.
(6) R
emove the lock of Gear-Resist
⑤
. Remove Gear-Resist
⑤
, Bearing-Resist-Assy
❻．
(7) L
ift up the left side of Roller-Resist-Assy
⑦
and remove it at the arrow direction.
(8) R
emove the lock of Gear-Pressure
⑧
. Remove Gear-Pressure
⑧
from Roller-Pressure
⑨．
(9) R
emove Plate-Contact-PA
⑪
and Holder-Resist from Roller-Resist
❿ .
Rem
ove Holder-Resist
⑬ .
(10
) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
To Next Page
