43984801TH Rev.1

46 /

Oki Data CONFIDENTIAL

3. Parts replacement

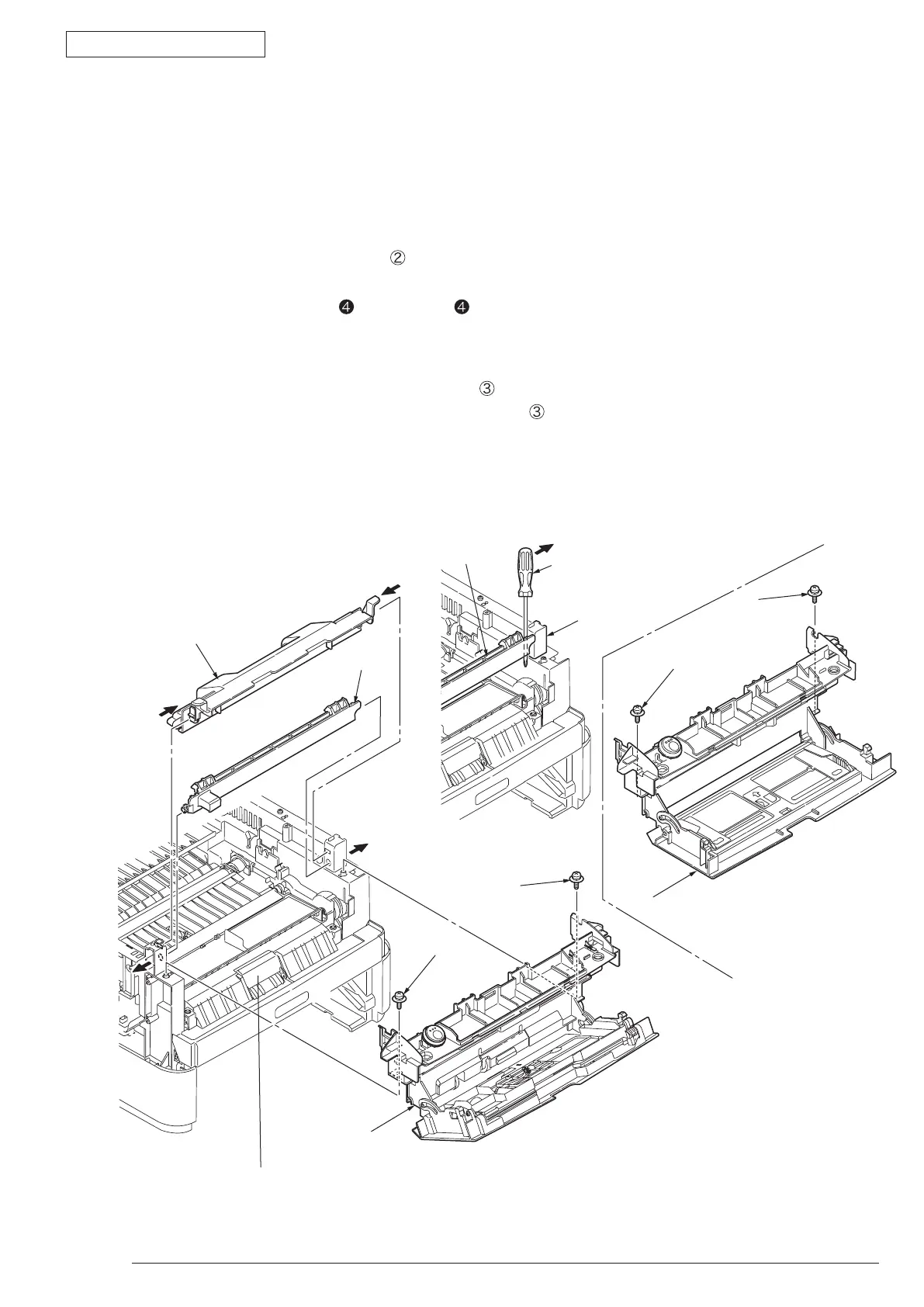

3.3.9 MPT-Assy (In case of B410dn, it is Manual-Assy)

(1) Open Rear-Cover-Assy.

(2) Open Stacker-Cover-Assy.

(3) Remove Cover-Side-R and Cover-Side-L. (Refer to 3.3.3/3.3.4)

(4) Remove OPE Cover-Assy. (Refer to 3.3.7)

(5) Remove the clamp of claw by pushing by arrow A direction, and then remove Cover-Lever-Lock

①

(6) R

emove the 2 screws (Black)

(7) Open the Frame-Assy-Lower by arrow B direction, and then remove Lever-Lock-Top

③

(8) H

olding up MPT-Assy

(Manual-Assy ) and remove it.

(9) Installing is performed by the inverse procedure with removing.

Driver

Pay attention not to let Separating- Pad- Assy pop out to

your front side while installing MPT-Assy.

Frame-Assy-Lower

❹

❹ʼ

②

③

①

③

Note! While removing the Lever-Lock-Top , it is easy to remove it by inserting the driver between

the Frame-Assy-Lower and Lever-Lock-Top and press the driver by Arrow C direction.

(Note on removing / installing)

1. B

eware of not to touch the DC motor inattentively (Do not rotate motor).
