43984801TH Rev.1
48 /
Oki Data CONFIDENTIAL
3. Parts replacement
3.3.11 Roller-Assy-Feed
(1) Open Rear-Cover-Assy.
(2) Open Stacker-Cover-Assy.
(3) Remove Cover-Side-R and Cover-Side-L. (Refer to 3.3.3/3.3.4)
(4) Remove OPE Cover-Assy. (Refer to 3.3.7)
(5) Remove MPT-Assy. (Refer to 3.3.9)
(6) Remove Guide-Assy-Front. (Refer to 3.3.10)

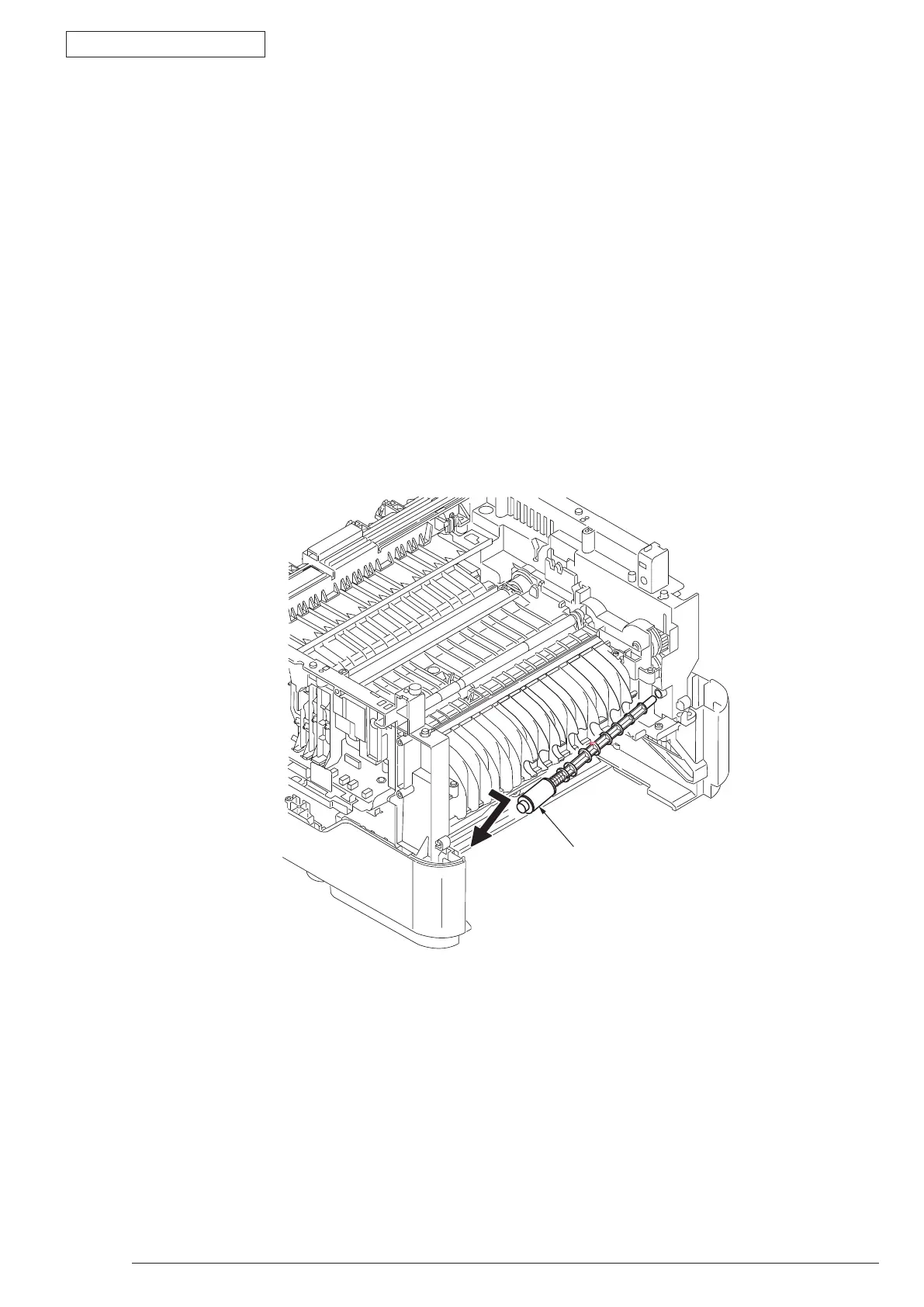

(7) Remove Roller-Assy-Feed
❶
by arrow direction.
(8) I
nstalling is performed by the inverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
To Next Page
