43984801TH Rev.1

44 /

Oki Data CONFIDENTIAL

3. Parts replacement

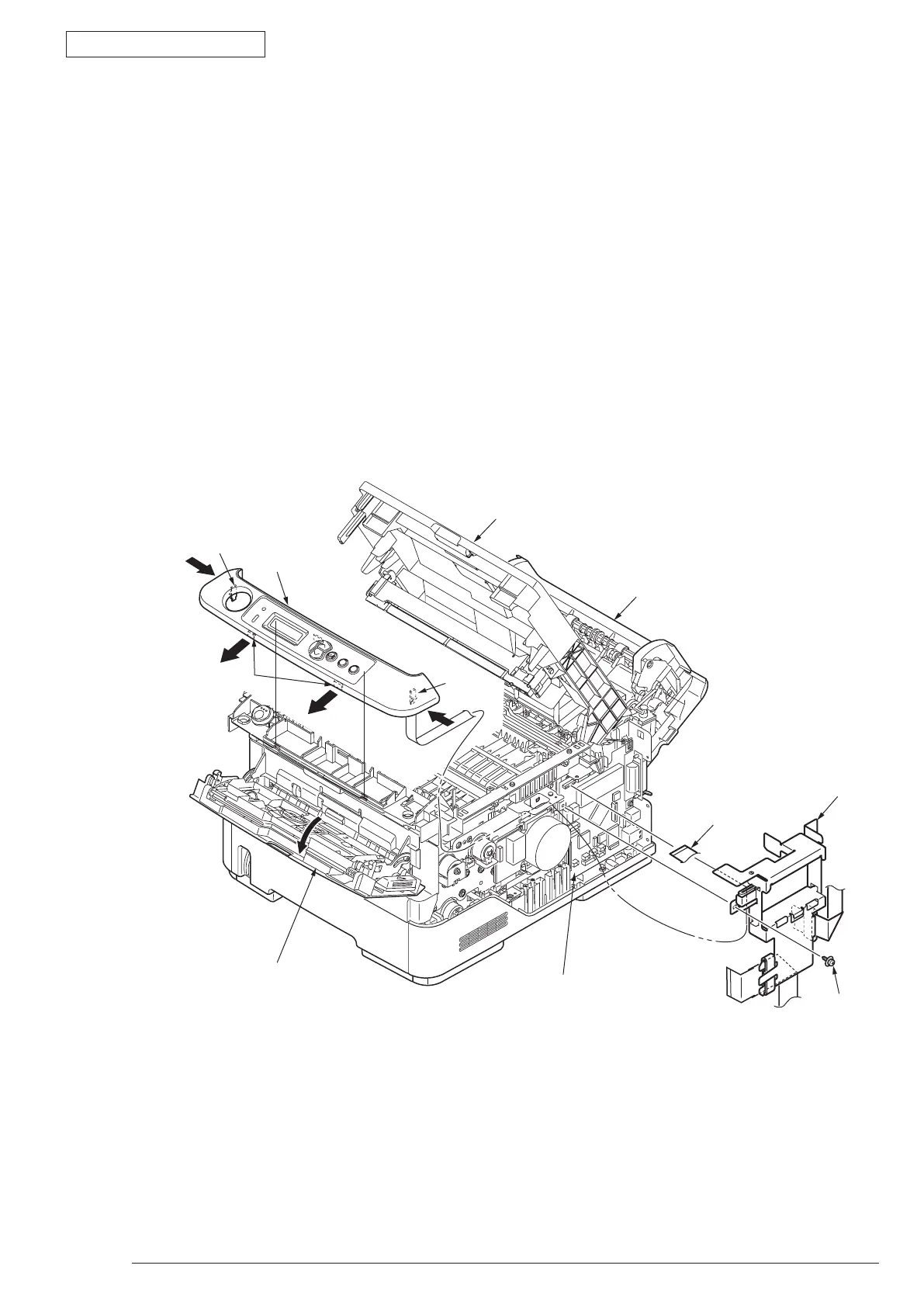

3.3.7 OPE Cover-Assy

(1) Open the Rear-Cover-Assy.

(2) Open the Stacker-Cover-Assy.

(3) Remove the Cover-Side-R and Cover –Side-L. (Refer to 3.3.3/3.3.4)

(4) Remove the Plate-Cover-Shield-CU. (Refer to 3.3.5(2))

(5) Remove the screw (Silver)

①

. Remove the Film-Core-Holder

②

(6) R

emove the FFC cable

③

from the CU board.

(7) O

pen the Cover-Assy-MPT.

(8) Pull Claw A by the arrow direction. Remove the clamp by pushing Claw B as the arrow direction.

Remove the OPE Cover-Assy

❹

(9) I

nstalling is performed by the reverse procedure with removing.

(Note on removing / installing)

1. B

eware of not to touch the DC motor inattentively (Do not rotate motor).

①

②

③

CU board

Stacker-Cover-Assy

Rear-Cover-Assy

Cover-Assy-MPT

❹

Claw A

Claw B
