43984801TH Rev.1
57 /
Oki Data CONFIDENTIAL
3. Parts replacement
3.3.18 Plate-Bracket-Motor
(1) Open Rear-Cover-Assy.
(2) Open Stacker-Cover-Assy.
(3) Remove Motor-DC-Main. (Refer to 3.3.6)
(4) Remove Frame-Assy-Lower. (Refer to 3.3.16)

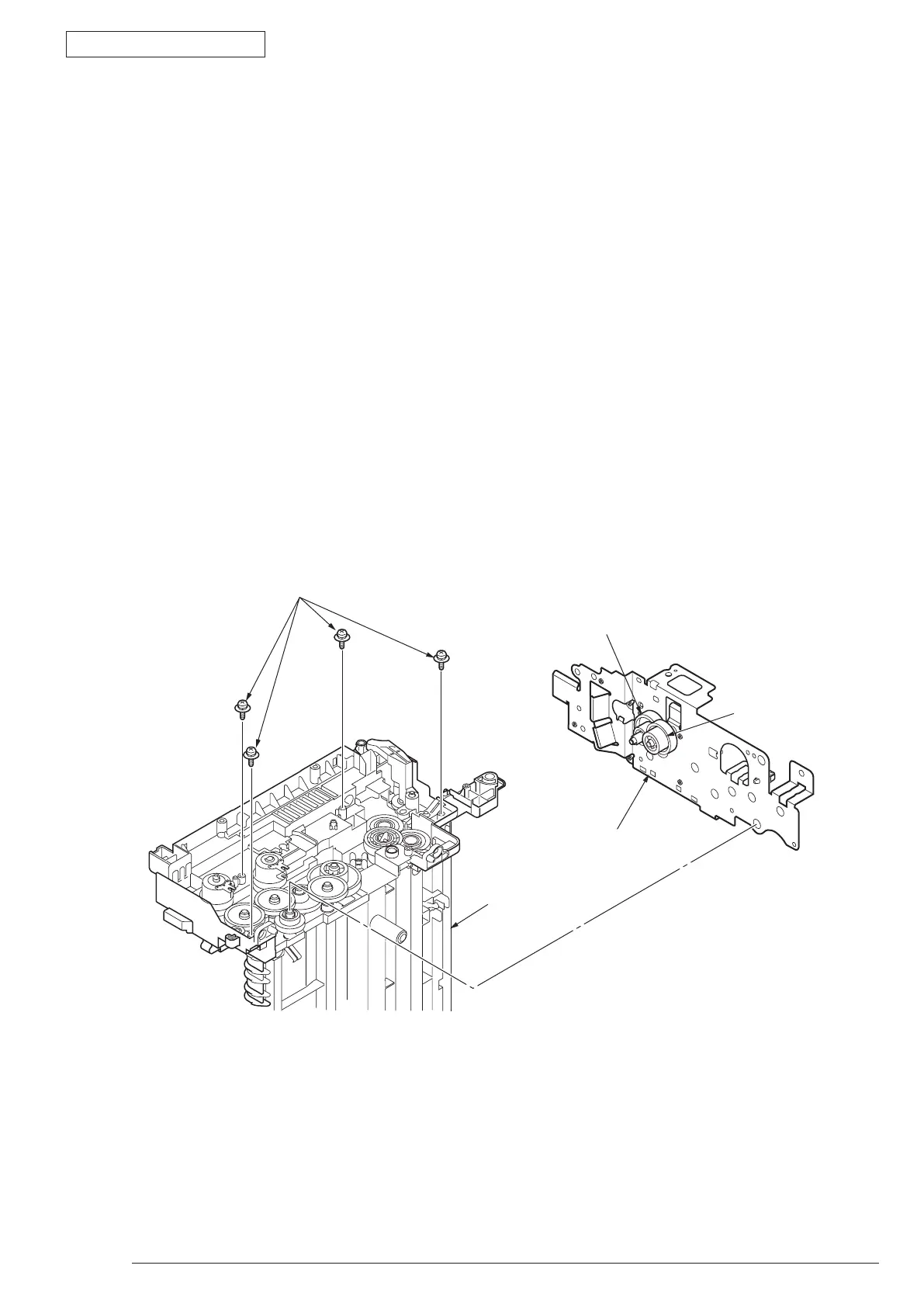

(5) Assemble Frame-Assy-Lower as the diagram.
(6) Remove the 4 screws (Black)
①
. Remove Plate-Bracket-Motor
②
.
(7) I
nstalling is performed by the inverse procedure with removing.
(Note on removing / installing)
1. B
eware of not to touch the DC motor inattentively (Do not rotate motor).
2. W
hile installing beware of not to tuck Cable between Frame-Assy-Lower and Plate-Bracket-Motor.
3. B
eware of not to drop the gear or scratch the surface of gear.
4. B
ecause Gear-Idle-Drum-Z24-48 and Gear-Idle-Drum-Z27-82 are high precision gear, beware of
handling them with particular care.
Frame-Assy-Lower
Gear-Idle-Drum-Z27-82
Gear-Idle-Drum-Z24-48
①
②
To Next Page
